Hardware R Series

The R Series bridges video capture and motion tracking, combining high-resolution imaging with AI-powered recognition. Supporting synchronized reference video, marker-based and markerless tracking, and multi-device integration, it enables flexible, multi-modal data acquisition. Designed for both precision and versatility, the R Series supports applications across scientific research, sports performance, rehabilitation, and human motion analysis.

Consult >

2048×1544

Maximum Resolution

663fps

Maximum Frame Rate

83°×72°

Maximum Field of View

Advantages

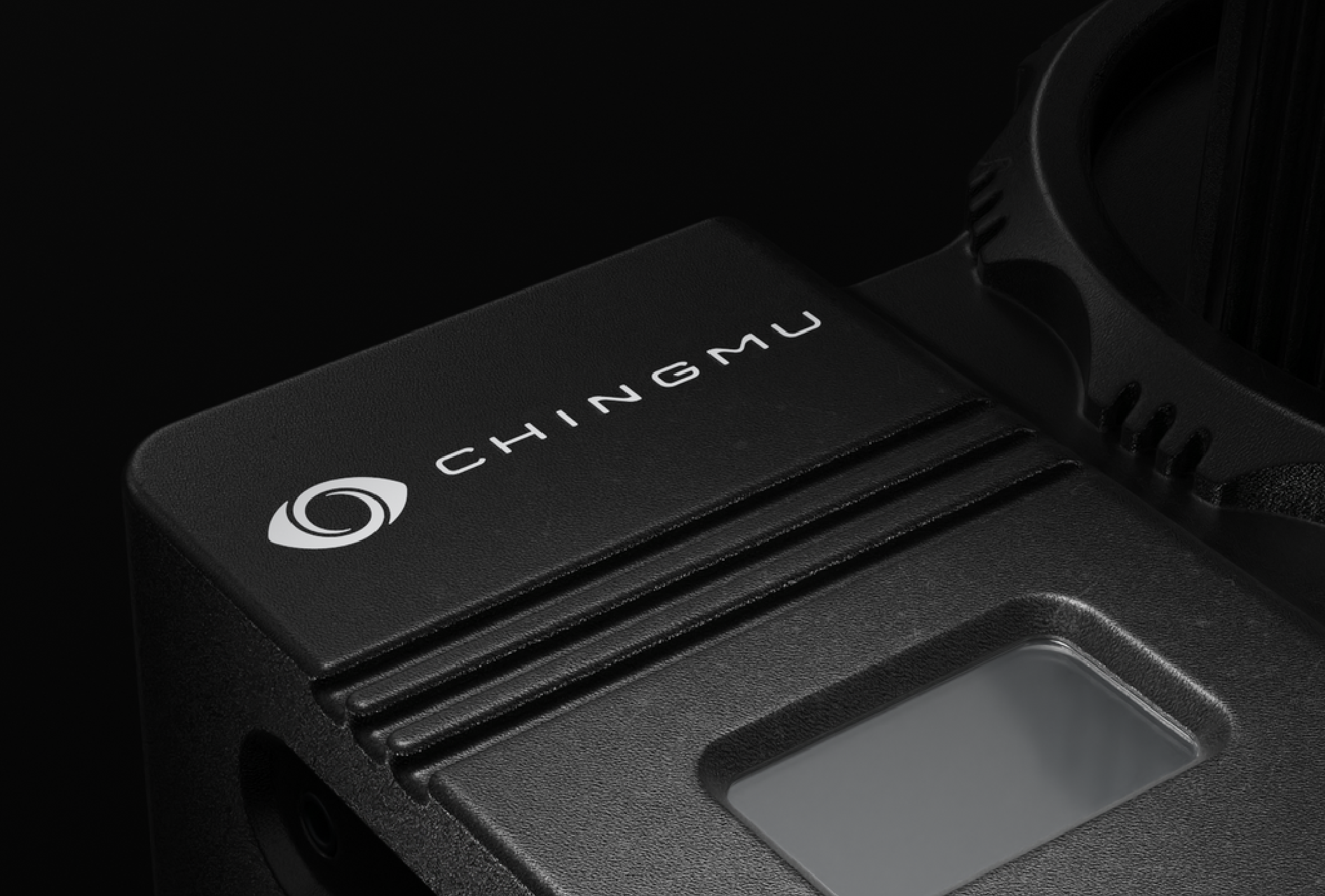

Lightweight Design

Multi-Dimensional Perception

Customizable Frame Rate

Dual-Mode Switching

Strong Compatibility

Product advantages

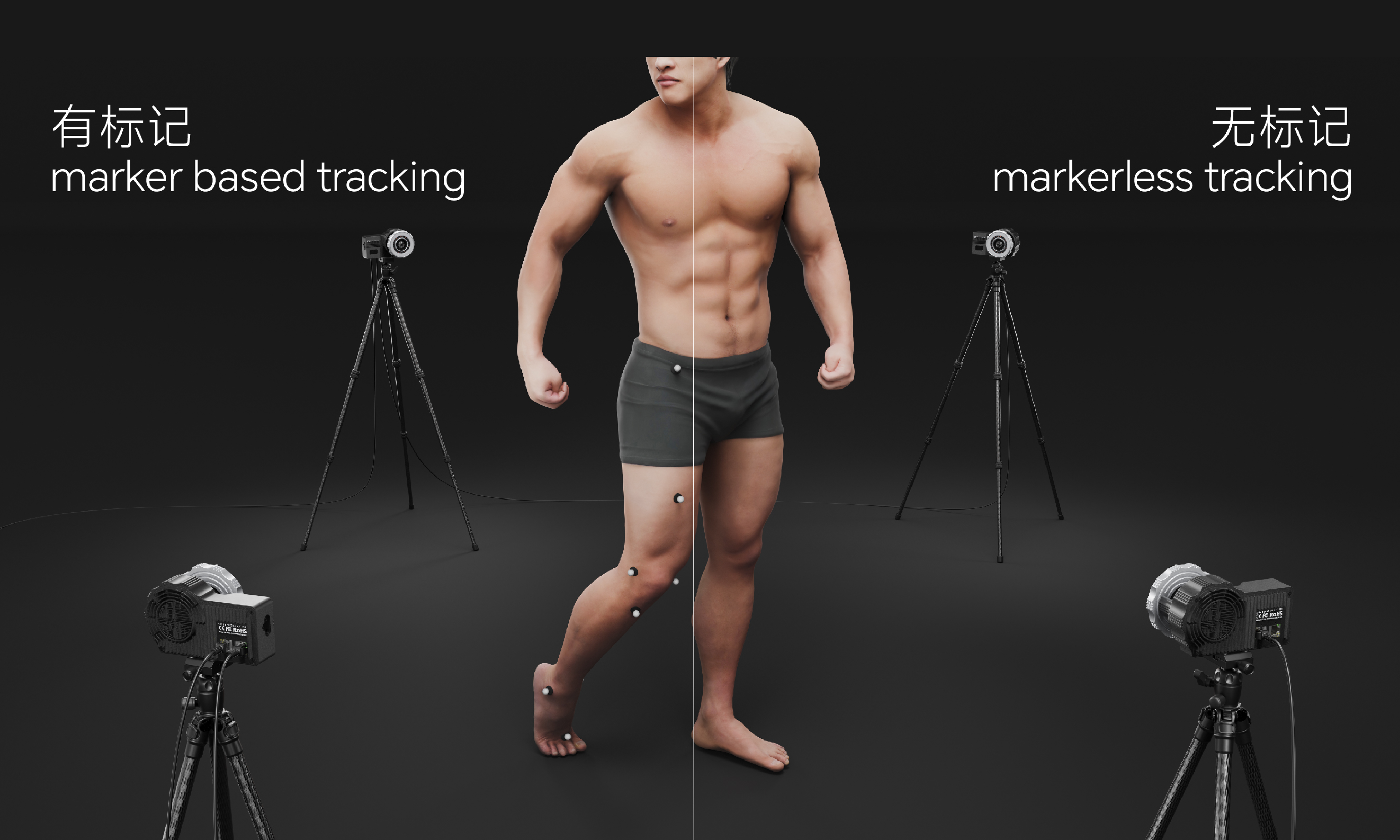

AI-Powered Markerless RecognitionEnable lightweight motion capture without markers. In combination with AI-based recognition software, the R Series supports markerless pose estimation, expanding flexibility for simplified capture setups and new application scenarios.

Consult >

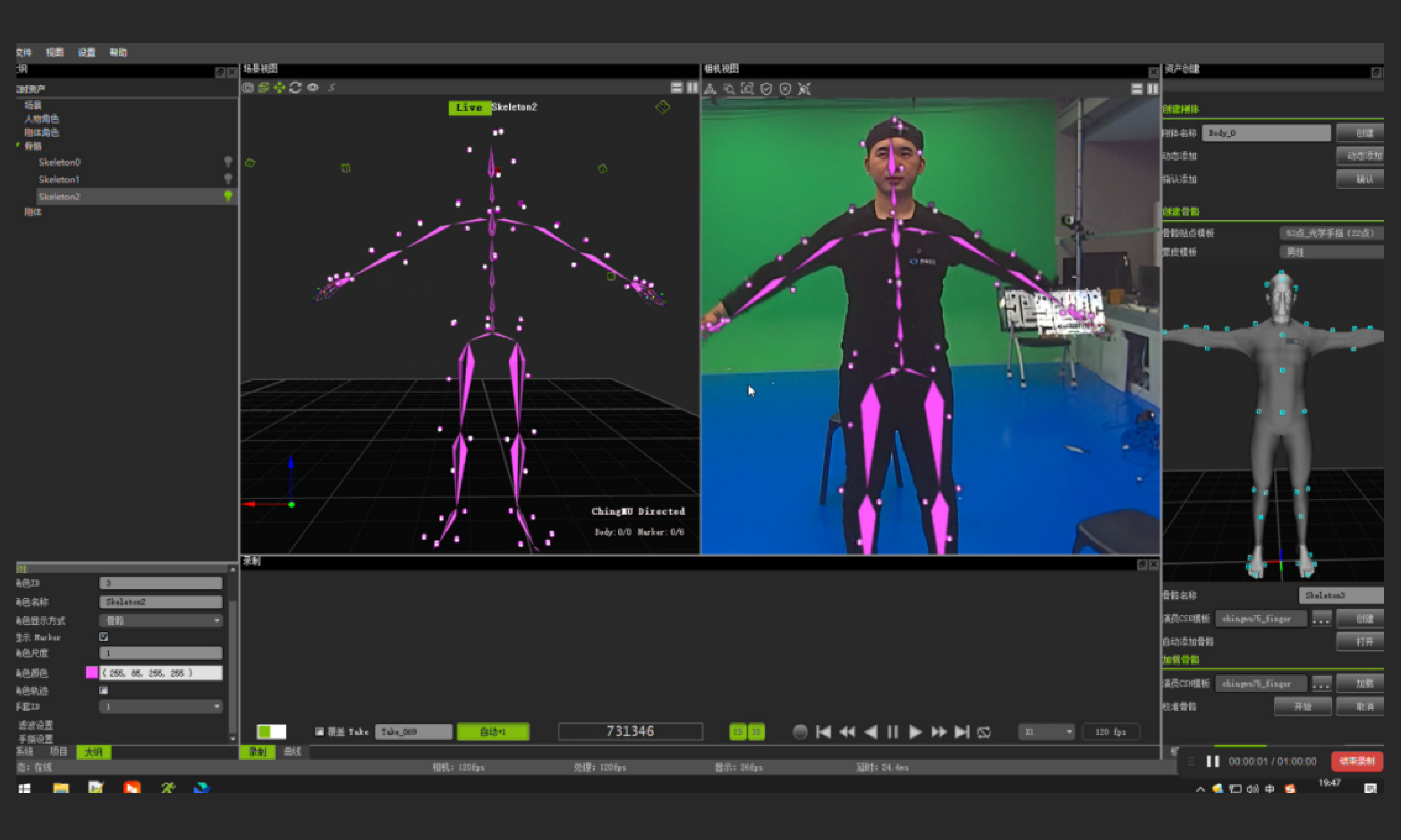

Synchronized Reference Video OutputEnhance analysis and visualization with synchronized video data. All models output video synchronized with motion capture data, supporting content playback, motion comparison, and data annotation — ideal for film production, motion analysis, and research documentation.

Consult >

2K High-Definition ImagingCapture sharp, true-to-life visual details. With a maximum resolution of 2048 × 1544, the system delivers crisp, high-fidelity imagery for accurate visual reference and analysis.

Consult >

Customizable Frame RateAdapt capture performance to diverse motion scenarios. The R3 supports full HD video at 160 fps or marker data at 216 fps. Leveraging windowing technology, frame rates can be flexibly adjusted across multiple modes — reaching up to 663 fps for capturing rapid and complex motion dynamics.

Consult >

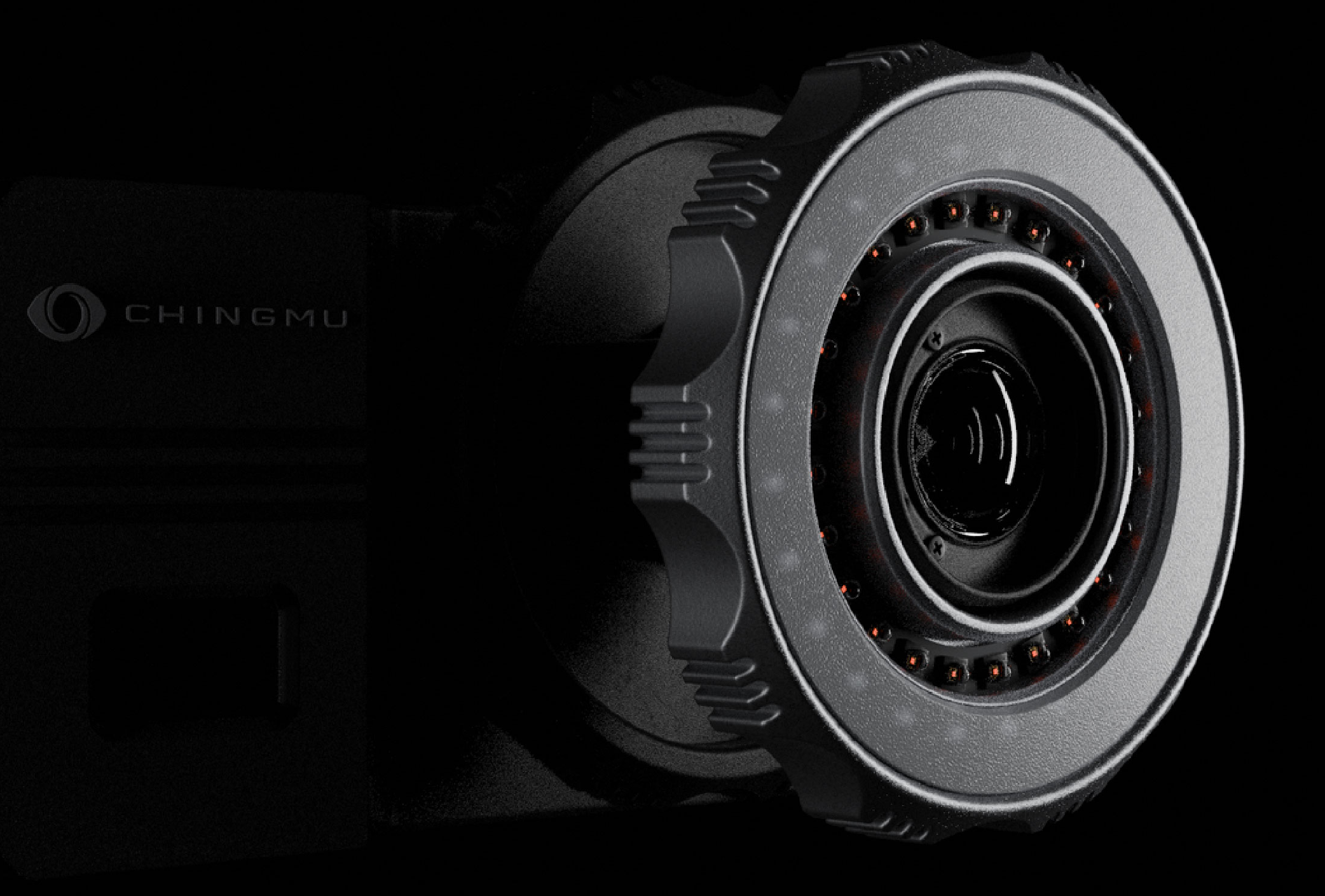

Infrared Motion Capture Integration (R3)Seamlessly bridge video and infrared tracking systems. The R3 features marker detection capability, enabling integration into infrared motion capture workflows for spatial marker reconstruction — enhancing overall system performance through hybrid tracking.

Consult >

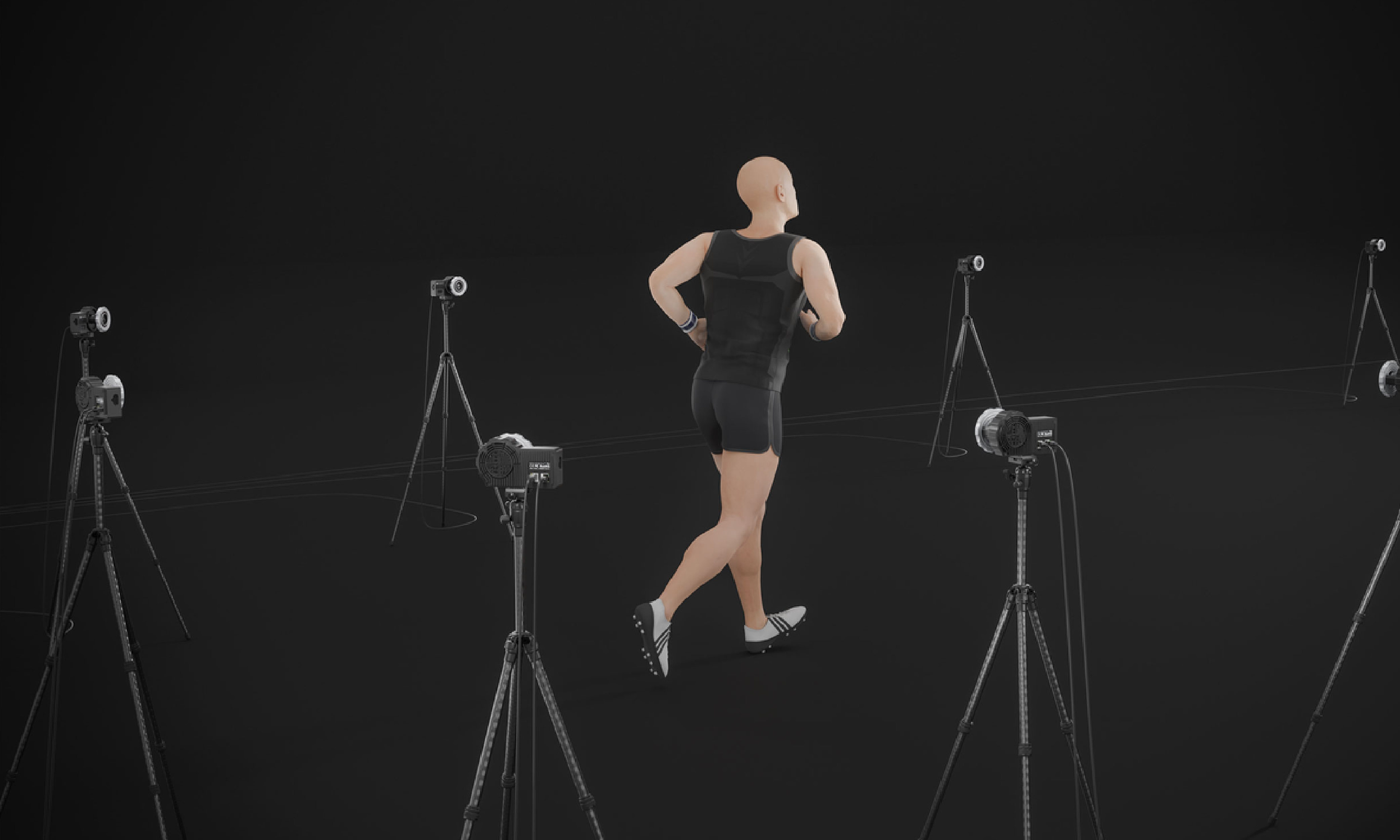

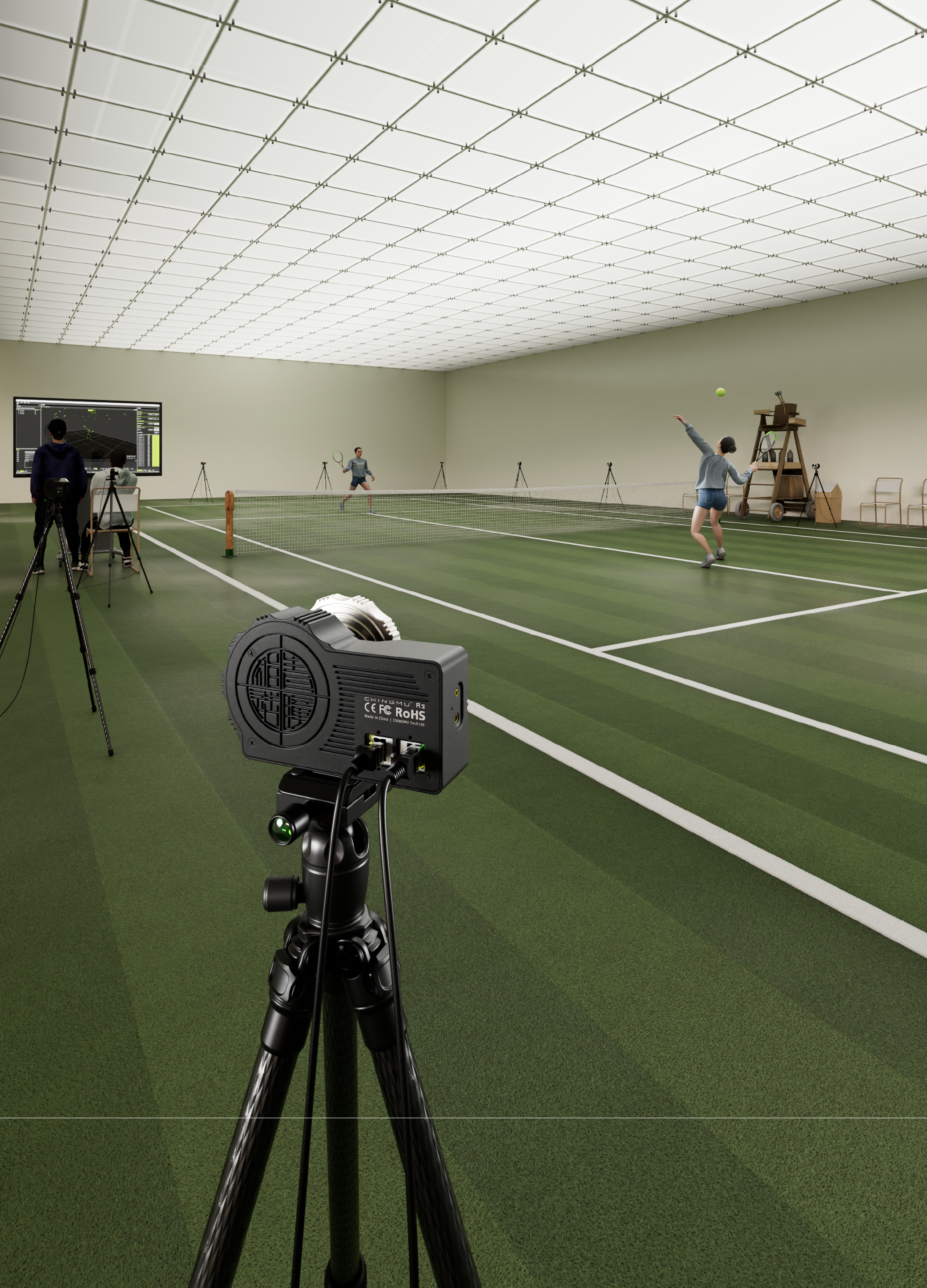

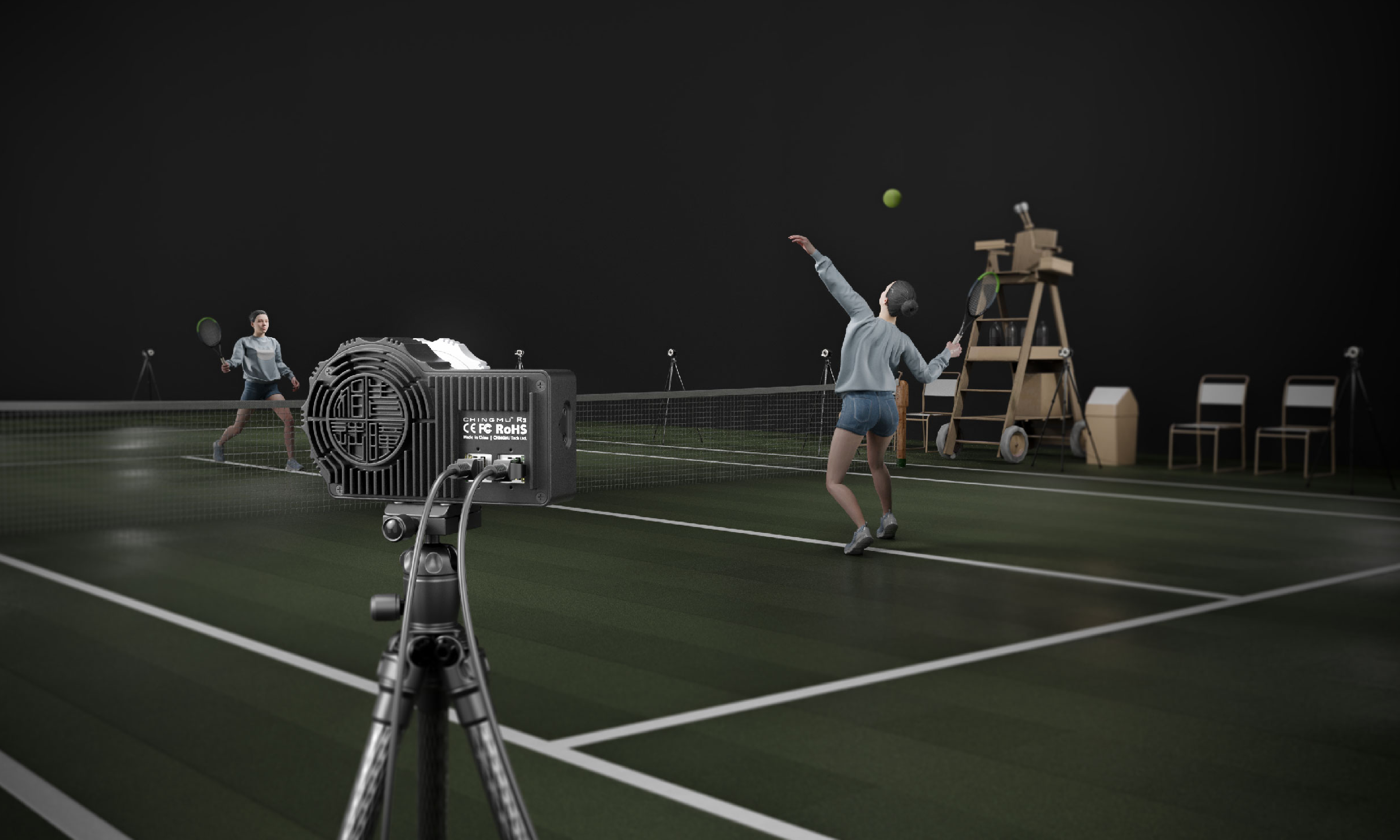

Multi-Angle Synchronized RecordingCapture complete motion data from every perspective. Supports simultaneous multi-camera recording from multiple viewpoints, ensuring comprehensive subject coverage and enabling detailed motion analysis across sports science, rehabilitation, and creative applications.

Consult >

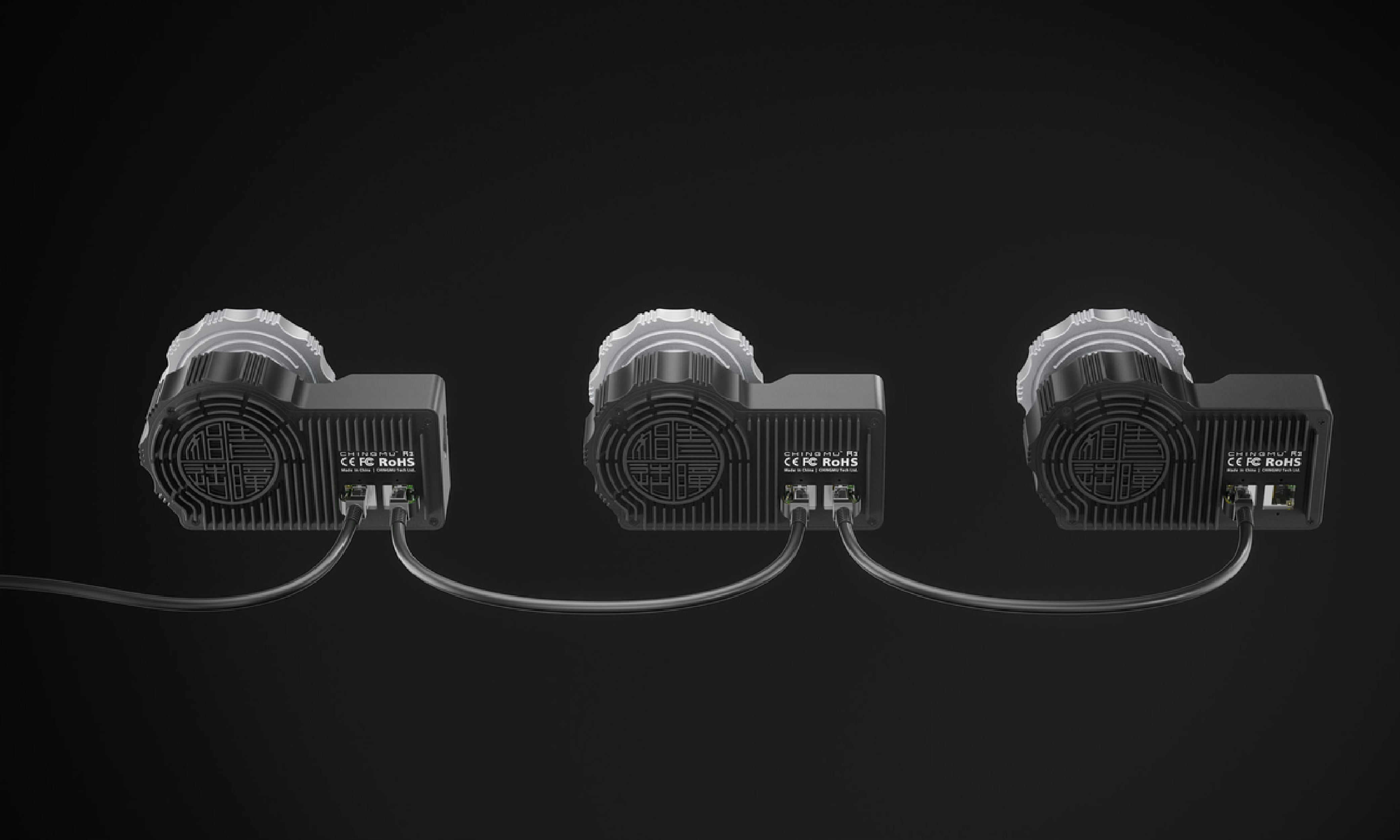

Flexible Deployment & Strong CompatibilityIntegrate effortlessly into existing systems. Supports PoE power delivery, dual-port networking, time synchronization, and cascaded deployment, enabling seamless integration into motion capture systems and broader sensor platforms.

Consult >

Tiered Product CoverageScalable solutions for diverse needs and budgets. From the high-performance R3 to the compact R1, the series addresses a wide range of technical requirements — from advanced research environments to educational and entry-level applications.

Consult >

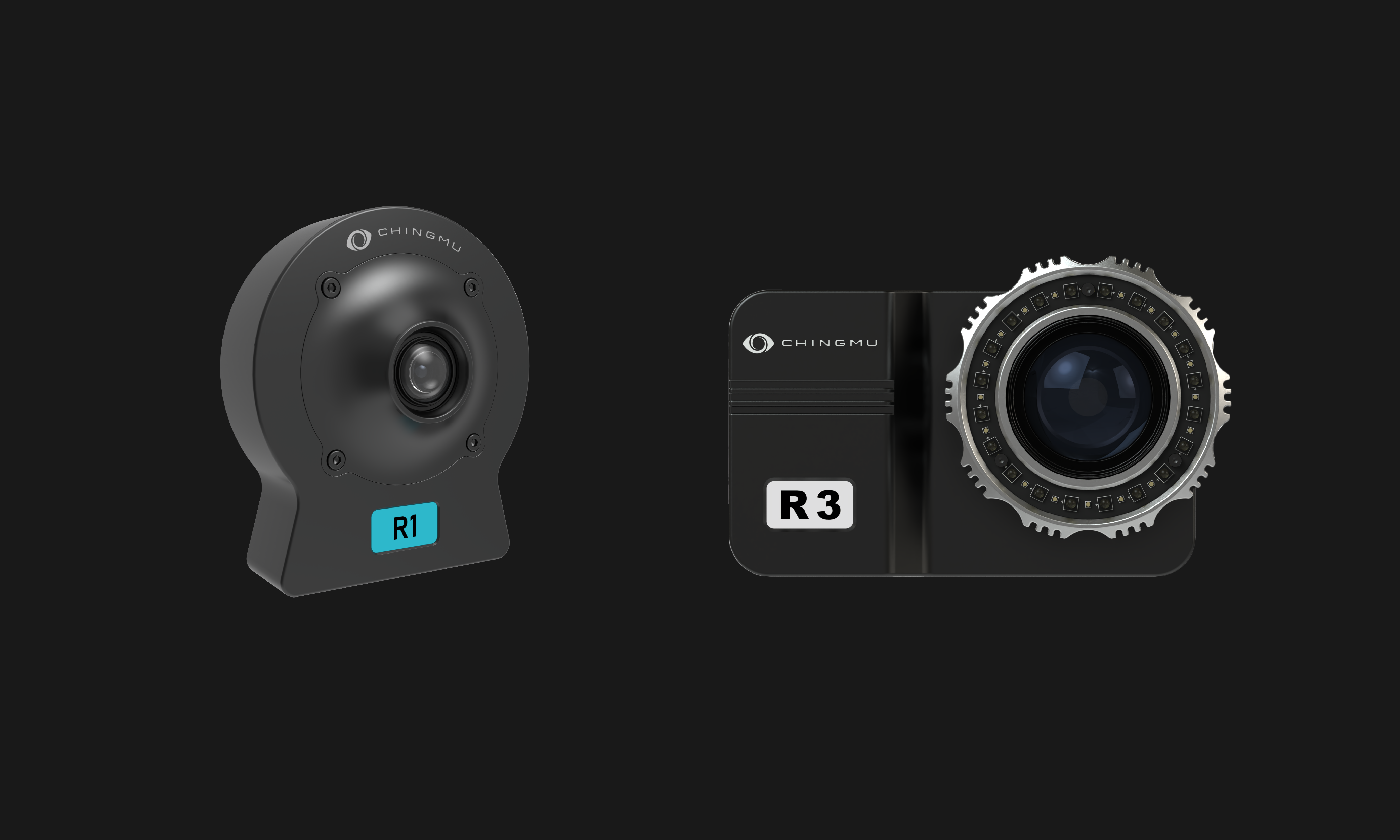

The series come together, offering more choices

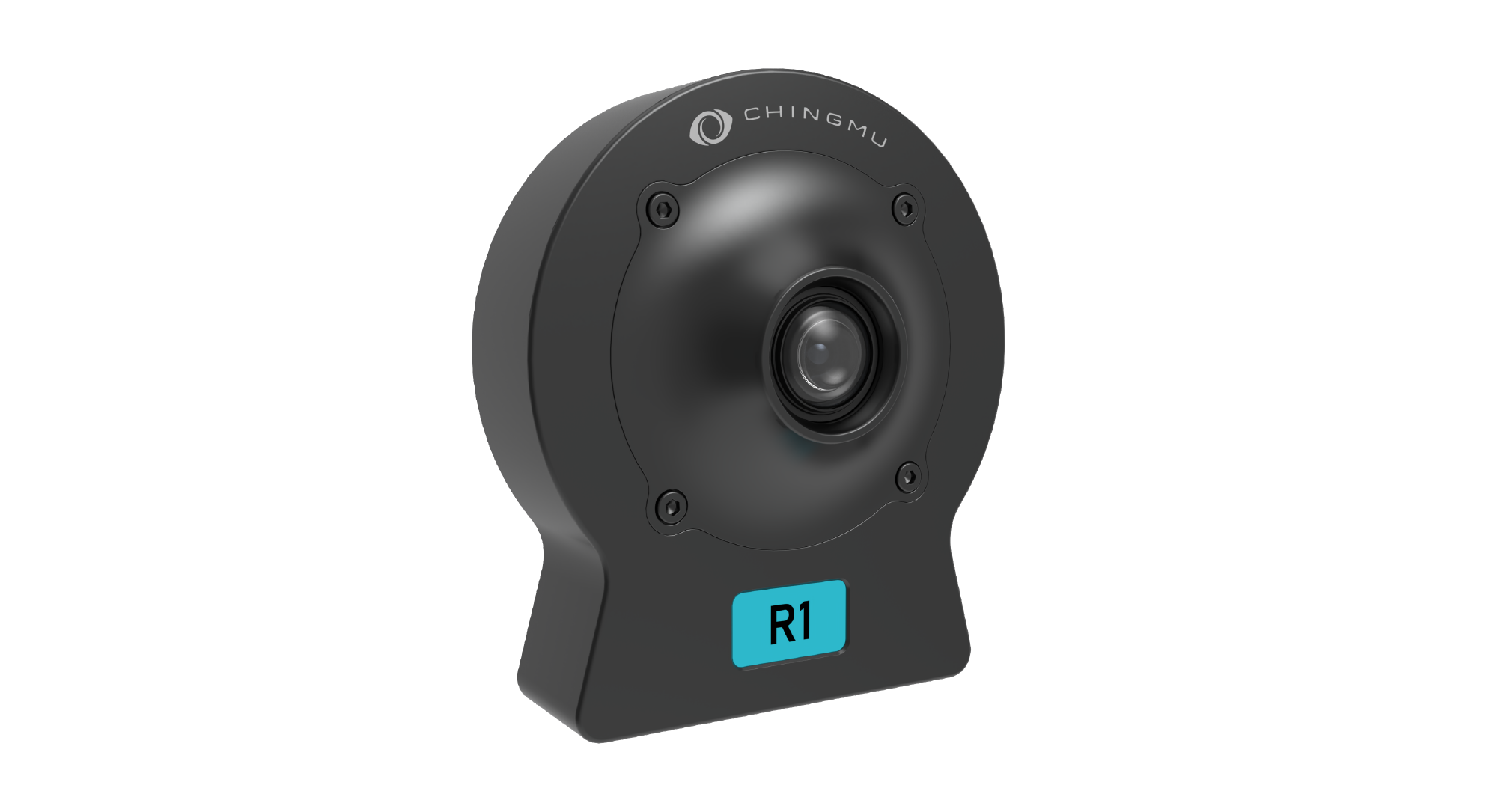

R1Lightweight Design
Ideal for basic video capture applications

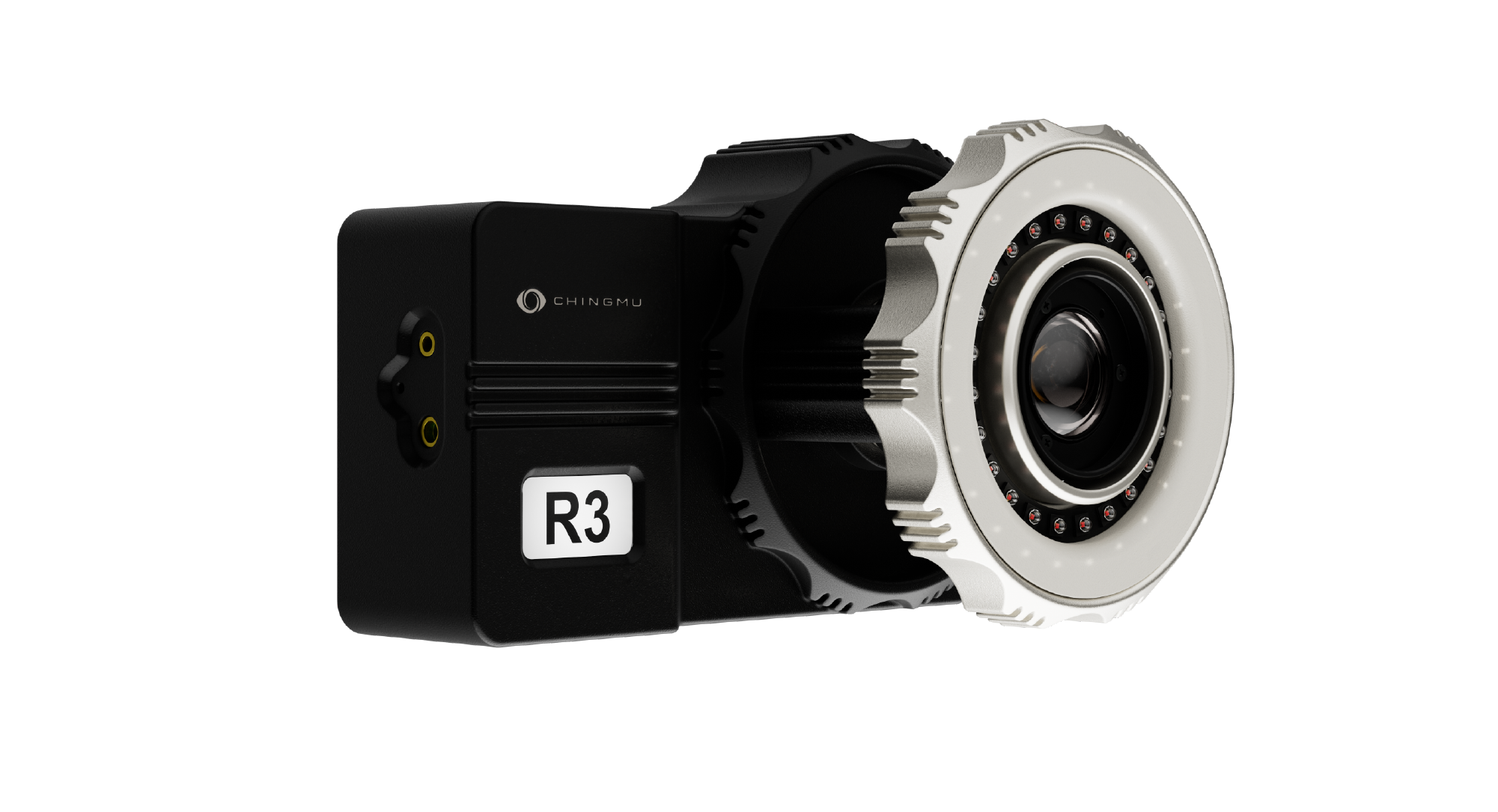

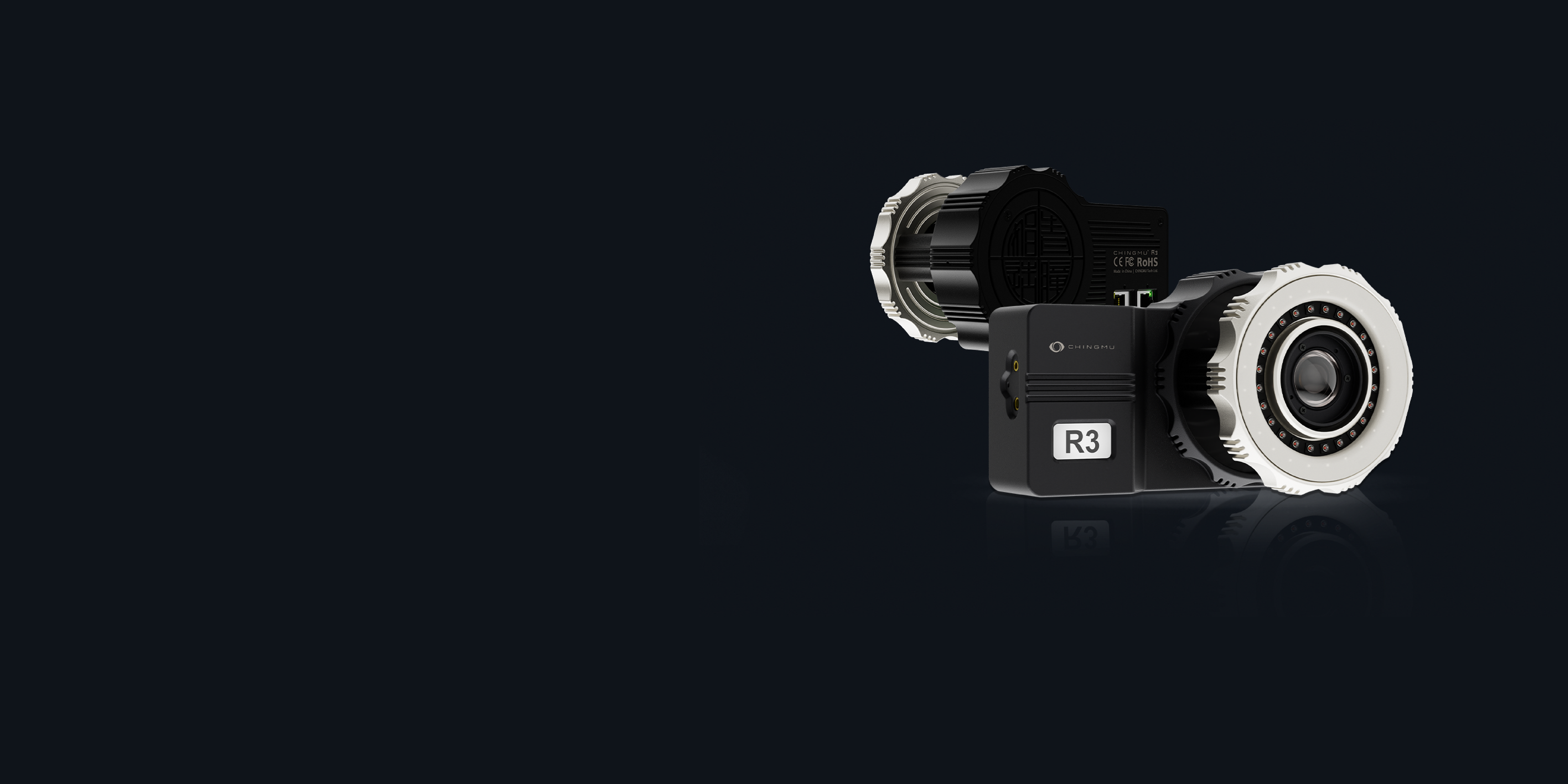

R3Multi-Modal Perception
Supports AI-based recognition and infrared motion capture

Detailed parameters, complete specifications

Specifications		R1	R3
Resolution	1280×1080	✓
	2048×1544		✓
	1920×1080		✓
	1280×720		✓
	960×540		✓
	640×480		✓
Frame Rate	120fps	✓
	Image:160fps Blob:216fps		✓
	Image:230fps Blob:306fps		✓
	Image:440fps Blob:452fps		✓
	Image:595fps Blob:595fps		✓
	Image:663fps Blob:663fps		✓
Focal Length		1.9mm	6mm
FOV (H×V)	83°×72°	✓
	63°×49°		✓
	59°×34°		✓
	39°×23°		✓
	30°×17°		✓
	20°×15°		✓
Capture Distance*		/	≥20m
Interface Type		RJ45	Dual RJ45
Light Source Type		/	850nm Infrared Light/White Light Fill Light
Average Power Consumption		4w	25w
Dimensions (W×H×D)		98mm×113mm×47mm	143mm×79mm×66mm

*Measurements were taken using a 16mm diameter marker. The observation range can also be increased by supplementing light sources or using markers of larger diameter.
