Hardware
K Series

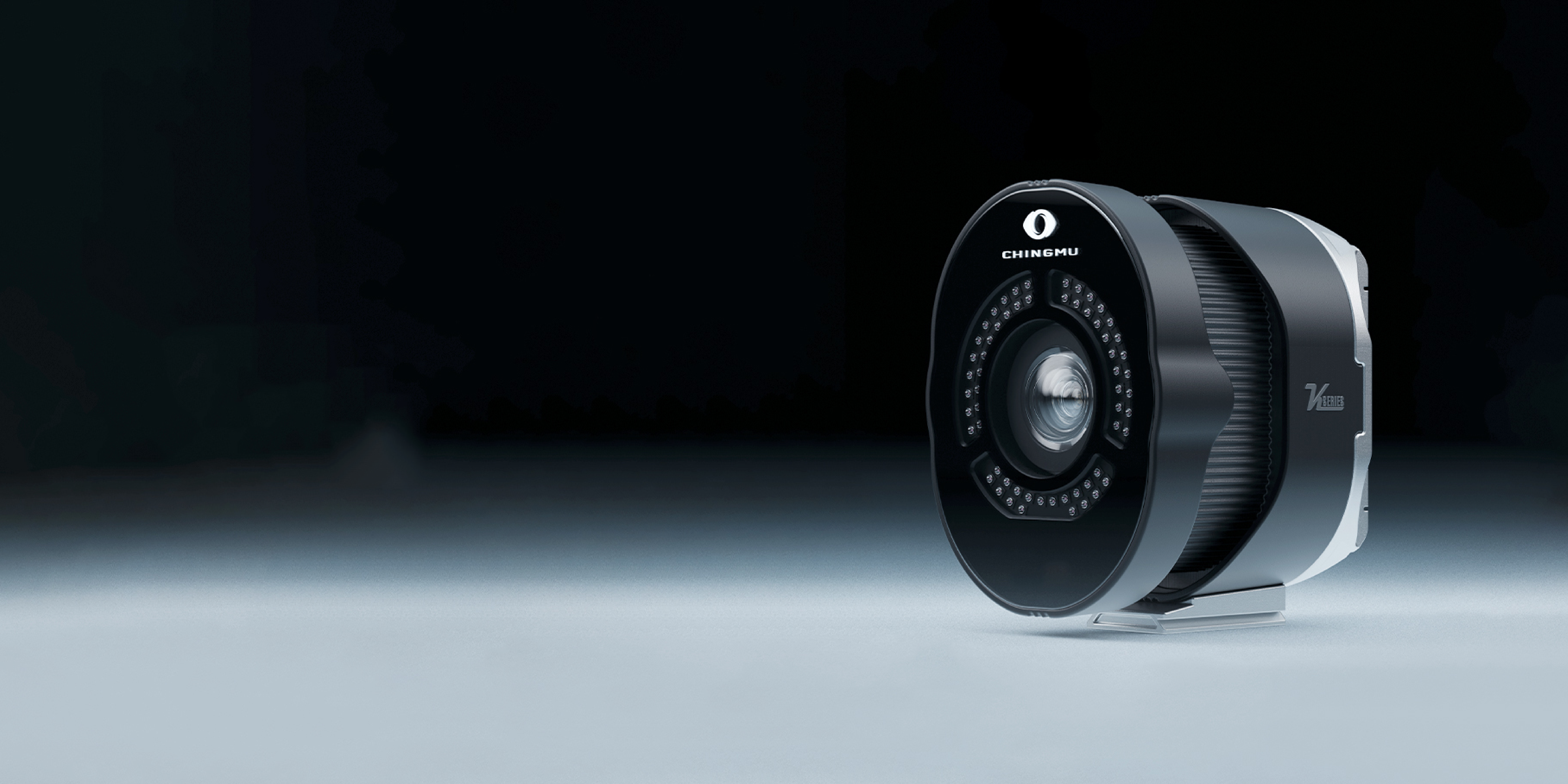

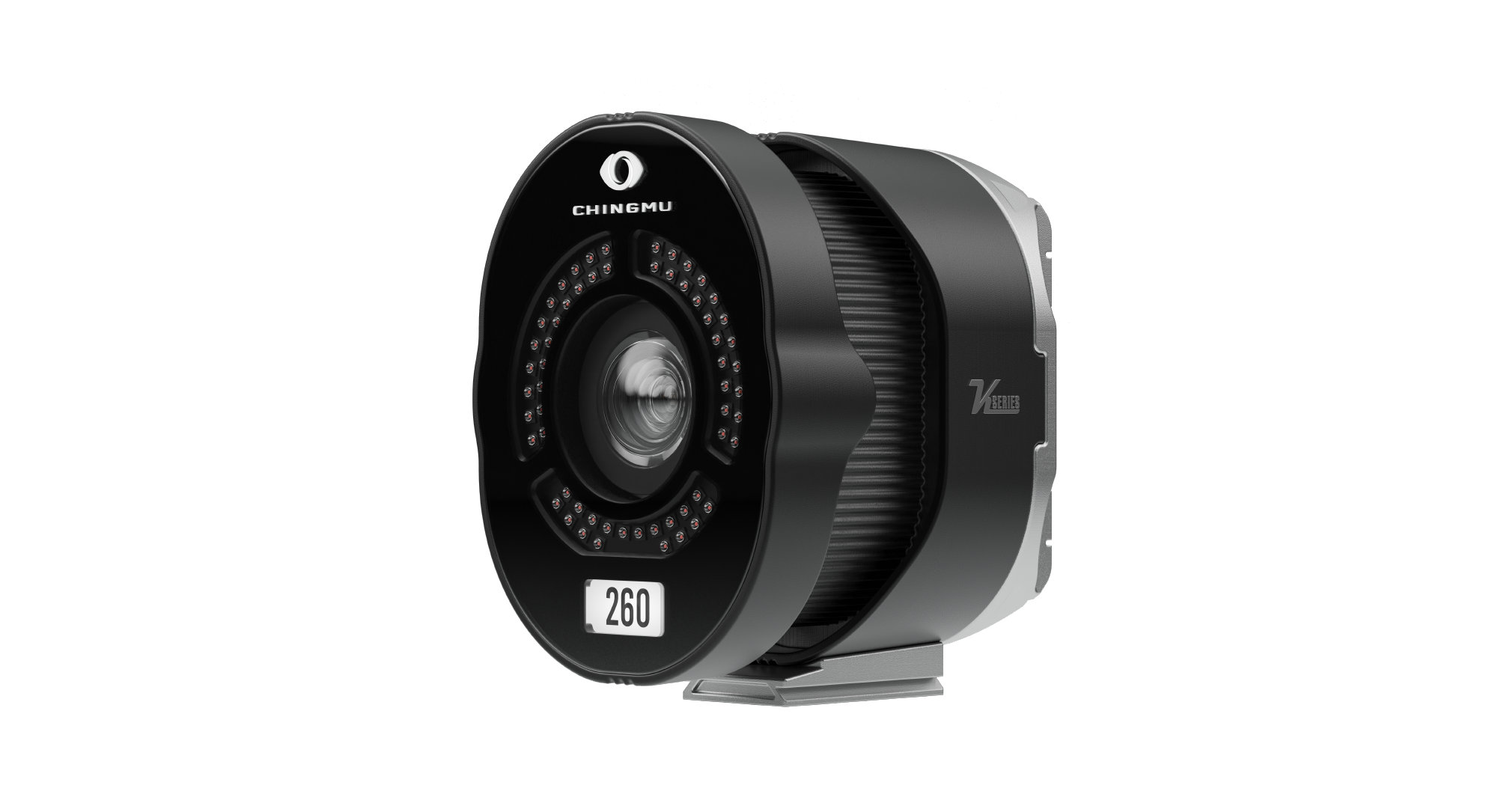

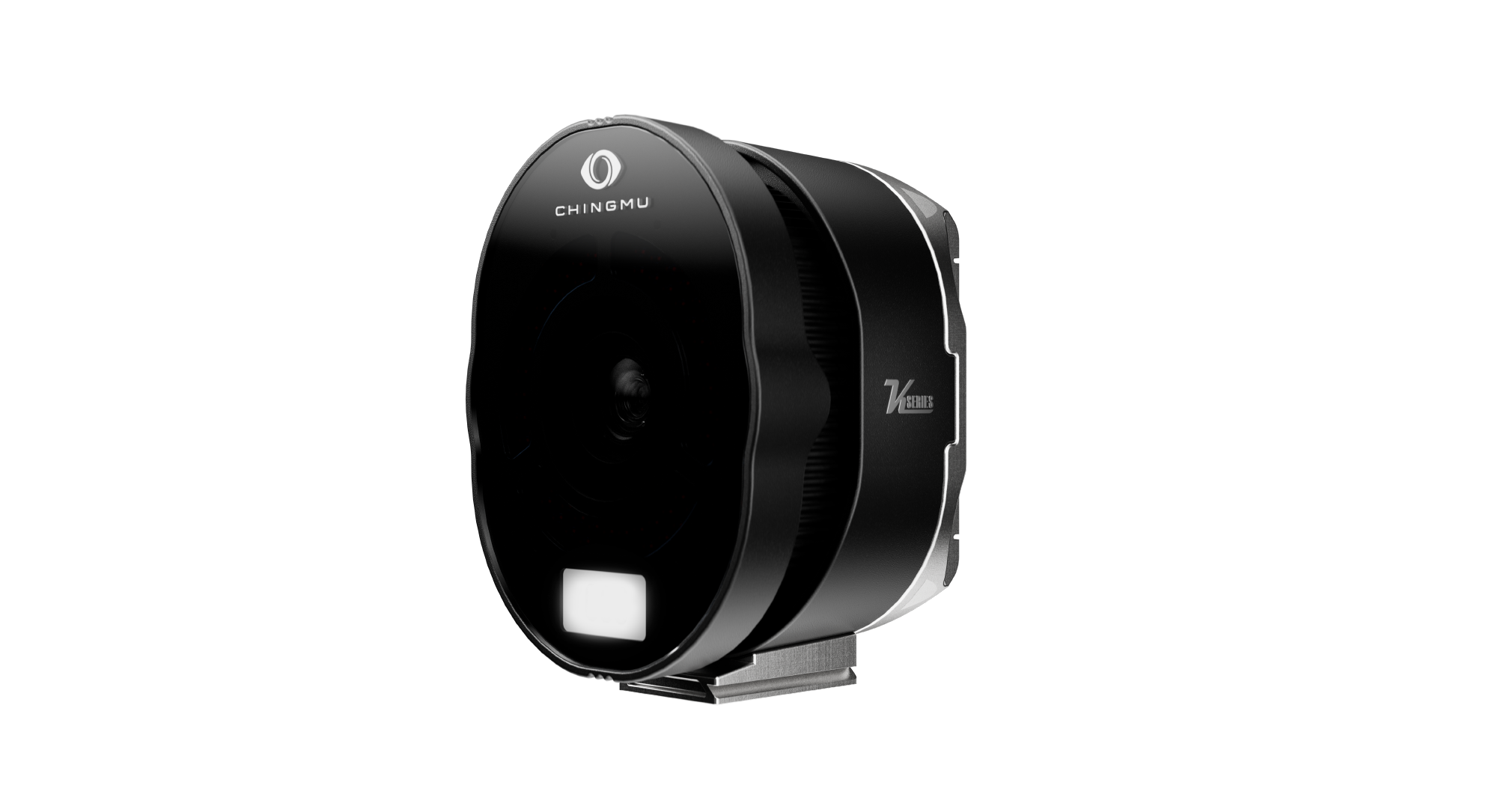

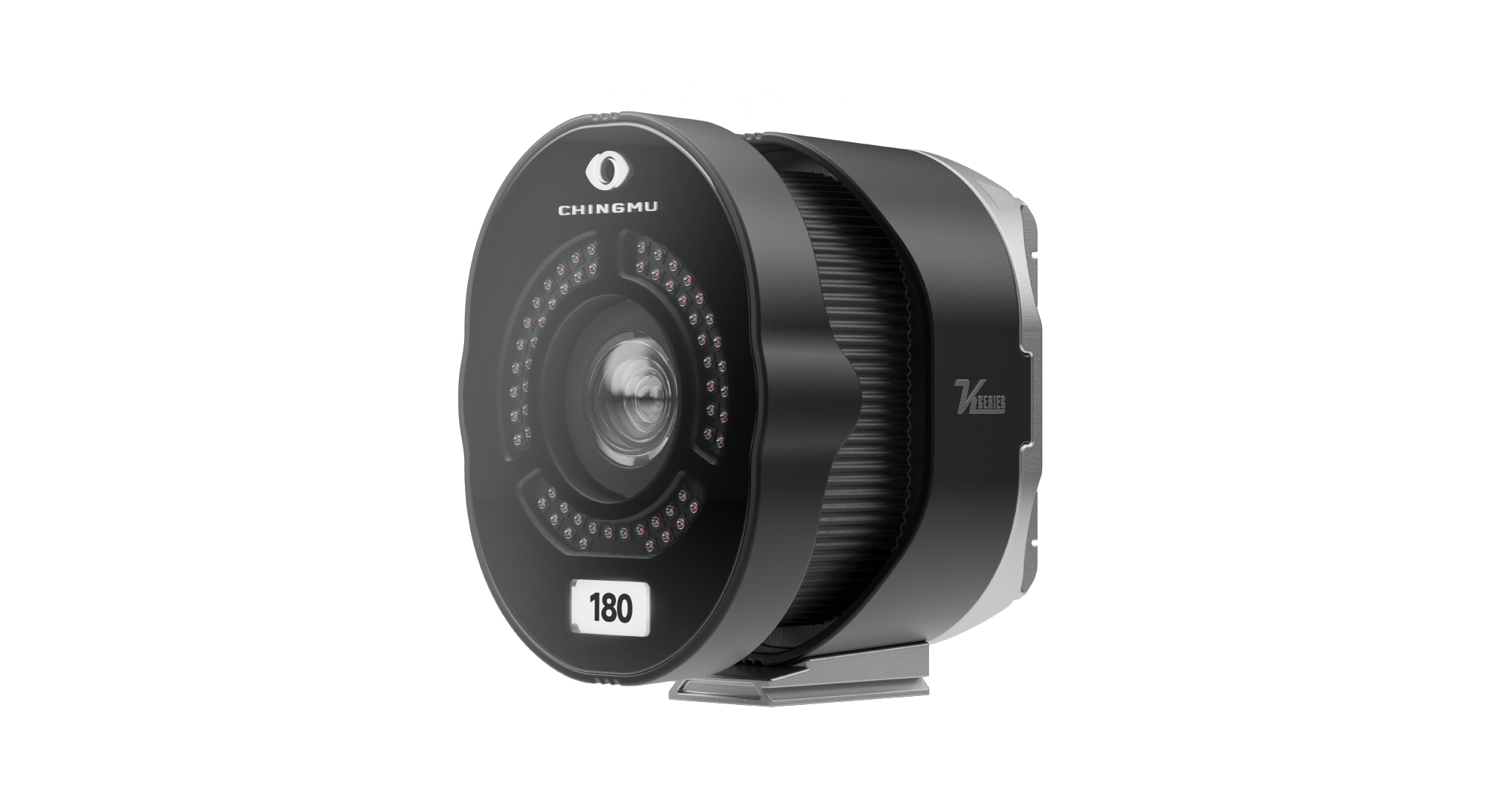

The K Series (Kunpeng) is CHINGMU’s flagship motion capture camera line, delivering industry-leading precision and performance. Engineered with advanced optical technology and proprietary tracking algorithms, it provides ultra-accurate, high-fidelity motion data for the most demanding applications — from virtual production and animation to biomechanics and industrial measurement.
Consult >

26MP

Maximum Resolution

±0.02mm

3D Accuracy

47–94m

Tracking Range

IP66

Ingress Protection

Advantages

  • Full-Coverage, No Blind Spots

    Ultra-High Frame Rate

  • All-in-One Versatility

  • Ultra-High Precision

    Long-Range Capture

  • Product advantages

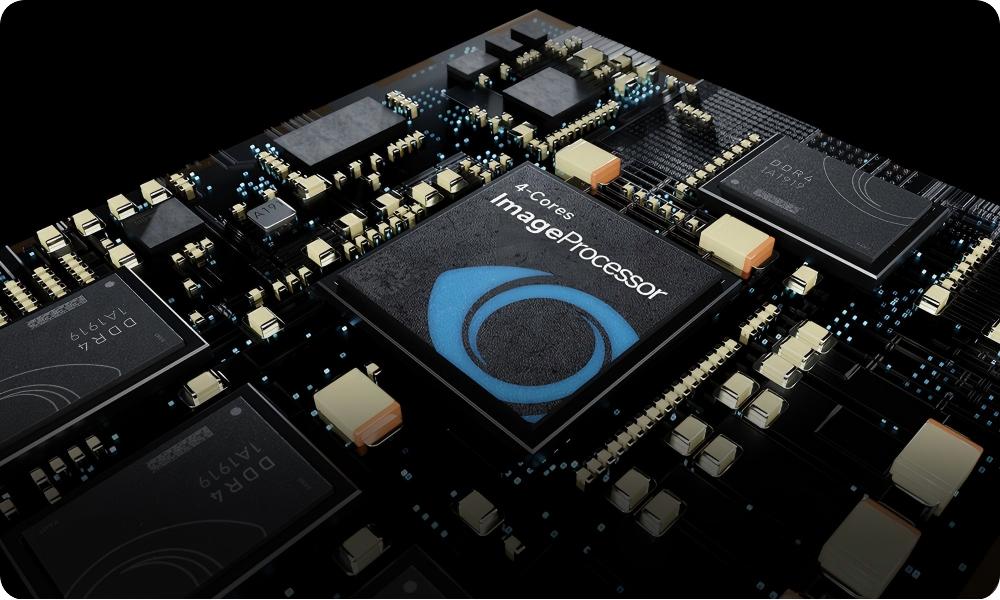

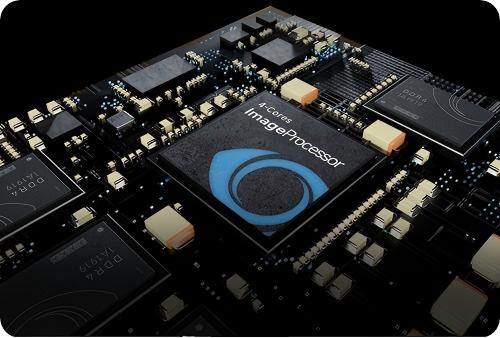

    Ultra-High Precision Calibration & ReconstructionAchieve sub-millimeter accuracy for the most demanding measurement tasks Equipped with a high-resolution imaging sensor and proprietary tracking algorithms, the K Series achieves point-level accuracy of up to 0.02 mm, meeting the most demanding requirements for structural deformation analysis, micro-motion detection, and high-precision pose estimation.
    Consult >

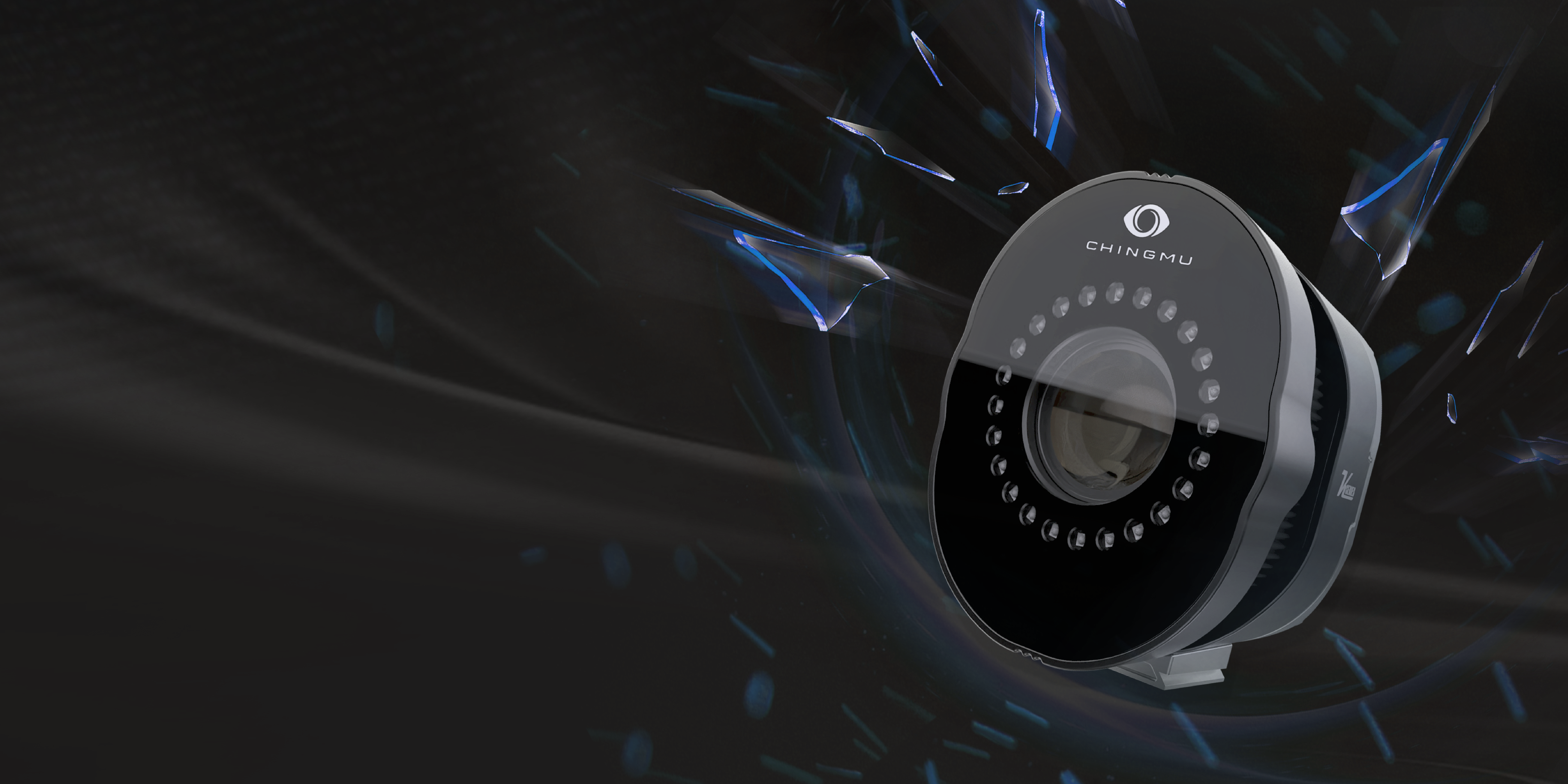

    High Frame Rate × High Resolution SynergyCapture ultra-fast motion without compromising detail All K Series cameras support windowing technology, enabling frame rates of up to 1,000 fps in regional capture mode for precise acquisition of ultra-high-speed motion details.
    Consult >

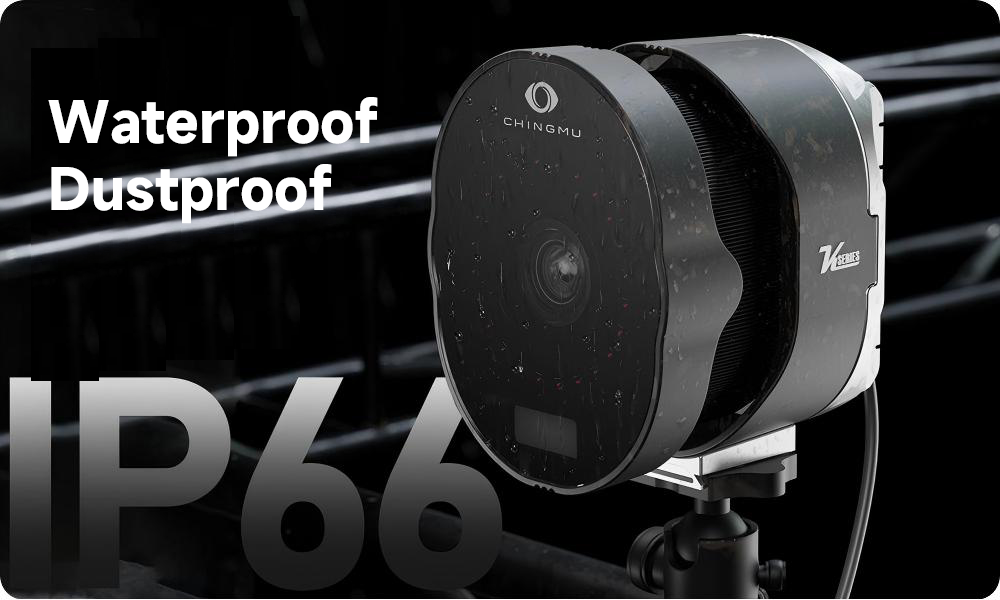

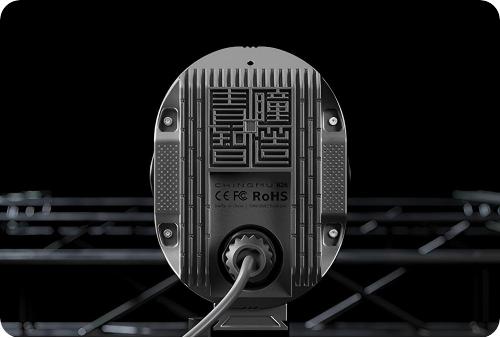

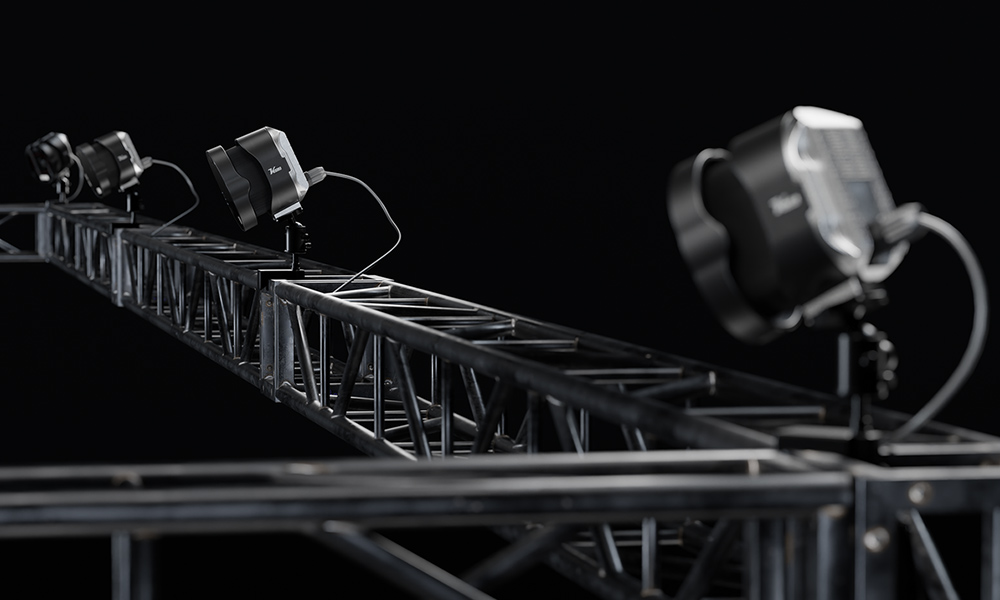

    Industrial-Grade StabilityEngineered for continuous operation in demanding environments With IP66-rated ingress protection, an all-metal housing, advanced thermal management, and anti-interference structural design, the K Series ensures stable performance during continuous long-duration operation — ideal for industrial validation and deployment in harsh environments.
    Consult >
    Extensive System Expandability & CompatibilitySeamless integration across complex multi-device ecosystems Supports synchronized integration with force plates, RGB cameras, and other multi-modal devices. Broad compatibility with major robotics simulation platforms, virtual production engines, and control systems enables seamless multi-modal data fusion.
    Consult >
    Multi-Domain ApplicabilityProven across research, robotics, and production environments Widely deployed across humanoid robot motion analysis and control validation, industrial automation testing and verification, film-grade virtual production and motion capture, as well as sports science and biomechanics research — enabling high-precision, high-efficiency, and high-fidelity data acquisition.
    Consult >

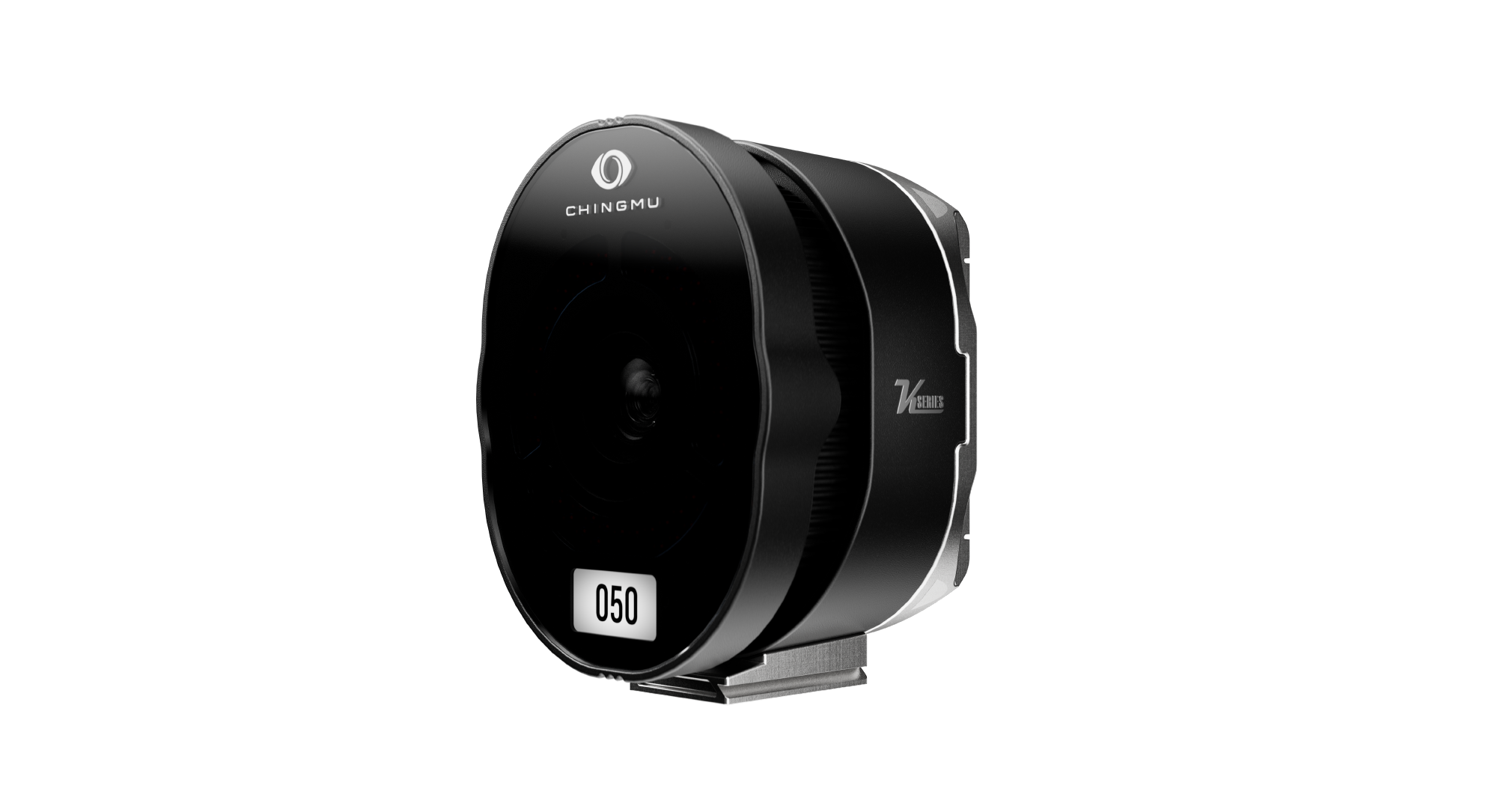

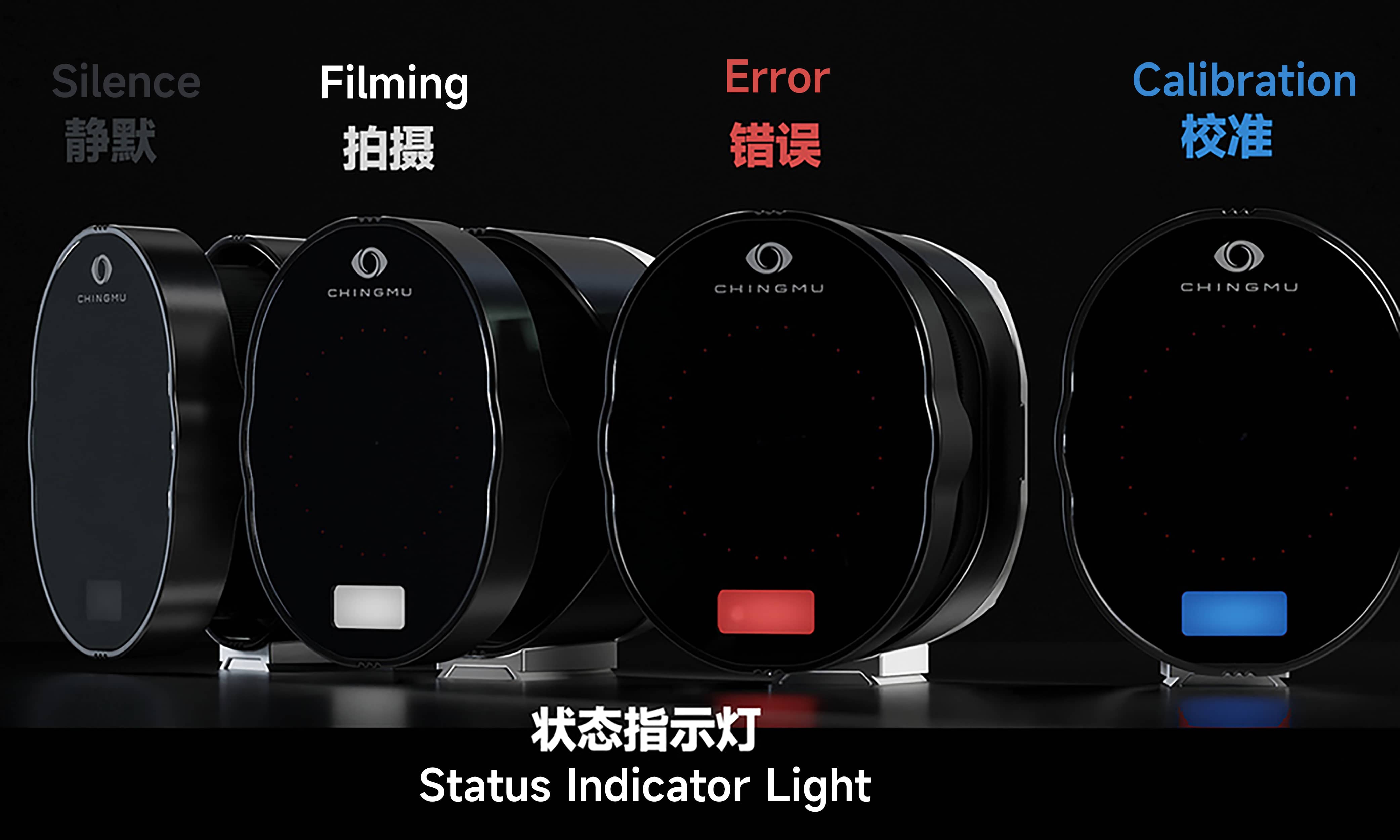

    Intuitive Status IndicationClear system feedback for faster operation and troubleshooting Clear and instantly recognizable system states with guided progress display. Working status and calibration progress are visible at a glance across all modes, enabling rapid troubleshooting and an improved user experience.
    Consult >

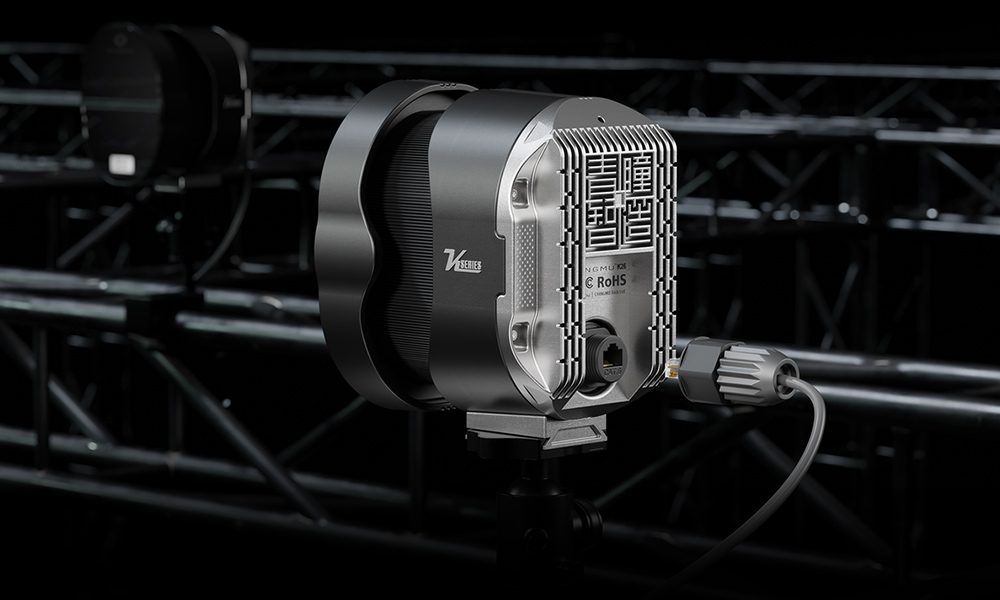

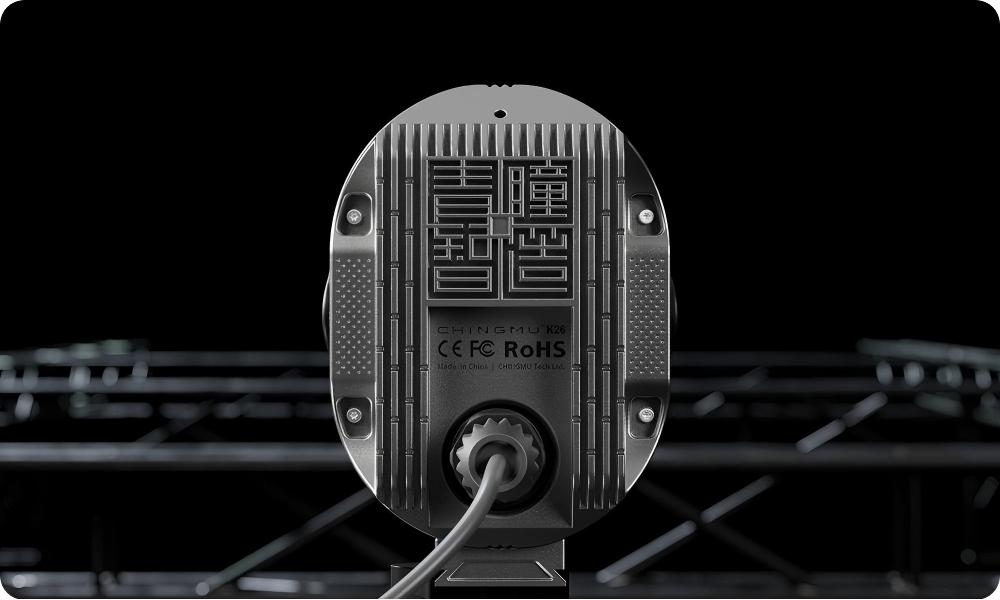

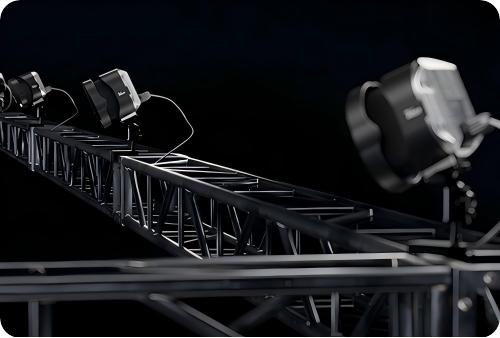

    Simplified InstallationFaster setup with minimal hardware complexity No PoE splitter required. A single Ethernet cable supports power delivery, data transmission, and synchronization — with cable runs of up to 100 m, extendable via PoE switches.
    Consult >

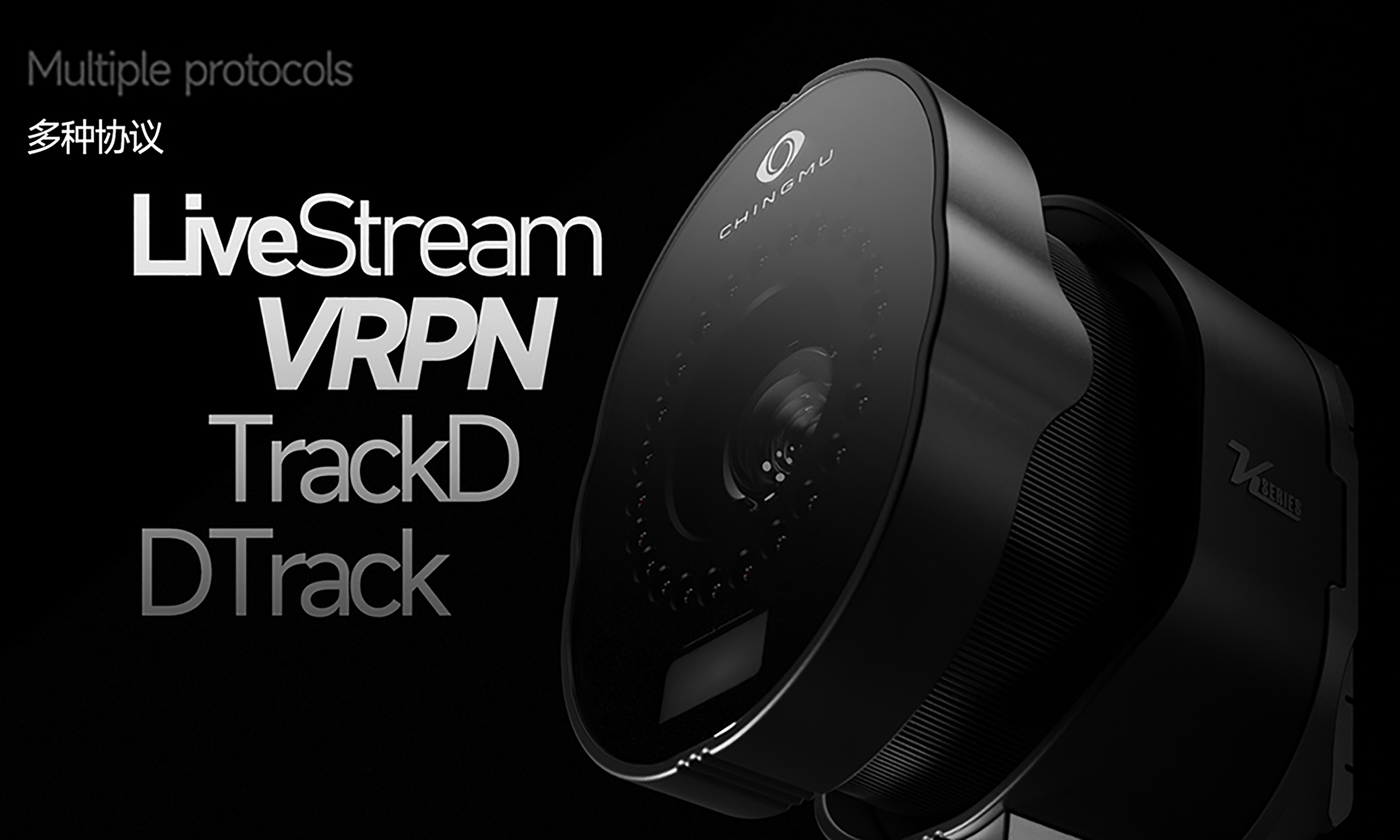

    Multi-Protocol SupportFlexible integration with existing software ecosystems Compatible with VRPN, TrackD, DTrack, LiveStream, and other mainstream protocols, ensuring broad software integration.
    Consult >
    The series come together, offering more choices

  • K5Versatile All-Rounder
    Balanced precision and efficiency for mid-to-high-end standard applications
  • K9High Frame Rate, Low Latency
    Engineered for precise capture of high-speed motion
  • K18Full-Field Coverage
    Ultra-wide field of view for stable performance across large indoor and outdoor spaces
  • K26Ultimate Precision
    Delivers exceptional detail with ultra-high-resolution capture
  • Detailed parameters, complete specifications
    Type※1K5K9  K18K26Customized version
    Full resolution2640*21604256*21604512*40965120*5120Customizable
    Frame rate※2360fps360fps172fps180fpsCustomizable
    Standard lensStandard configurationLens aperture/focal lengthF1.2/6mmF1.4/8mmF1.4/8mmF1.4/8mmCustomizable
    Field of view63°x51°73°x40°76°x70°84°x84°
    Narrow-angle lensOptional accessoriesLens aperture/focal lengthNoF1.4/12mmF1.4/12mmF1.9/12mmCustomizable
    Field of viewNo47°x24°49°x45°58°x58°
    Wide-angle lensOptional accessoriesLens aperture/focal lengthNoF2.4/5mmF2.4/5mmF2.4/5mmCustomizable
    Field of viewNo96°x59°100°x94°106°x106°
    Status indicator lightStandard configurationCircular RGB lightCircular RGB lightCircular RGB lightCircular RGB lightCustomizable
    Protection levelStandard configurationNoCustomizable
    Optional accessoriesIP66IP66IP66IP66Customizable
     3D accuracy(2) +/-0.06mm +/- 0.04mm+/- 0.03mm +/- 0.02mmCustomizable

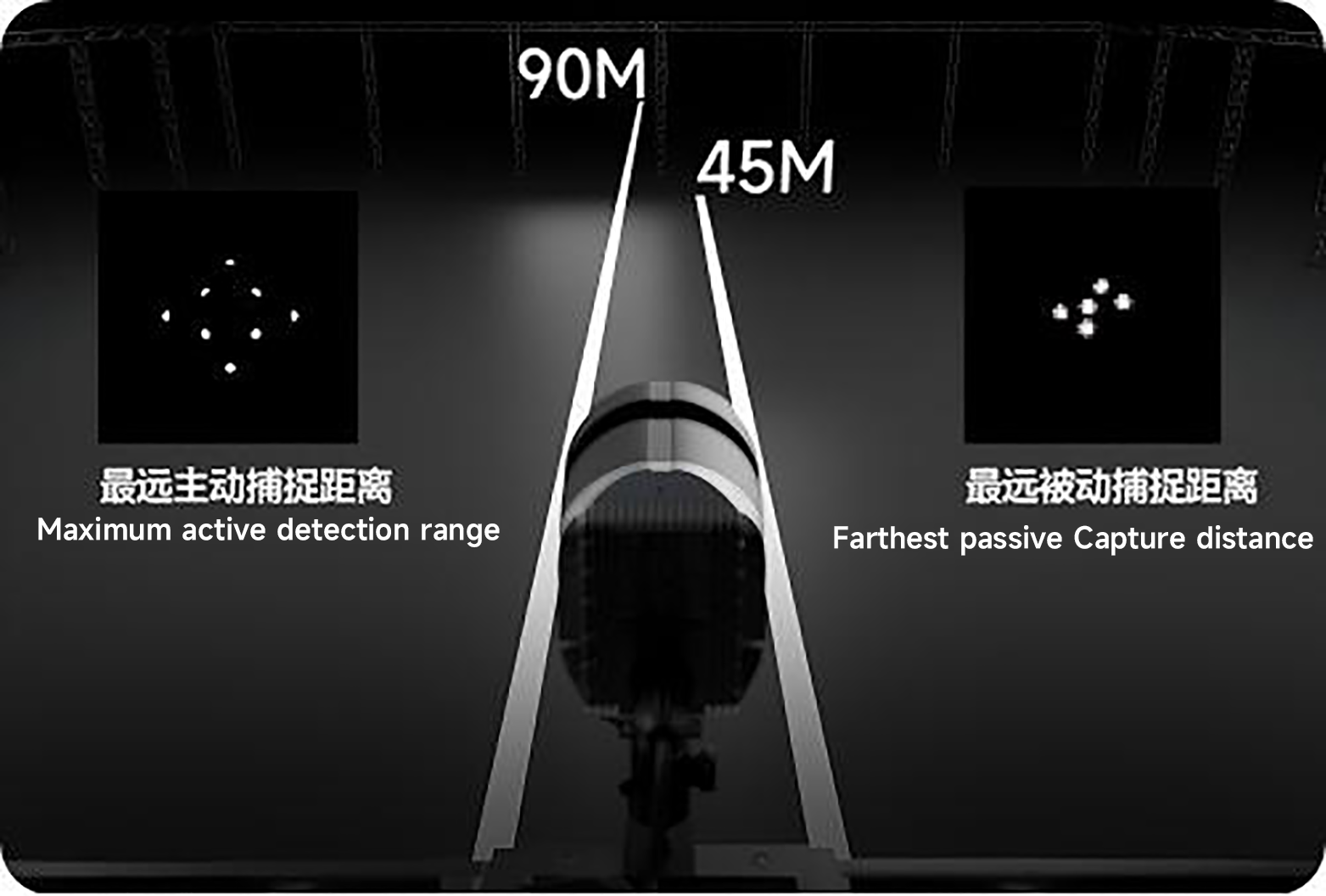

    Passive tracking distance*28mStandard version:30mN:45mW:23mStandard version:30mN:47mW:22mStandard version:32mN:45mW:25mCustomizable
    Active tracking distance*56mStandard version:60mN:90mW:46mStandard version:48mN:94mW:44mStandard version: 62mN:90mW:50mCustomizable
    Infrared lightingyesCustomizable
    Optical finger  yesCustomizable
    Full-body trackingyesCustomizable
    Synchronization methodWired and WirelessCustomizable
    Interface typeRJ45Customizable

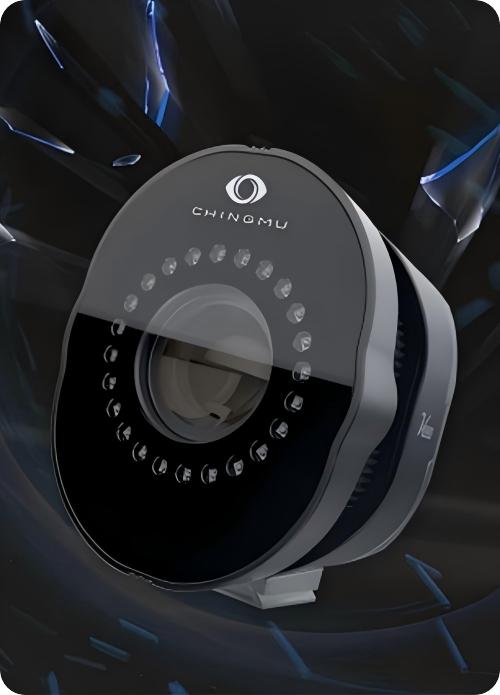

    Number of LEDs60Customizable
    Overall machine power12—55wCustomizable
    Cascade quantity100+Customizable

    ※Explanation:

    ※1: Standard models are K5, K9, K18, and K26. They come with standard lenses and have no protection rating. If you choose a narrow-angle lens or a wide-angle lens, add the letter "N" or "W" after the standard model; if you choose a protection rating of IP66, add the letter "IP66" after the standard model.

    Example: K9N, this is the selected narrow-angle lens, with no protection rating.

    Example: K18WIP66, this is the selected wide-angle lens, with a protection rating of IP66.

    Example: K26IP66, this is the standard model with standard lenses and a protection rating of IP66.

    ※2: The frame rate can be increased through the windowing technique, and it can be customized.

    ※3: When choosing a wide-angle lens, an additional accessory fee will be incurred.

    ※4: If you choose to equip with the protection level IP66, an additional selection fee will be required.

    (2) 3D accuracy measured using standard lenses.

    The measurement was conducted using a 16mm diameter marker. Additionally, the observation distance can be increased by providing supplementary light sources or using markers with a larger diameter.

    Under standard conditions, the measurement was conducted using a 16mm diameter marker. Additionally, the observation distance can be increased by supplementing the light source or using a larger diameter marker.
