Hardware MC Series

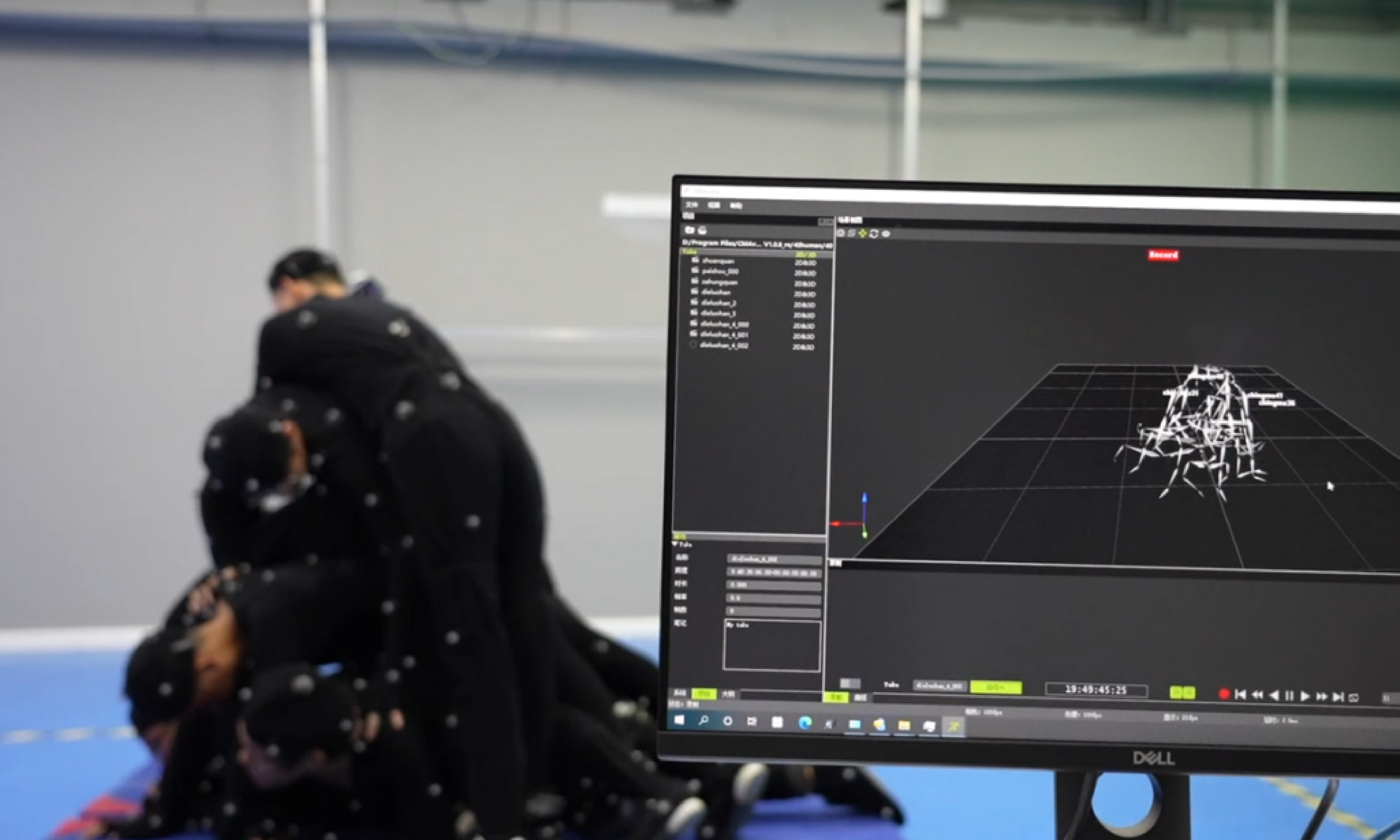

The MC Series is CHINGMU’s versatile and cost-efficient motion capture system, designed for scalable deployment across industries such as film production, robotics, and biomechanics. Combining precise spatial tracking with flexible system architecture and broad compatibility, it delivers stable performance, rapid deployment, and exceptional value for multi-camera and large-scale capture setups.

Consult >

400fps

Maximum Frame Rate

±0.06mm

3D Accuracy

30–60m

Tracking Range

IP65

Ingress Protection

Advantages

High-Precision Tracking

Large-Scale Capture Volume

Full-Coverage

Broad Application Coverage

High Cost-Effectiveness

Product advantages

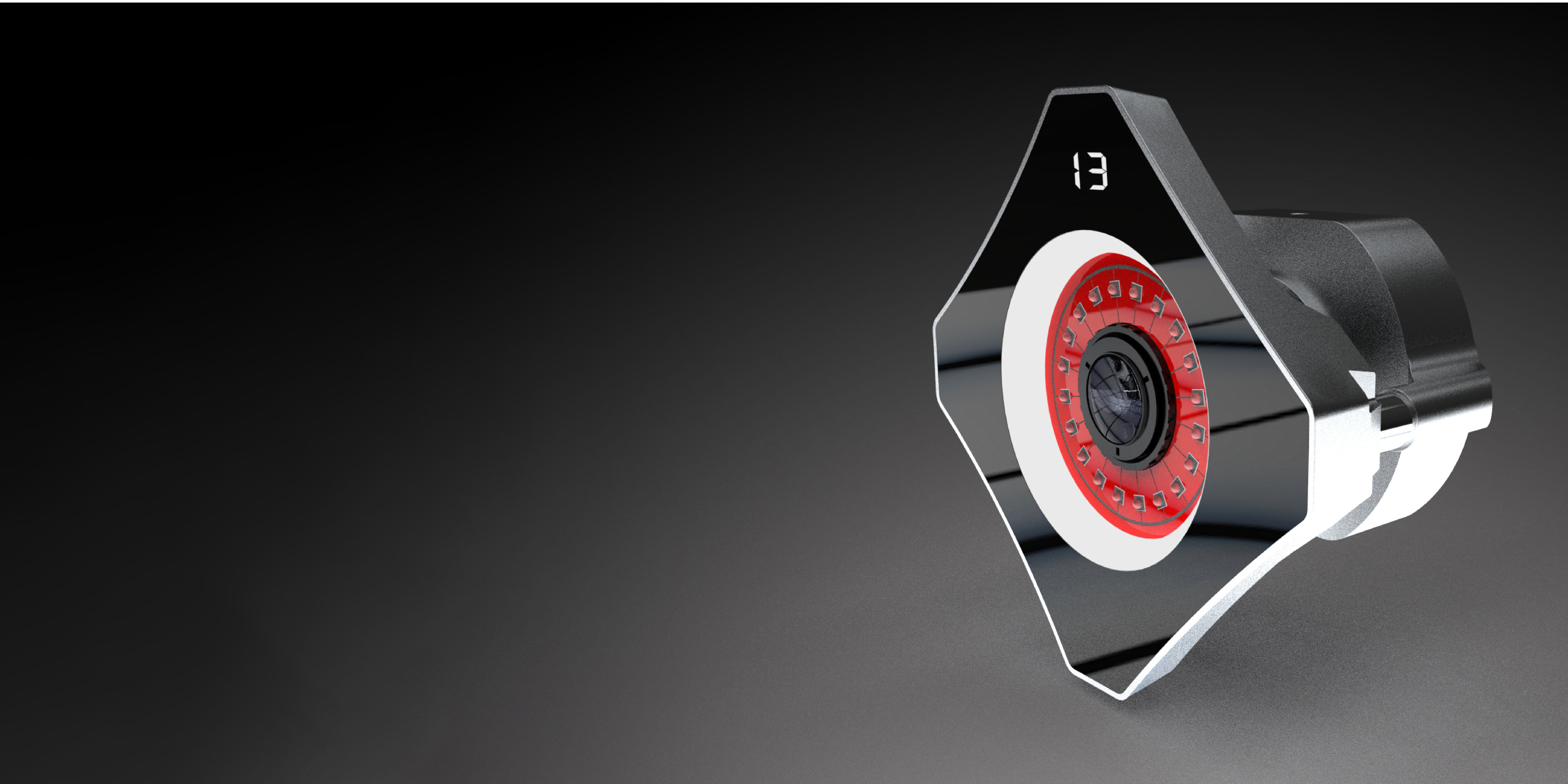

High Value-for-Performance DesignMaximize performance while minimizing deployment cost. Delivers reliable tracking accuracy at significantly reduced deployment cost, making it ideal for multi-camera configurations and large-scale capture environments.

Consult >

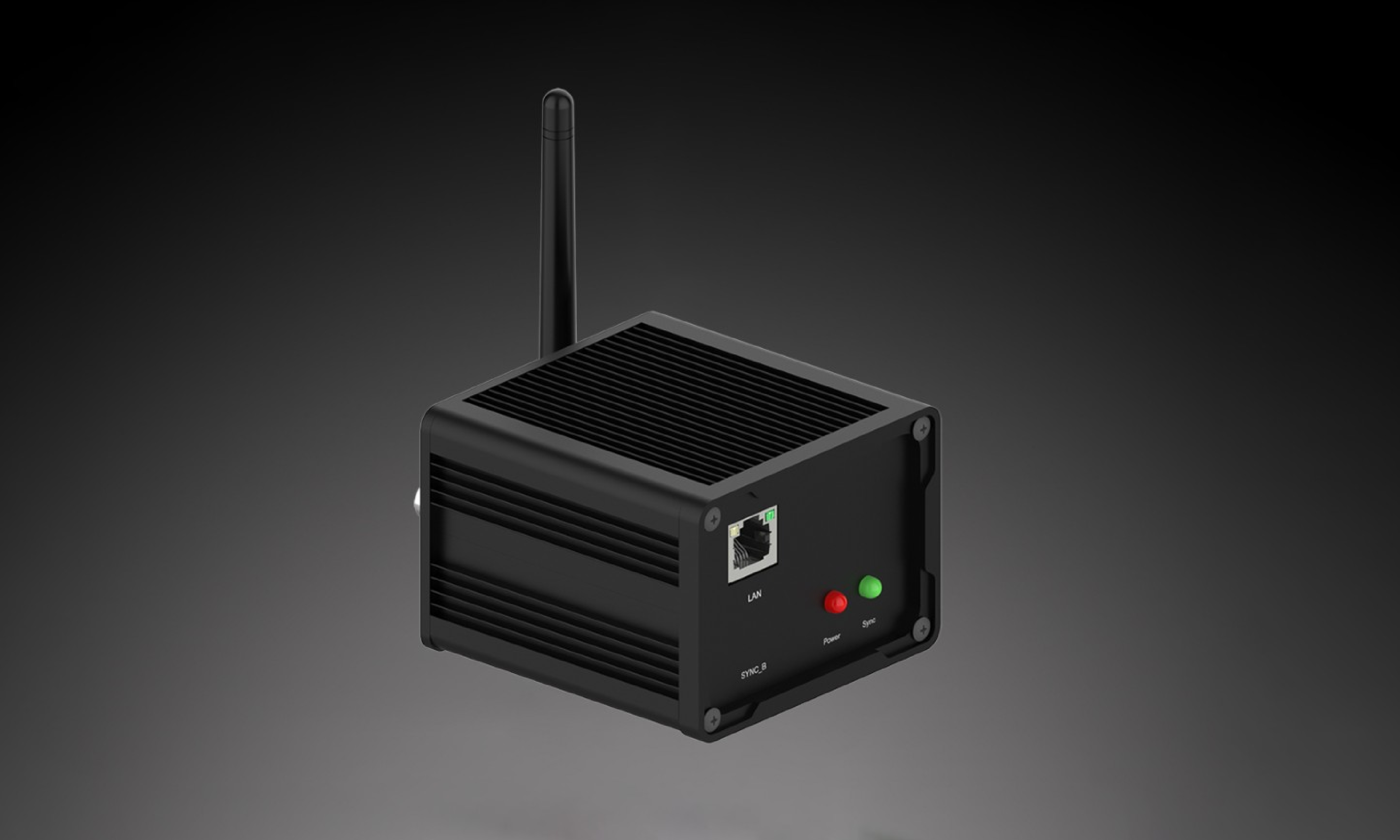

Broad System CompatibilitySeamlessly integrates with other CHINGMU product lines and supports mainstream animation software as well as leading simulation and analysis platforms, minimizing integration overhead.

Consult >

Powerful On-Chip ProcessingEquipped with a high-performance FPGA, dual 512 MB DDR3 memory, a dual-core ARM A9 processor, 16 MB QSPI flash, and 4 GB onboard storage, enabling real-time synchronous computation during data capture.

Consult >

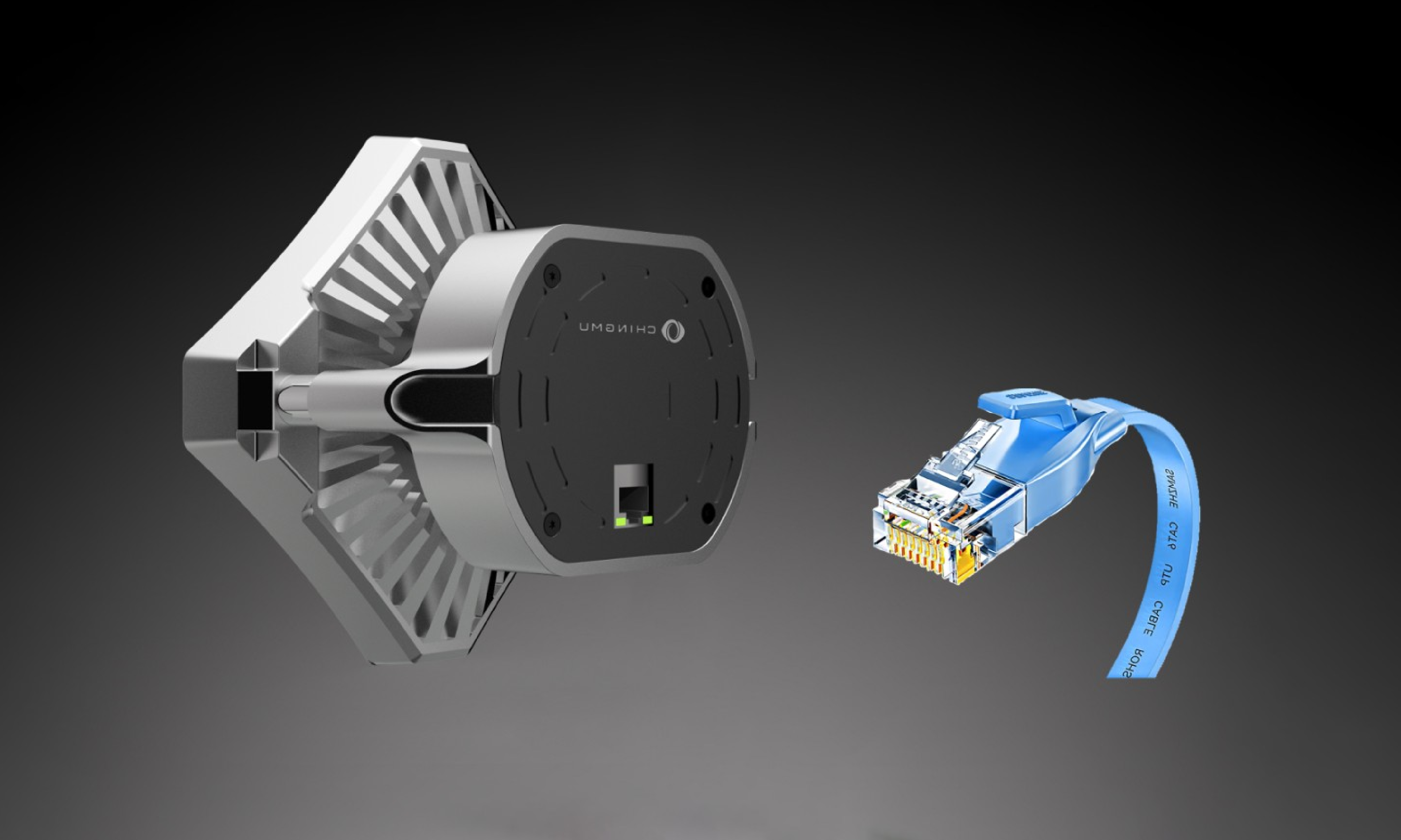

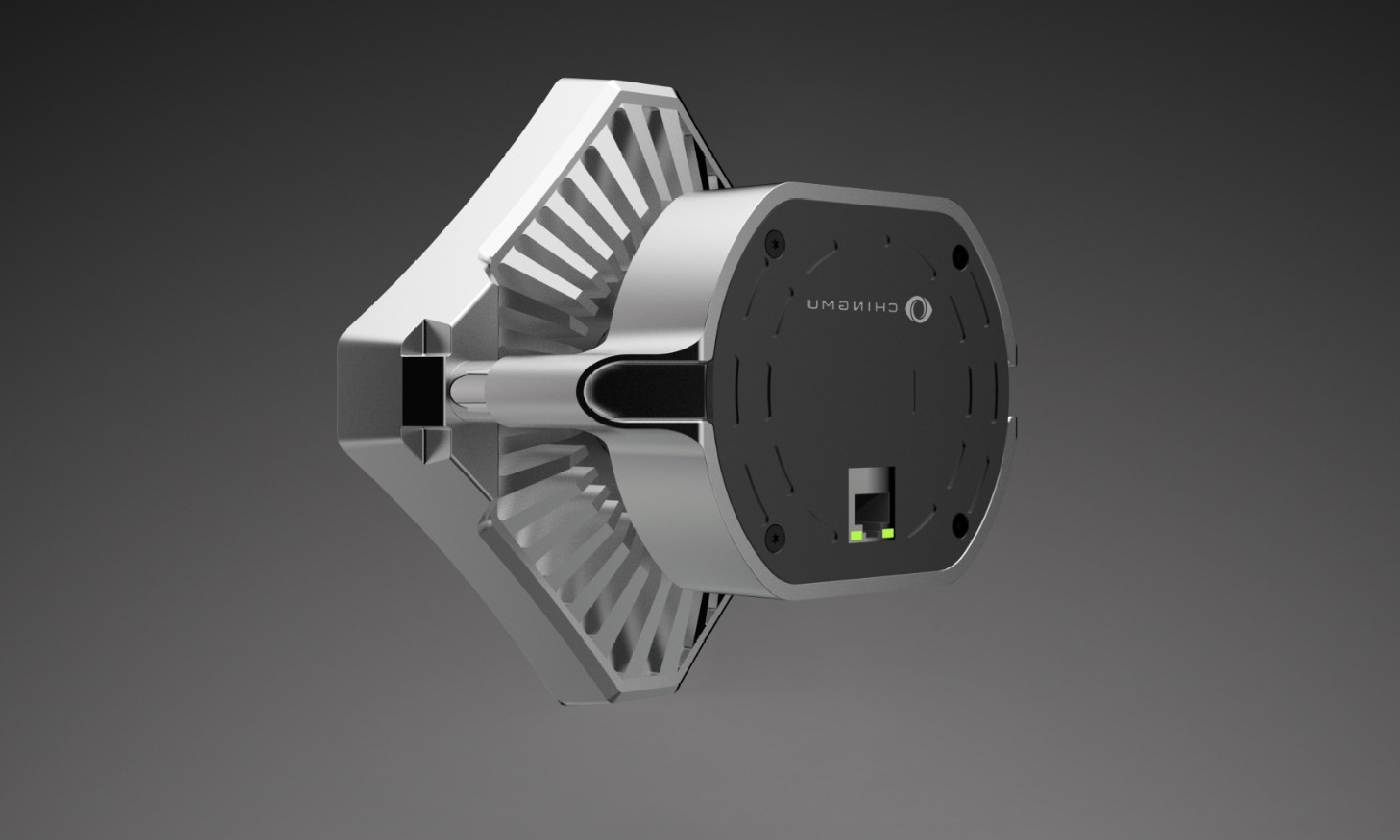

Passive Thermal ManagementA large rear-mounted heatsink combined with a sealed passive cooling design ensures stable high-performance output while protecting against dust, moisture, and acoustic interference.

Consult >

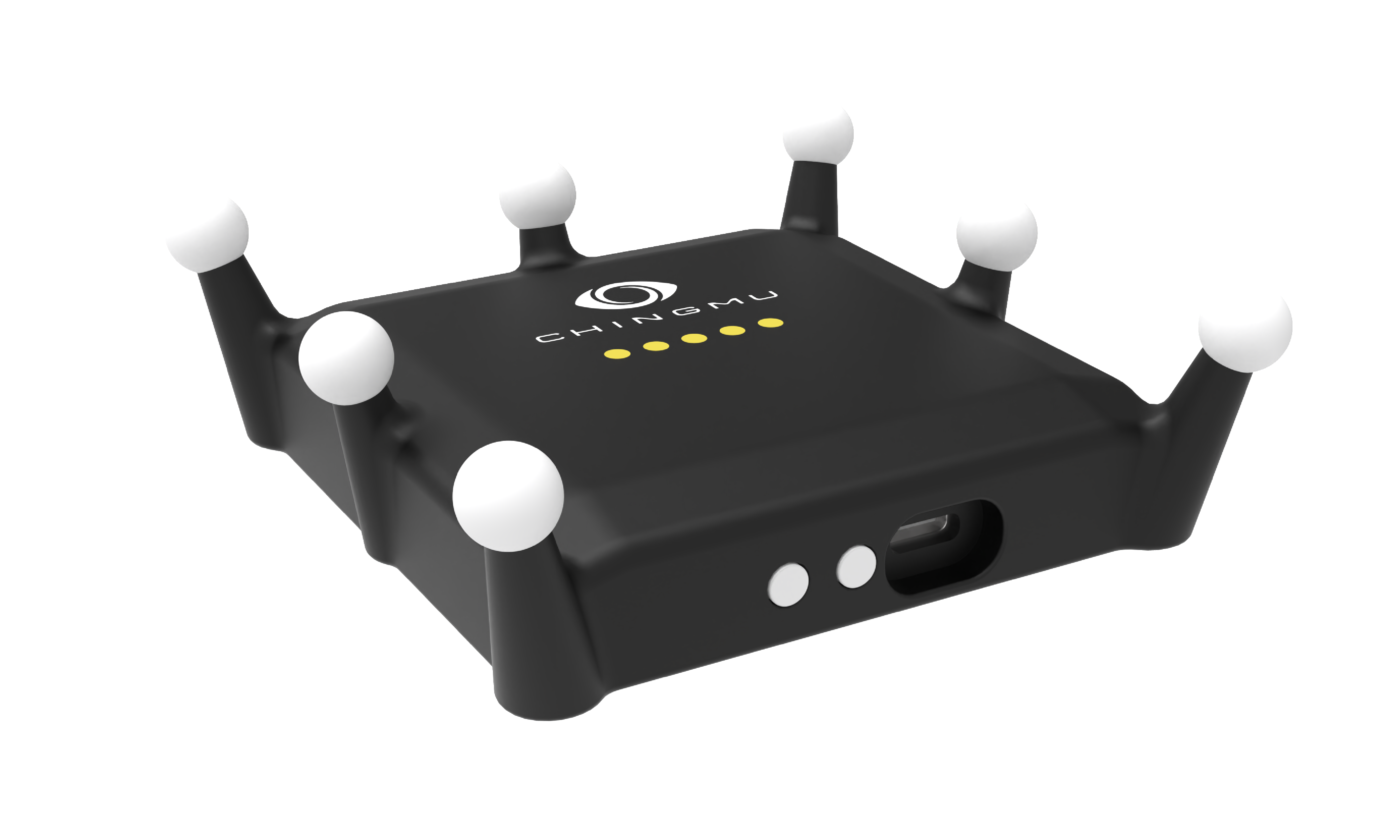

Active & Passive Marker SupportSupports both active and passive markers. Active markers enable individual encoding, extending tracking range and improving anti-interference performance under active illumination.

Consult >

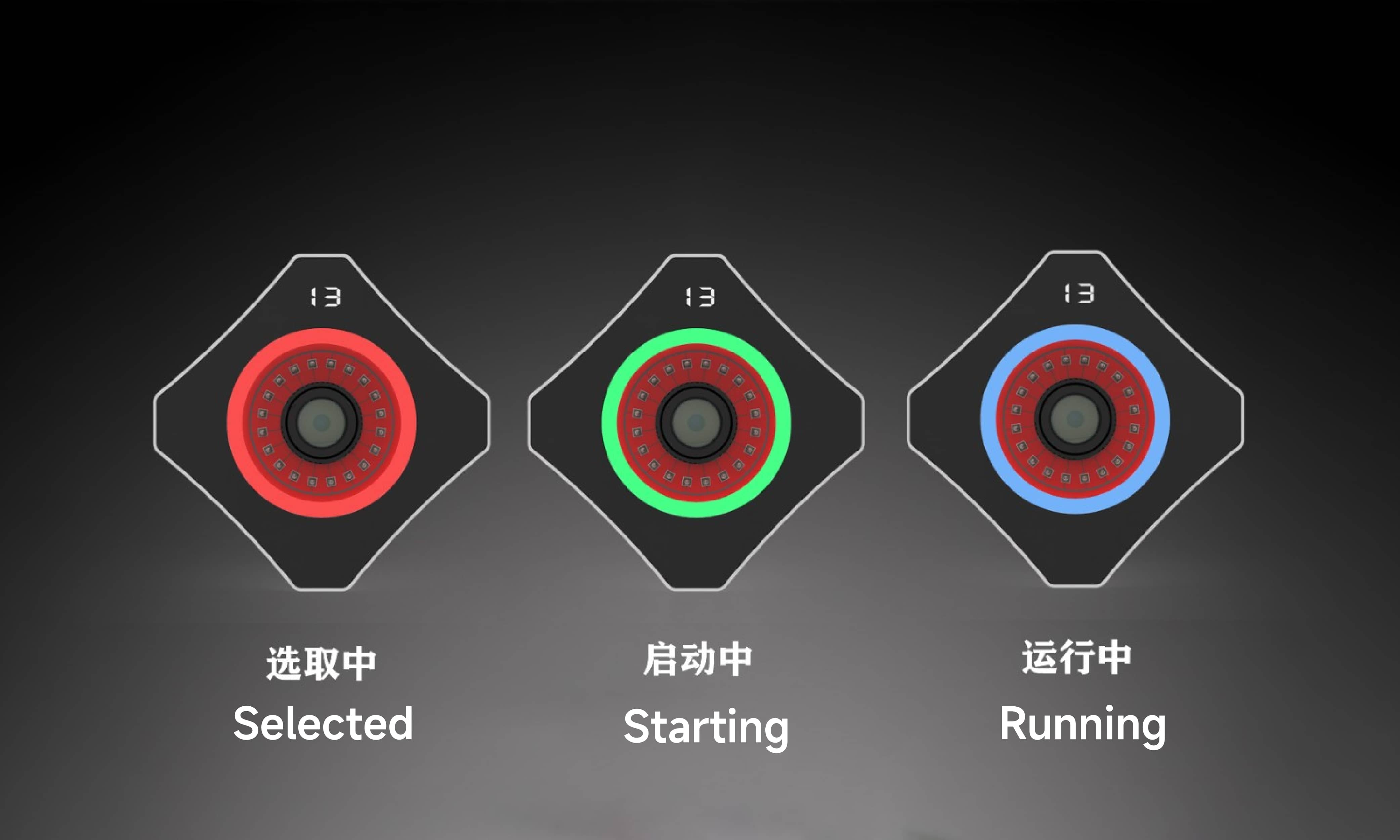

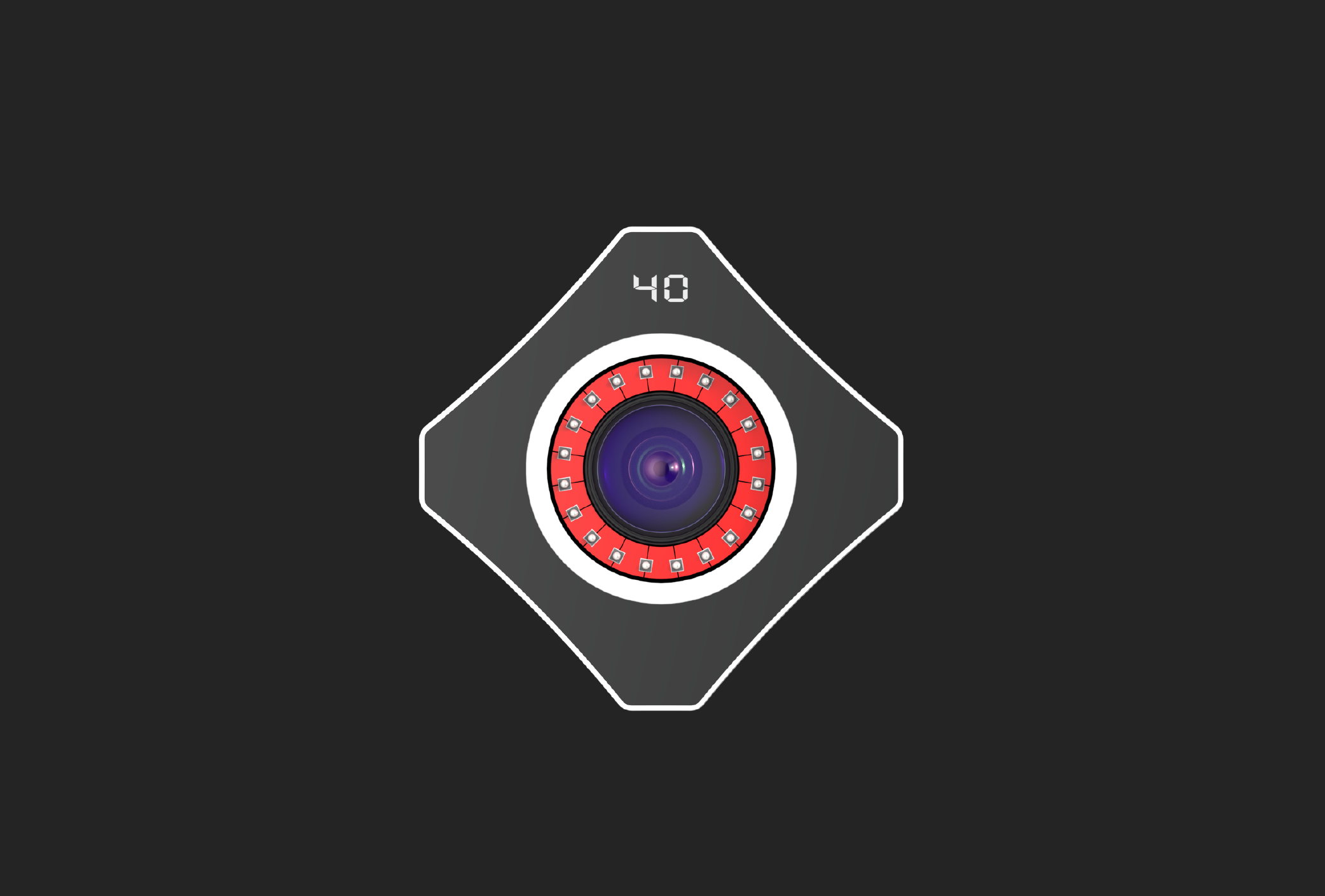

Intuitive Status IndicationA tri-color LED ring at the front of the lens indicates camera status through color and blinking patterns, ensuring visibility at a distance for quick system assessment.

Consult >

Robust Tracking PerformanceAdvanced image processing and recognition algorithms provide strong occlusion tolerance and adaptive illumination response, ensuring stable and continuous data output.

Consult >

Comprehensive Capture CapabilityThe series includes multiple camera models with both high frame rate and high resolution options, balancing trajectory accuracy with real-time performance across a wide range of motion capture tasks.

Consult >

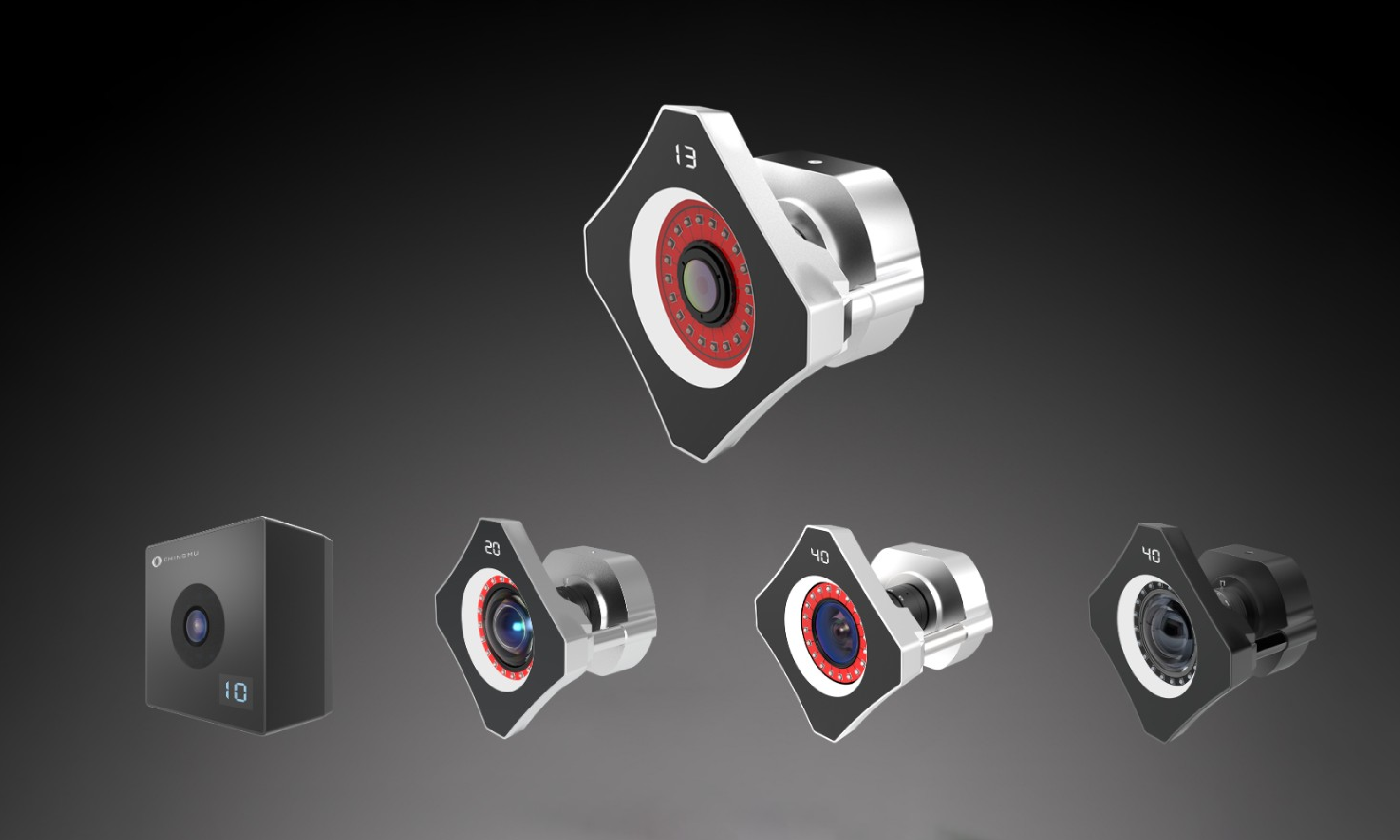

The series come together, offering more choices

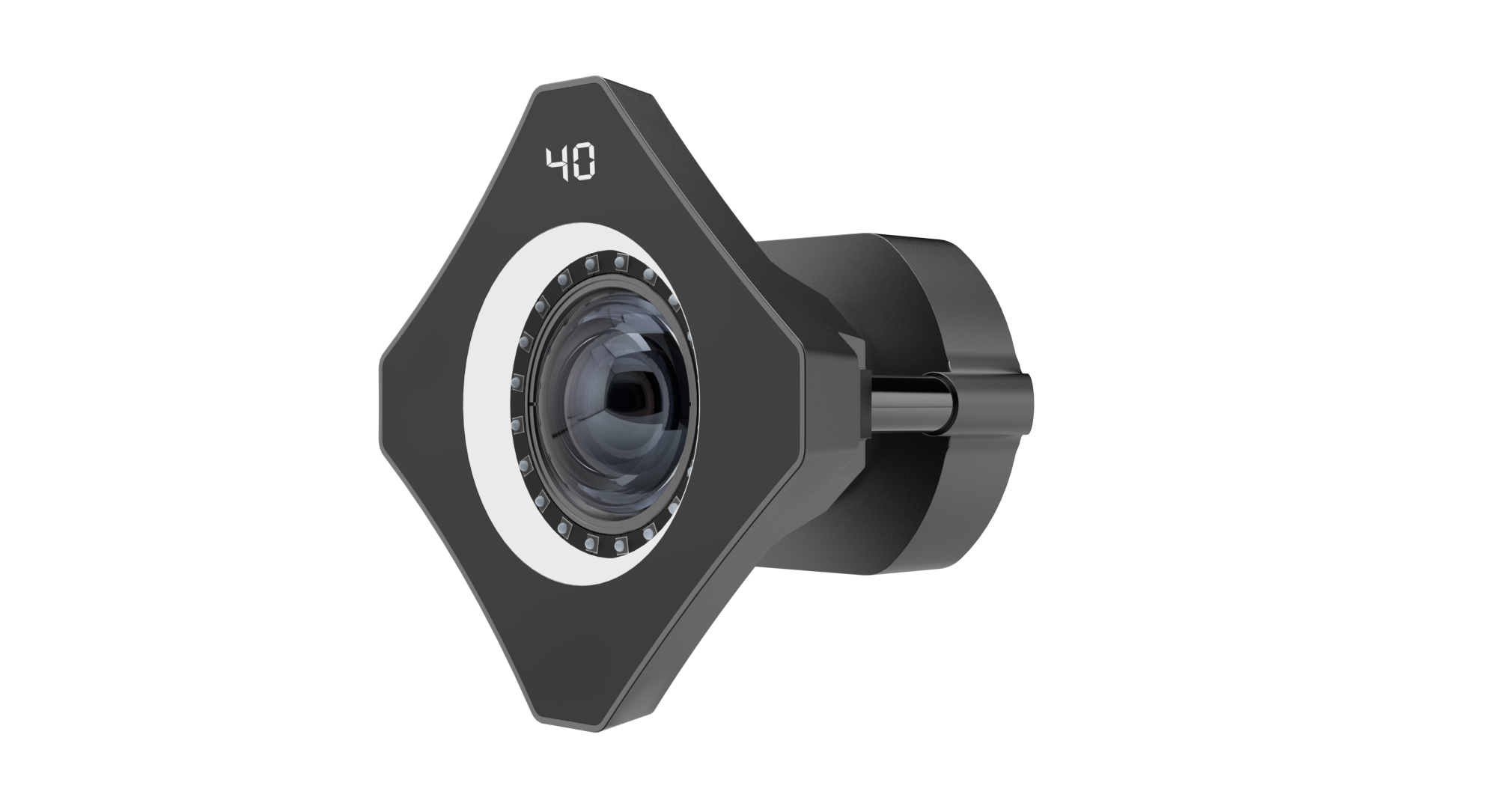

MC4000WFull-Field Coverage
Wide FOV, compatible across the full series

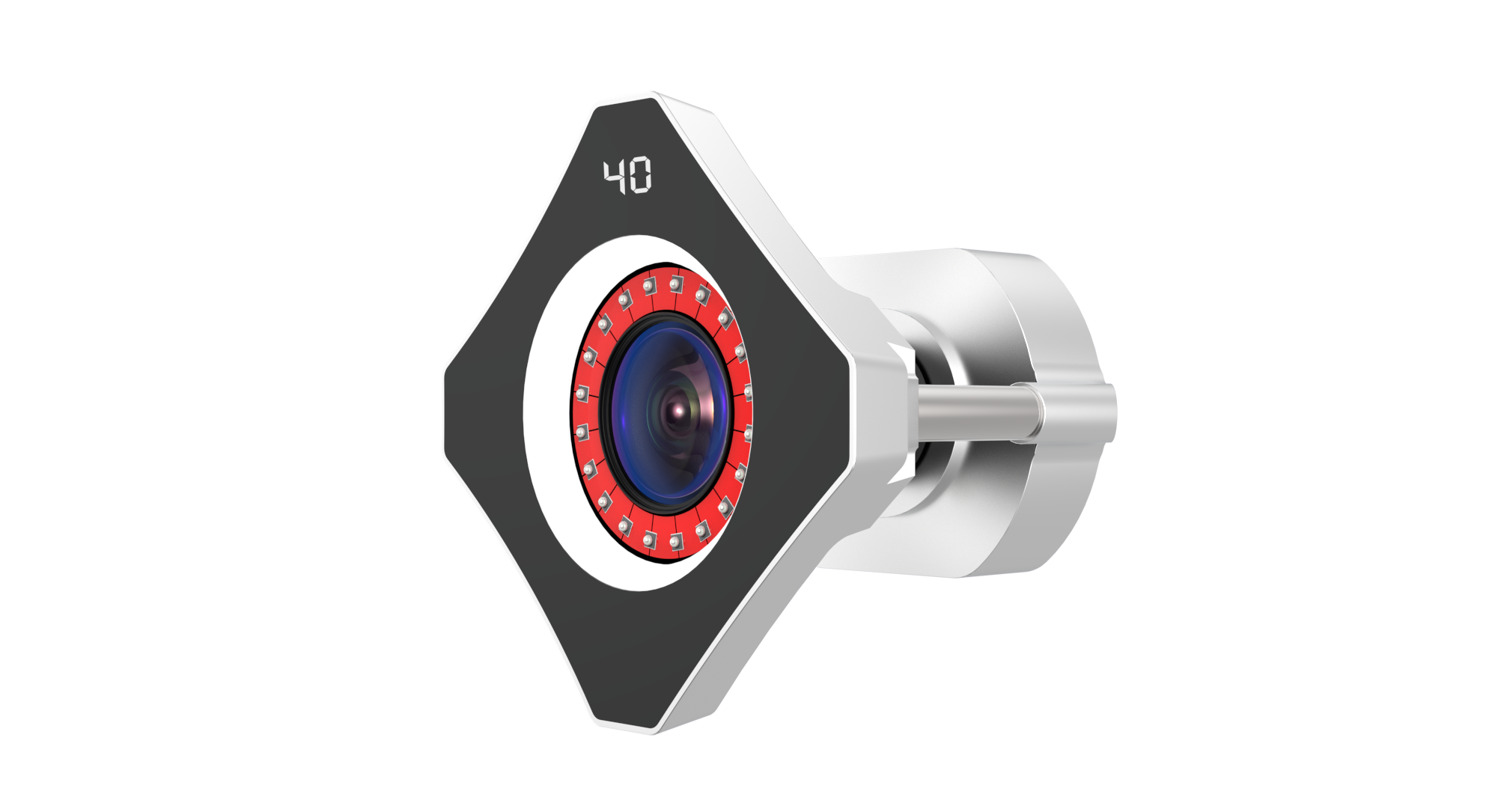

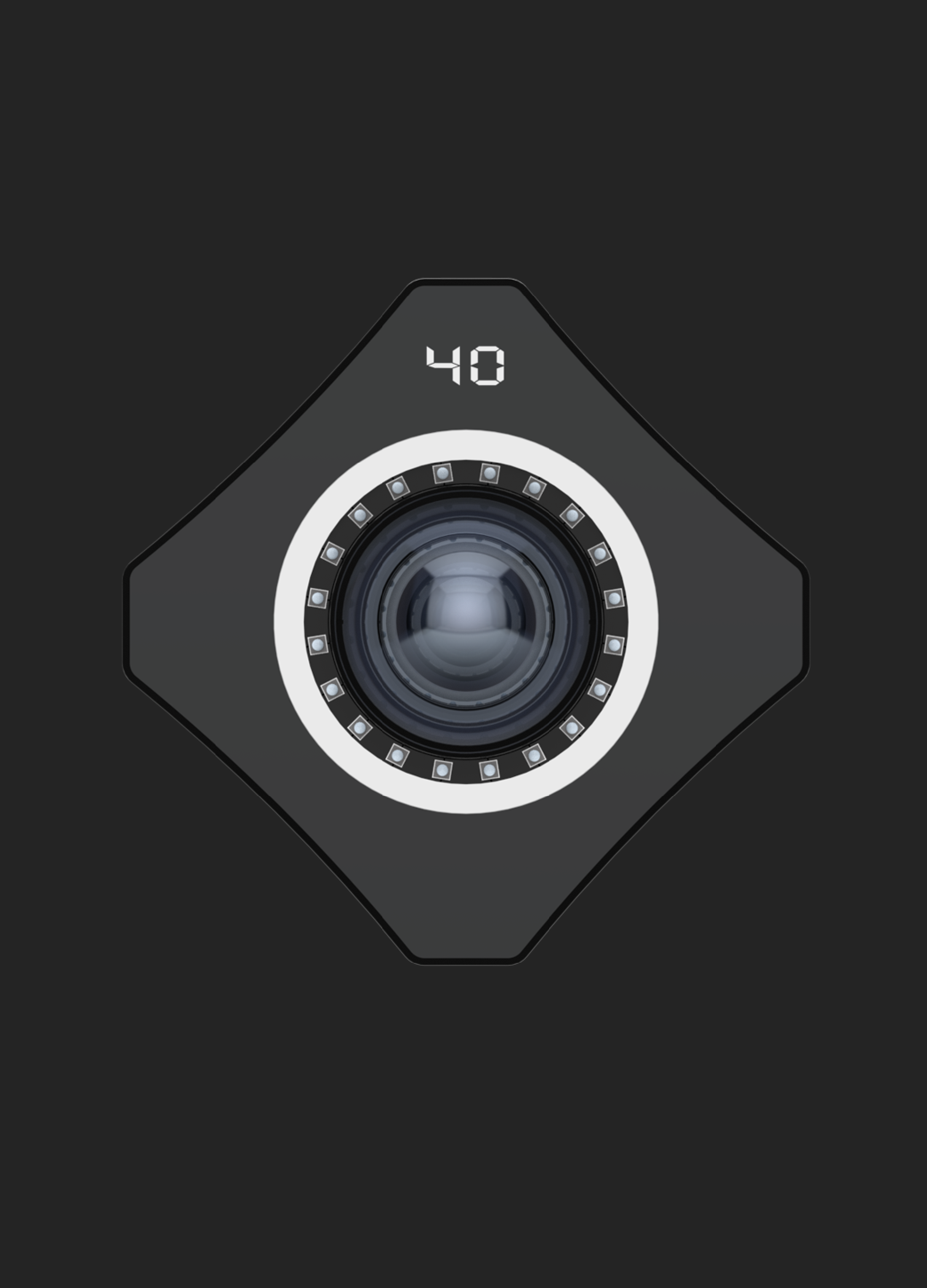

MC4000Large-Volume Capture
High-precision multi-target tracking over extended distances

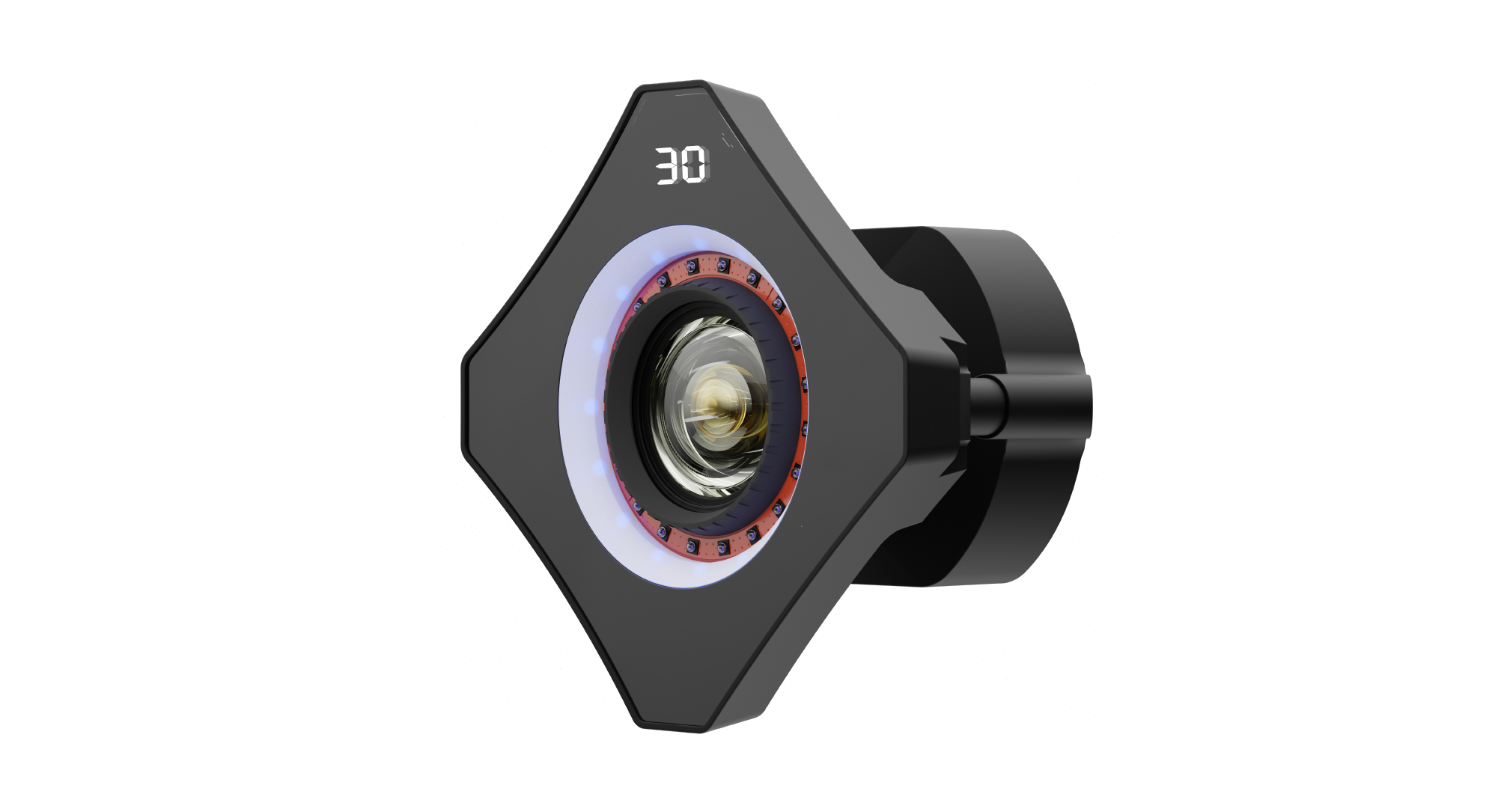

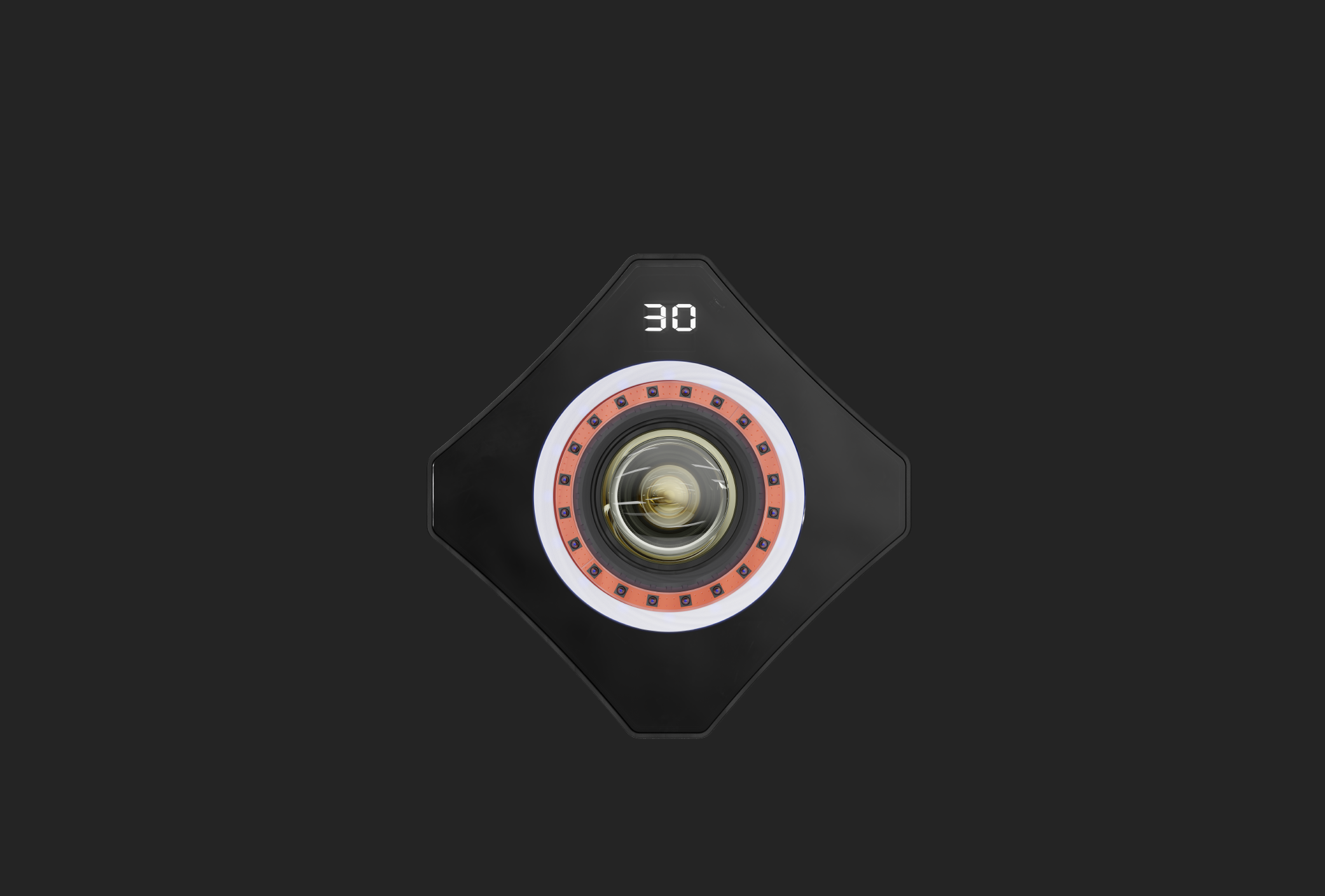

MC3000High Frame Rate&Low Latency
Industry-leading frame rate for high-speed capture

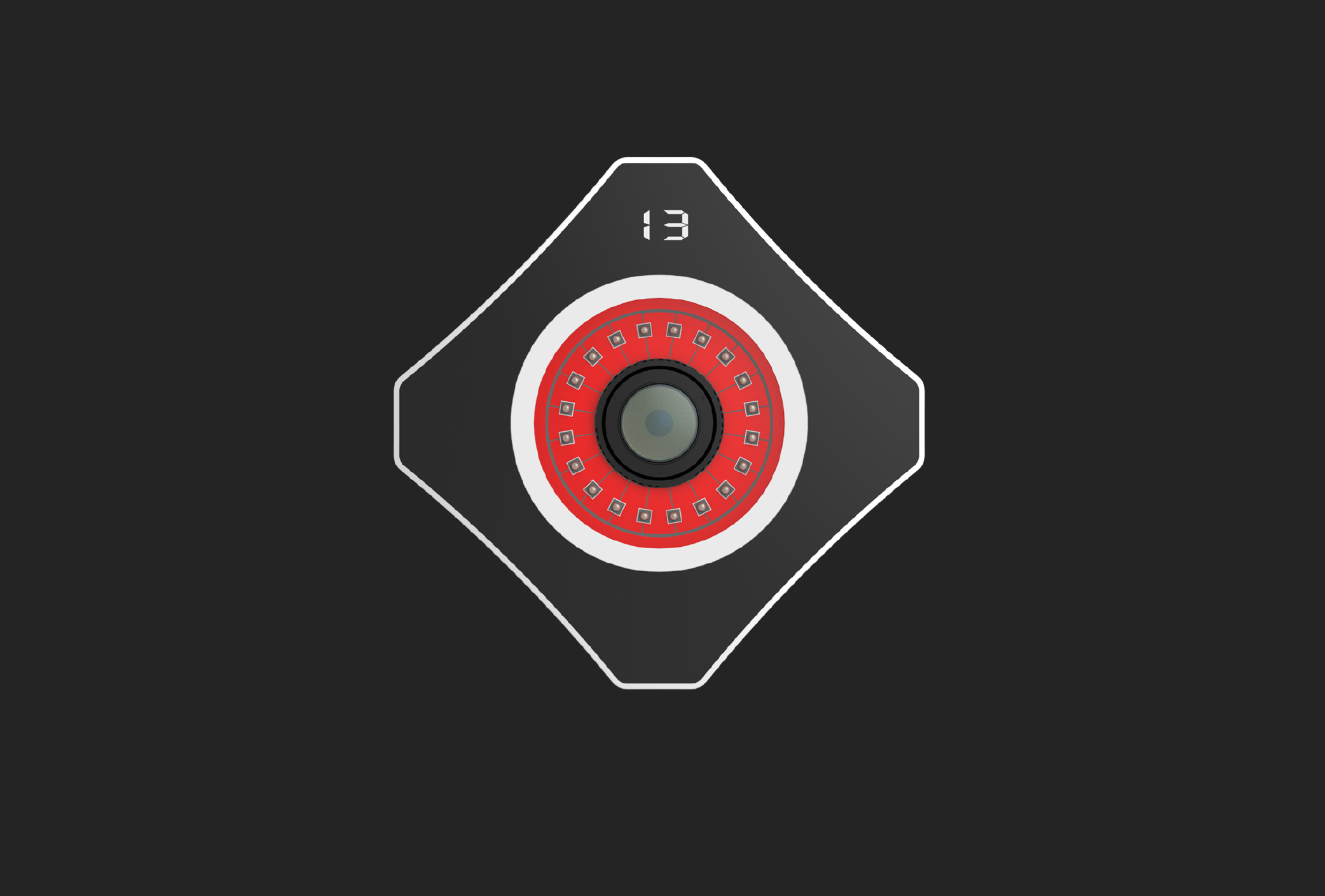

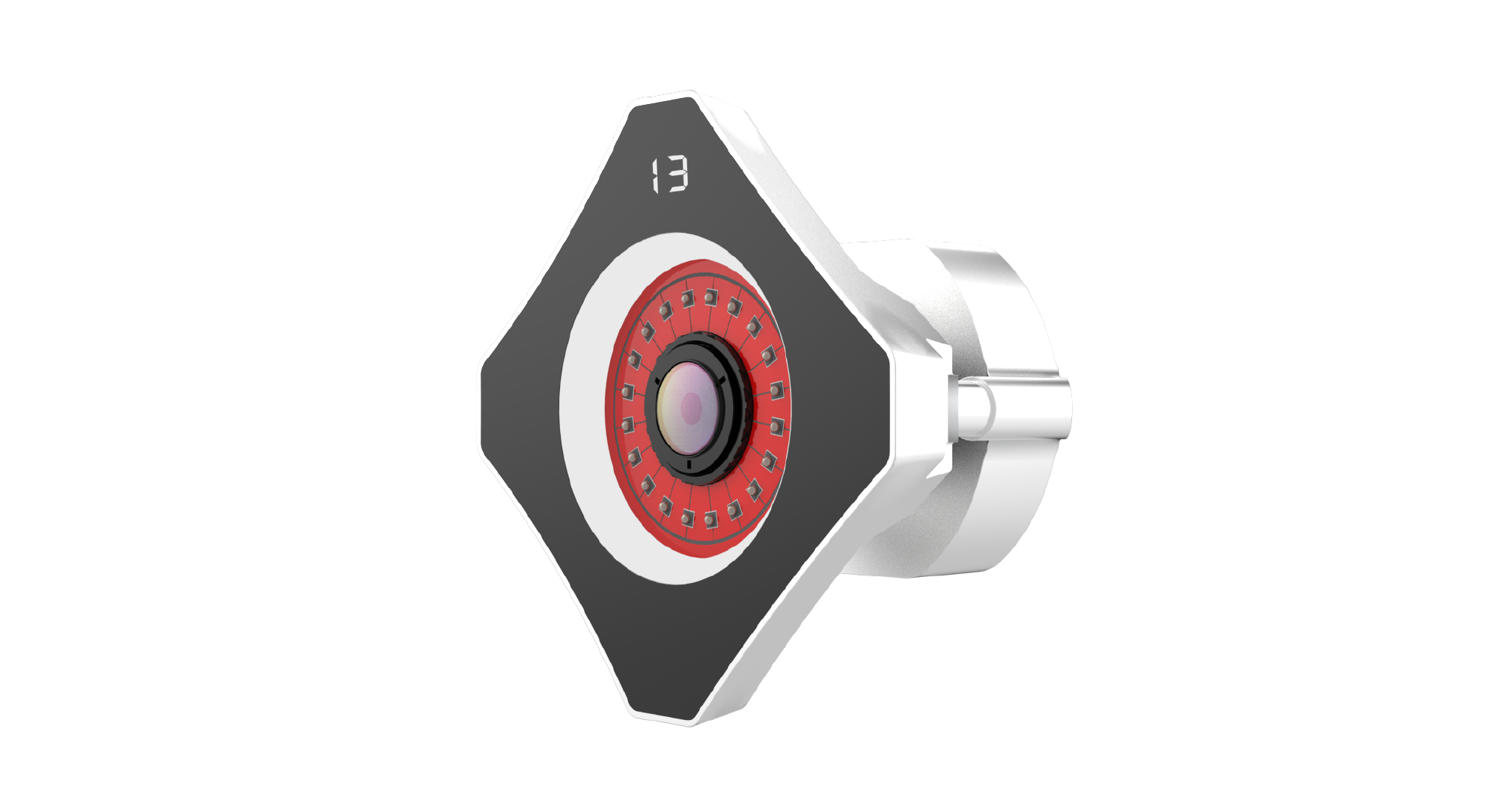

MC1300Broad Applicability
Powerful on-chip image processing capability

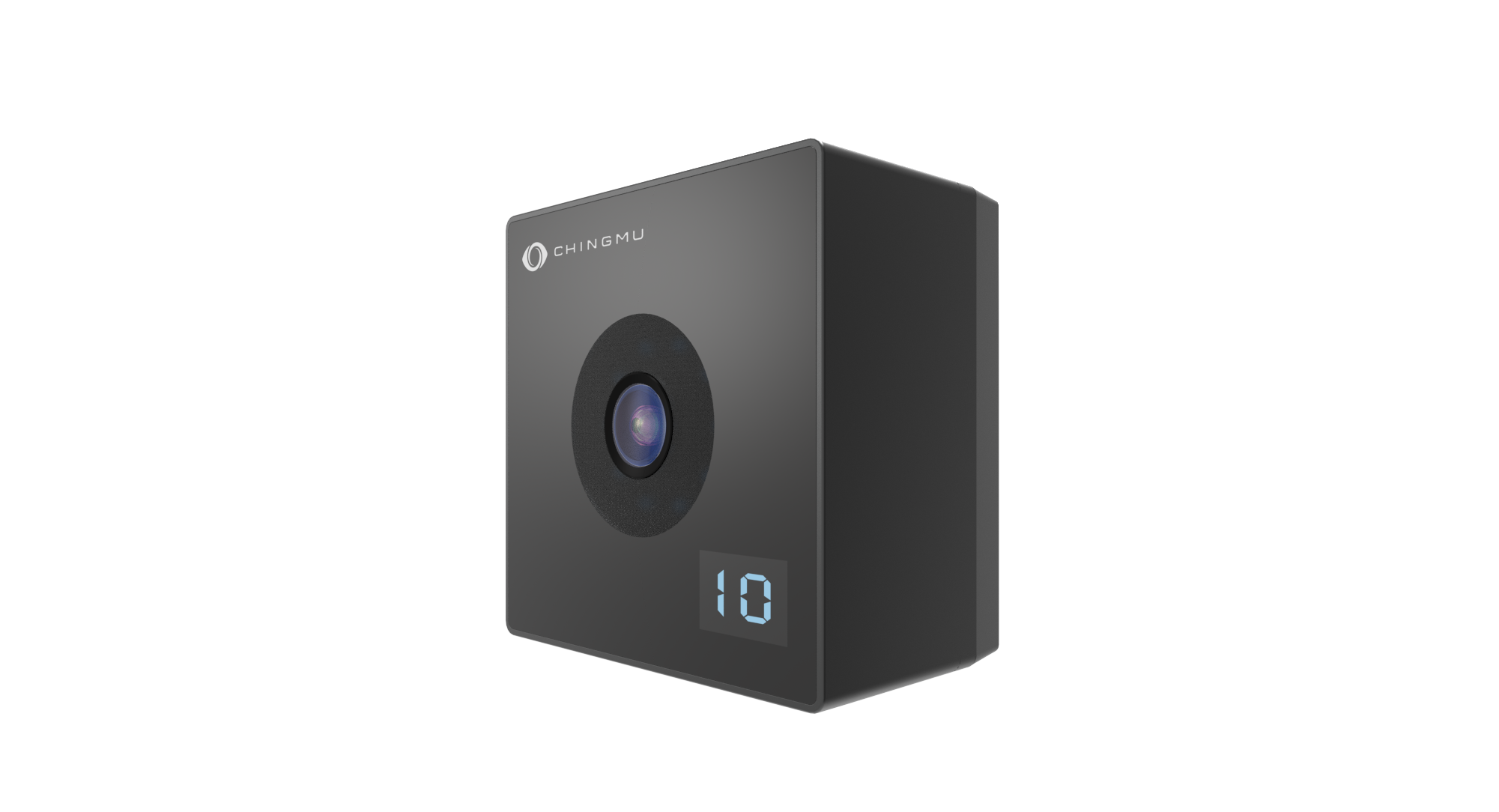

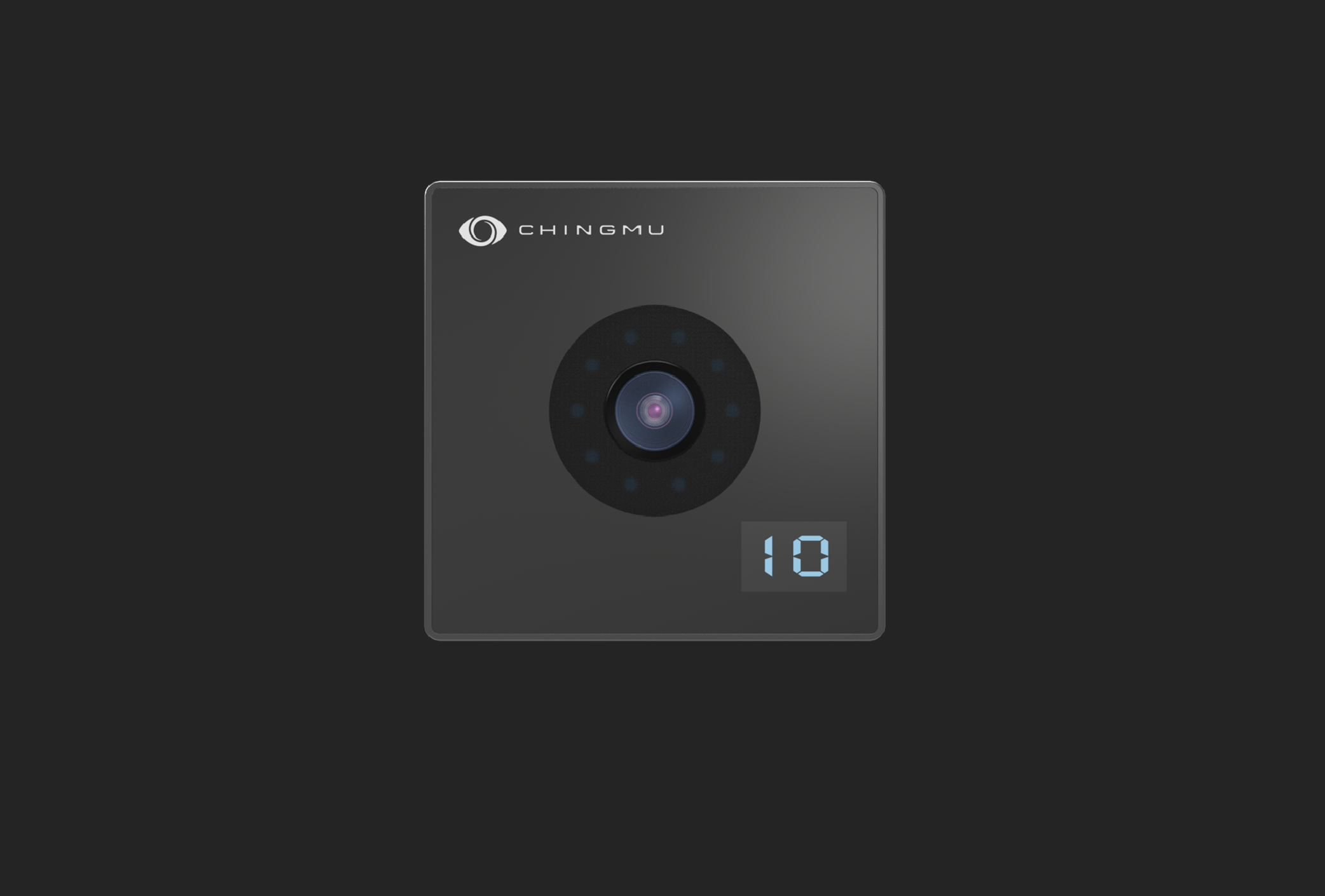

MC1000High Value
Entry-level optical motion capture

Detailed parameters, complete specifications

Model	MC1000	MC1300	MC3000	MC4000	MC4000W	Tailored Edition
Resolution	1280*1024	1280*1024	1936*1464	2048*2048	2048*2048	Customizable
Maximum Frame Rate	120fps	210fps	400fps	180fps	180fps	Customizable
Focal Length	3mm	4.0–12mm	5mm	12mm	6mm	Customizable
H FOV	90°	90°	82°	53°	89°	Customizable
V FOV	76°	70°	67°	53°	89°	Customizable
Max passive tracking distance*	10m	15m	25m	30m	20m	Customizable
Max active tracking distance*	20m	30m	50m	60m	40m	Customizable
3D Precision	±0.12mm	±0.08–0.12mm	±0.08mm	±0.06mm	±0.1mm	Customizable
Interface Type	RJ45	RJ45	RJ45	RJ45	RJ45	Customizable
Synchronization mode	Network	Network	Network	Network	Network	Customizable
Infrared fill light	Yes	Yes	Yes	Yes	Yes	Customizable
LED Quantity	10	20	—	—	—	Customizable
Optical Finger	No	Yes	Yes	Yes	Yes	Customizable
Full Body Tracking	Yes	Yes	Yes	Yes	Yes	Customizable
Outdoor enhancement	No	No	No	Yes	No	Customizable
Power	5–9W	5.5–18W	6–18W	13–24W	6–18W	Customizable
Image mode	Raw Grayscale	Raw Grayscale	Raw Grayscale	Raw Grayscale	Raw Grayscale	Customizable
Cascade Quantity	100+	100+	100+	100+	100+	Customizable

*Measurements were taken using a 16mm diameter marker. Observation range can be increased with supplemental light or larger markers.
