R3
Multi functional integration, one machine with multiple uses.The all-new AI reference camera R3 takes you to explore the new heights of motion capture technology!
AI unmarked motion capture enables more flexible capture
Relying on the CHINGMU intelligent algorithm, rapid calibration of targets can be achieved without wearing motion capture suits or marking points. The skeletal structure of characters in complex scenes such as multi person movements can be reconstructed, and real-time and accurate data information such as their motion posture and limb movements can be captured, presenting a stable and smooth capture effect.
Dual mode free switching to meet diverse needs
R3 has two modes of AI unmarked and marked capture, with AI mode capturing more easily and conveniently, highly reproducing the real movements of art and motion. There is a marking mode, which further improves the capture accuracy and meets the requirements of capturing higher details in scenes.
2K high-definition picture quality, with every detail fully displayed
The maximum resolution can reach 2048 * 1544, providing clear and delicate images with a clear and natural texture, giving a cinema level visual experience.
The highest frame rate is 663fps, providing a clear view of high-speed movements
R3 is capable of transmitting full HD video at a speed of 230 frames per second (fps) or marker data at a speed of 306 frames per second (fps). Based on window opening technology, it can adaptively adjust the frame rate and provide diversified recording modes. Among them, the highest frame rate can reach 663fps, which can capture the most primitive and realistic motion performance.
Multi perspective synchronous recording provides a more intuitive reference
Support synchronous recording of multiple cameras with different perspectives, ensuring the integrity of captured subject data, facilitating analysis and comparison of motion posture, and meeting the needs of sports science research, rehabilitation therapy, artistic and creative expression, etc.
Powerful compatibility and seamless integration across systems
R3 can widely support various software devices, systems, and communication protocols, for example, it can synchronize and link with devices such as electromyography and force measurement stations. Based on this advantage, it greatly expands your application requirements and makes the usage process smoother and more efficient.
Convenient deployment and flexible operation
Equipped with dual RJ45 interfaces, only one POE port is needed to achieve power supply and data transmission. Cascading multiple cameras for more efficient deployment and convenient use.
Comprehensive data repair function
For incomplete capture, repair tools can be used to instantly fix and provide accurate capture data.
User friendly, quick to get started
Multi language interface with one click switching and quick calibration function, even beginners can easily use it.
Support external microphone connection
The R3 camera also integrates a microphone interface, which can be connected to an external microphone to achieve complete recording and synchronized reception of video animation data audio. Integrating audio and video to reduce post-processing costs.
Learn about our detailed parameters.
- Resolution
- 1280*1080
- Frame Rate
- 120fps
- Focal Length
- 1.9mm
- FOV（HxV）
- 83° x 72°9°×69°
- Capture Distance*
- ≥20m
- Interface Type
- RJ45
- Light Source Type
- 850nm Infrared Light/White Light Fill Light
- Average Power Consumption
- 4w
- Dimensions (W x H x D)
- 98mm x113mm x47mm
*Measurements were taken using a 16mm diameter marker. The observation range can also be increased by supplementing light sources or using markers of larger diameter.

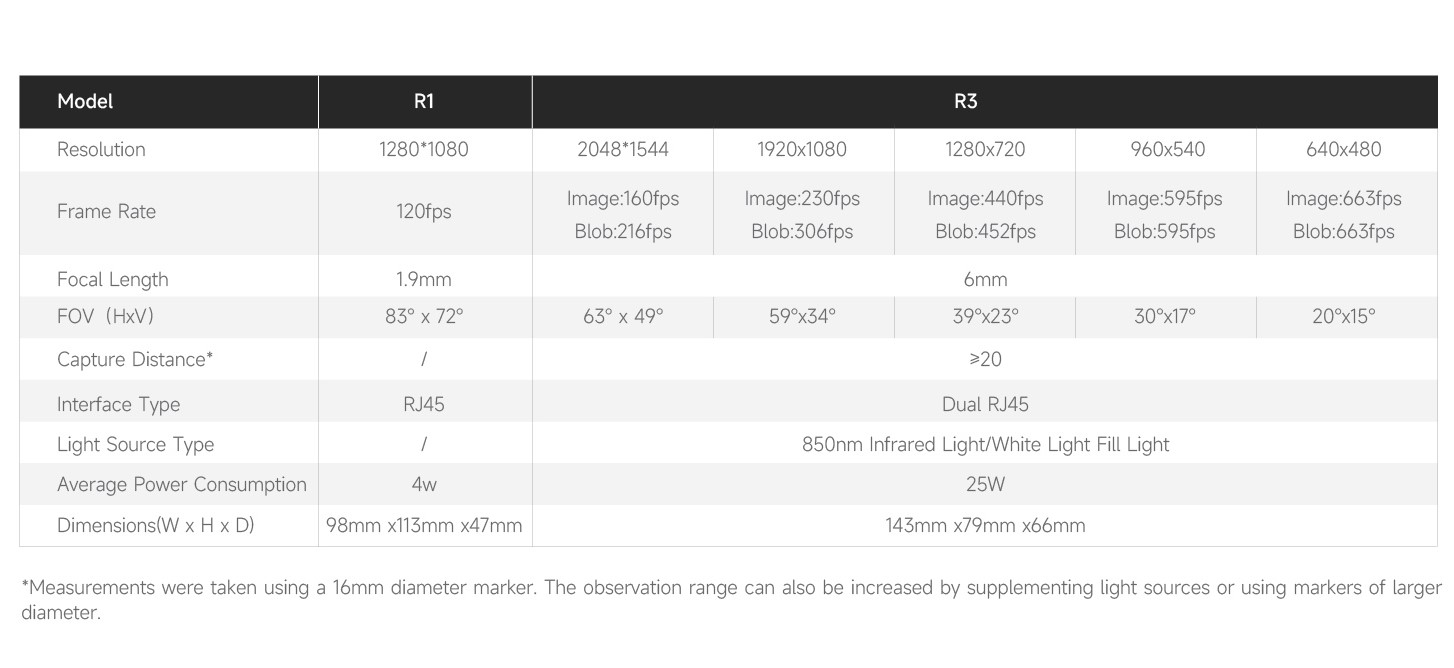

All Cameras
| Parameters | R1 | R3 | ||||
| Resolution | 1280*1080 | 2048*1544 | 1920*1080 | 1280*720 | 960*540 | 640*480 |
| Frame Rate | 120fps | Image:160fps Blob:216fps | Image:230fps Blob：306fps | Image:440fps Blob:452fps | Image:595fp Blob:595fps | Image:663ps Blob:663fps |
| Focal Length | 1.9mm | 6mm | ||||
| FOV（HxV） | 83° x 72° | 63° x 49 | 59°x34 | 39°x23° | 30°x17 | 20°x15° |
Capture Distance* | / | ≥20 | ||||
| Interface Type | RJ45 | 双RJ45 | ||||
| Light Source Type | / | 850nm Infrared Light/White Light Fill Light | ||||
Average Power Consumption | 4w | 25w | ||||
Dimensions (W x H x D) | 98mm x113mm x47mm | 143mm x79mm x66mm | ||||
*Measurements were taken using a 16mm diameter marker. The observation range can also be increased by supplementing light sources or using markers of larger diameter.
