The K Series(Kunpeng) cameras adopt advanced image processing technology and innovative design to ensure excellent performance and reliable motion capture effects. The motion capture process is more high-precision, high-efficiency, and high-quality, providing a comprehensive and accurate motion capture experience. Whether it is virtual reality, animation production, biomechanical research, or industrial applications, the K series cameras can meet the application requirements for high-quality motion capture.
High-precision motion capture.
Present the charm of 5120*5120 high resolution. Rich in details, long-distance capture reduces the picture distortion rate and breaks through a new height of motion capture cameras.
Low-latency and instant performance
The latency is as low as 2.8ms. Paired with a high frame rate of 360fps, the picture is smooth and natural, and the visual effect is more realistic.
Meet the imagined distance
Easily handle a shooting site of thousands of square meters. While maintaining a wide field of view and low latency standards, the active tracking distance can reach 90 meters, significantly improving the capture effect for large scenes and multiple people.
With IP65 protection level, it is durable.
With powerful protection performance, it can effectively resist interference such as dust, water flushing and corrosion, ensuring stable operation in various harsh environments.
Special lens superimposition effect.
High-precision and low-distortion lens. The optical distortion performance is further upgraded, less than -0.28%. It can calmly handle problems such as pillow distortion, barrel distortion, and linear distortion. Paired with a high-transmittance broadband anti-reflective coating, it ensures light transmittance and suppresses environmental reflection interference. The effect is superimposed and the fidelity rate is higher.
High-precision presentation
Equipped with advanced noise reduction technology and a high-performance processor, embedded with a high-performance FPGA and four DDR4 chips. The capture process is stable and accurate. Whether it is fast movement or subtle actions, it can be accurately locked and clearly presented.
Simple installation and easy operation.
The K series rejects cumbersome installation. The operation is clear and concise. A single line runs through the entire use process. The operation steps support guidance, providing true convenience.
Hundreds of multi-scenario application tests.
The K series cameras, combined with software systems for different shooting scenarios and application fields, have undergone nearly a hundred tests to meet your multi-faceted needs.
Fearless of heat and cold, extraordinary performance
With unique configuration, the combination of heat dissipation technology and thermal insulation material enables it to easily handle temperature environments from -30°C to 65°C, ensuring the accuracy and precision of capture.
With both active and passive markers
The coexistence of active and passive markers meets the lighting conditions of multiple environments, is easy to identify and track, and improves accuracy, stability and reliability, highlighting three performances.
Easy to identify the running status.
The running status is simple, easy to remember and easy to identify. It has progress display guidance. The working status and calibration progress are clear at a glance in different modes, improving the user experience and handling faults in time.
Multi-protocol compatibility
Support multiple protocols such as VRPN, TrackD, DTrack, and LiveStream, and be compatible with mainstream software.

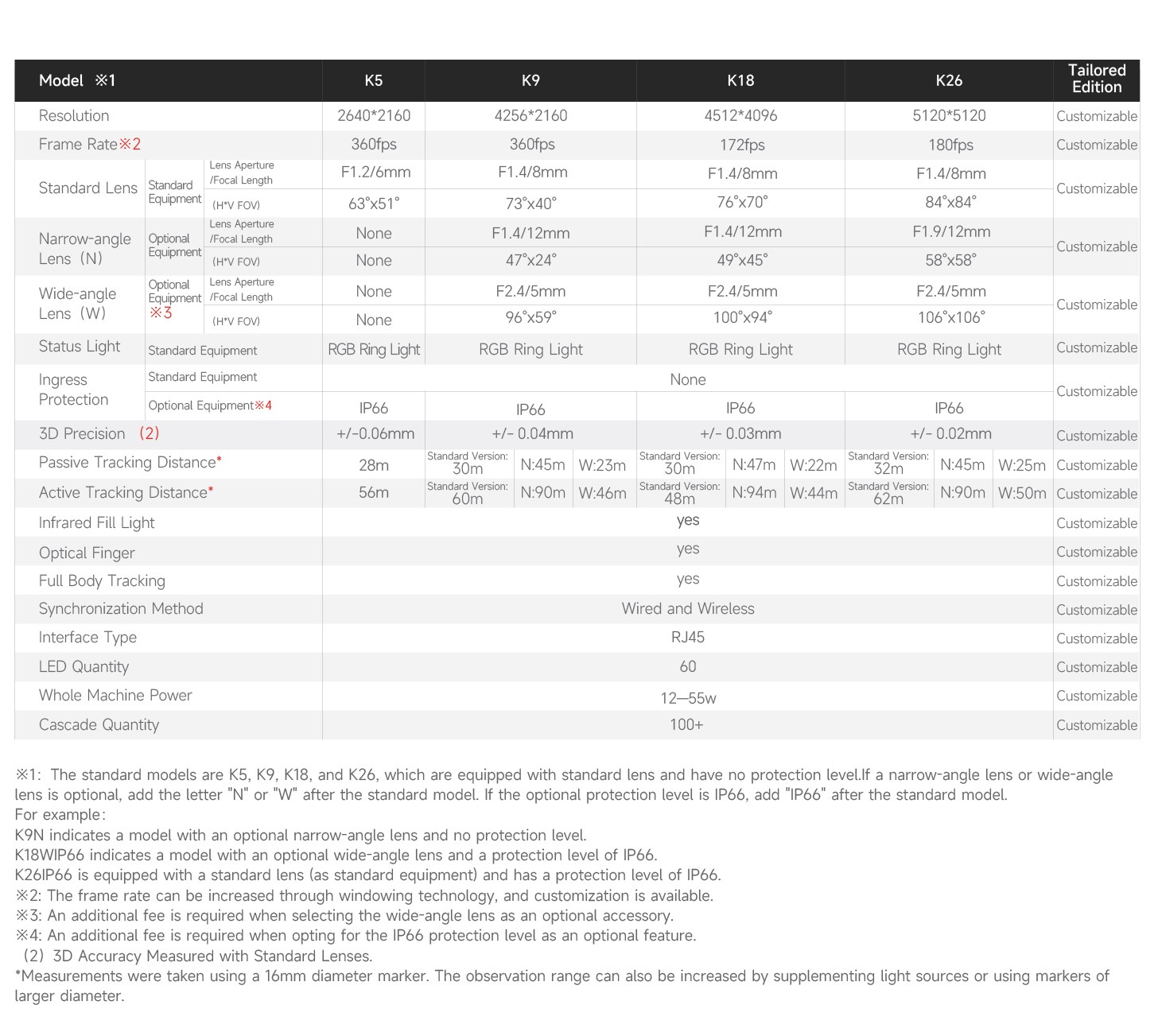

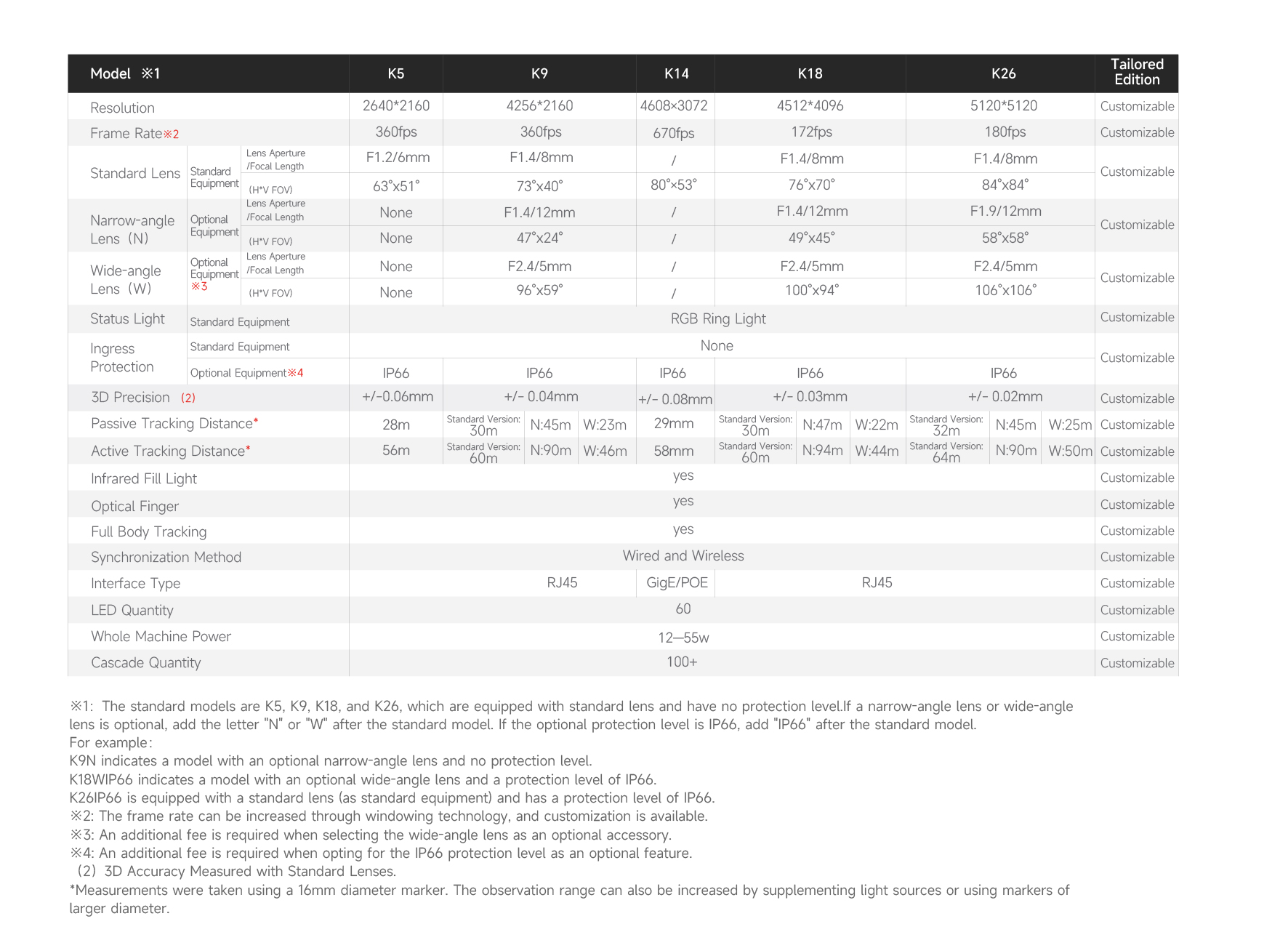

All Cameras
| Parameters | K5 | K9 | K18 | K26 | Customizable | ||||||
Resolution | 2640*2160 | 4256*2160 | 4512*4096 | 5120*5120 | Customizable | ||||||
| Maximum Frame Rate | 360fps | 360fps | 172fps | 150fps | Customizable | ||||||
Focal Length | 6mm | 12mm | 12mm | 12mm | Customizable | ||||||
| H FOV（1） | 63° | 47° | 65° | 98° | 52° | 86° | 107° | 58° | 94° | 107° | Customizable |
| V FOV（1） | 51° | 24° | 35° | 60° | 48° | 80° | 100° | 58° | 94° | 107° | Customizable |
| Passive Tracking Distance* | 30m | 41m | 30m | 20m | 40m | 24m | 19m | 45m | 28m | 24m | Customizable |
| Active Tracking Distance* | 60m | 82m | 60m | 40m | 80m | 48m | 38m | 90m | 56m | 48m | Customizable |
| 3D Precision（2） | +/-0.06mm | +/- 0.04mm | +/- 0.03mm | +/- 0.02mm | Customizable | ||||||
| Infrared Fill Light | yes | Customizable | |||||||||
| Optical Finger | yes | Customizable | |||||||||
| Full Body Tracking | yes | Customizable | |||||||||
| Ingress Protection | IP65 | Customizable | |||||||||
| Synchronization Method | Wired and Wireless | Customizable | |||||||||
| Interface Type | RJ45 | Customizable | |||||||||
| LED Quantity | yes | Customizable | |||||||||
| Whole Machine Power | 12-55w | Customizable | |||||||||
| Cascade Quantity | 100+ | Customizable | |||||||||
(1)The field of view angle refers to the value of the camera's standard lens.
(2)3D Accuracy Measured with Standard Lenses.
*Measurements were taken using a 16mm diameter marker. The observation range can also be increased by supplementing light sources or using markers of larger diameter.
