U4
Domestic self-developed, high-precision and high-speed underwater motion capture, meeting application scenarios such as underwater film and television animation, underwater positioning, ship design, diving research, hydrodynamic laboratories, underwater rehabilitation, etc.
High Precision
The frame rate is up to 180fps, the resolution can reach 2048 × 2048, 40m high-speed underwater motion capture and data stability.
Low Latency
With latency as low as 5.5ms, 6DOF data is transmitted in real-time to third-party applications and can also be synchronized with external devices.
Anti-corrosion and Durable
IP68 waterproof, has passed 100 meters deep pressure test, anti-corrosion protection, suitable for salt water tanks and chlorinated swimming pools, 24h × 365 uninterrupted use.
Ease of Use and Wide Range of Applications
Compatible with a variety of mainstream third-party software, it can meet the application needs of underwater motion capture in various fields on the market.
Convenient and easy to use
The body is compact and lightweight, allowing trouble-free operation at any time, and supports installation with suction cups or fixed brackets.
2 types of lenses are optional, covering a wide range of captures
Currently, the UW4000 camera has two lenses to choose from. The normal FOV can reach 49°×49°, and the wide-angle FOV can reach 69°×69°.
Worry-free shopping, nanny-level professional pre-sales and after-sales services
Professional technicians will come to your door for installation, provide one-on-one online and offline training and answer questions, and teach you how to use it, allowing you to easily master the product and enjoy a worry-free experience!
Learn about our detailed parameters.
- Resolution
- 2048*2048
- Frame Rate
- 180fps
- Focal Length
- 12.5/6mm
- H FOV
- 49°/69°
- V FOV
- 49°/69°
- Tracking Distance*
- 20m/14m
- Ingress Protection
- IP68
- Maximum Depth
- 100m
- Power
- 4-16w
*Depends on the turbidity of water
*Using 19mm-diameter markers. To increase the observation distance, supplementary lighting, larger markers, or active markers can be applied.
(1)The field of view angle refers to the value of the camera's standard lens.

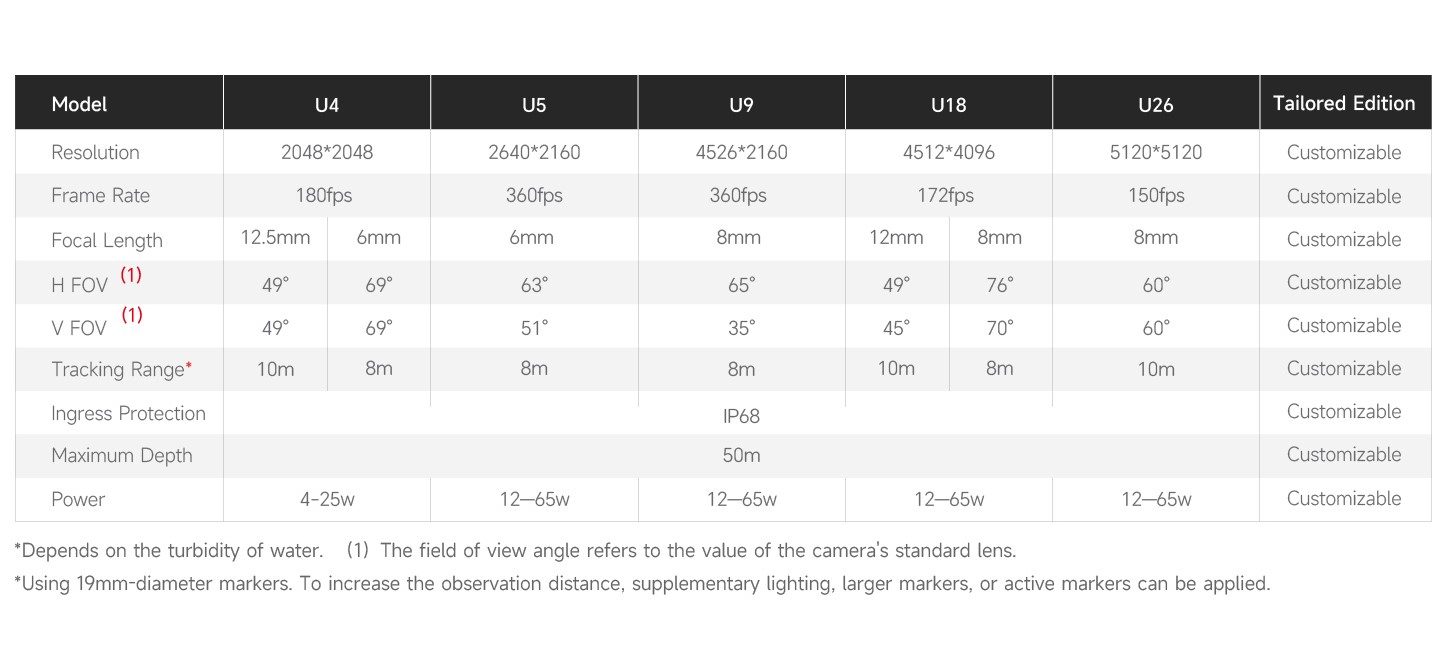

All Cameras
| Parameters | U4 | U5 | U9 | U18 | U26 | Customizable | |||||||
| Resolution | 2048*2048 | 2640*2160 | 4256*2160 | 4512*4096 | 5120*5120 | Customizable | |||||||
| Frame Rate | 180fps | 360fps | 360fps | 172fps | 150fps | Customizable | |||||||
| Focal Length | 12.5/6mm | 6mm | 12mm | 12mm | 12mm | Customizable | |||||||
| H FOV | 49° | 69° | 63° | 47° | 65° | 98° | 52° | 86° | 107° | 58° | 94° | 107° | Customizable |
| V FOV | 49° | 69° | 51° | 24° | 35° | 60° | 48° | 80° | 100° | 58° | 94° | 107° | Customizable |
| Tracking Range | 20m | 14m | 23m | 35m | 25m | 17m | 30m | 18m | 15m | 33m | 20m | 18m | Customizable |
Ingress Protection | IP68 | Customizable | |||||||||||
| Maximum Depth | 100 | Customizable | |||||||||||
| Power | 4-16w | 12-55w | Customizable | ||||||||||
*Depends on the turbidity of water
*Using 19mm-diameter markers. To increase the observation distance, supplementary lighting, larger markers, or active markers can be applied.
(1)The field of view angle refers to the value of the camera's standard lens.
