MC4000
Supporting thousands of plane motion captures, high precision, and a passive maximum tracking distance of 30 meters, the MC4000 becomes the prime choice for large space multi-target tracking.
Far Distance
With a large aperture of 1.8 and a main light incident angle of 23°, the lens can still sharply capture faint optical marker signals even in extremely dark environments. The maximum tracking distance for passive reflective points can reach up to 30 meters, while for active reflective points, it can reach up to 60 meters or even further.
High Accuracy
A tailor-made high-precision, low-distortion lens, with optical distortion less than -1.36%. The lens is composed of multiple hand-polished optical lenses, and its 5 million pixel resolution perfectly matches the 4.1 million pixel sensor of 1 inch. The lens surface is coated with a high-transparency, wide-band anti-reflective coating, which can effectively suppress reflected light in the motion capture field.
Intuitive Status Indication
The tri-color LED ring at the front of the lens can change different colors and flashing frequencies. Thanks to this, the different working states of the camera can be clearly seen even from a distance.
Passive Cooling
The large heat sink on the back of the light panel, with its enclosed design and passive cooling, maintains high performance while keeping away from the interference of dust, water, and noise.
Built-in Inertial Sensor
The device comes with a built-in 9-axis inertial sensor. The gyroscope supports a programmable FSR (Full Scale Range) of up to ±2000 dps (degrees per second), the accelerometer supports a programmable FSR of up to ±16g, and the 3-axis compass has a wide range of up to ±4900μt. This allows for effective real-time monitoring of the camera's status.
Supports active/passive tagging
It is compatible with both active and passive tags. Individual encoding can be performed on active tags, and the tracking distance is further improved under active light mode, with stronger resistance to interference. Regardless of the type of tag, the position tracking accuracy is 0.1mm, the angle accuracy is 0.1°, and the repeat error is less than 0.02mm.
Powerful on-chip image processing capabilities
It embeds a high-performance FPGA and two 512MB DDR3 chips, a dual-core ARM A9, 16MB QSPI, and 4GB on-chip storage, which allows for real-time synchronous computation of data captured by the sensor during the photography process.
Mixed use with other cameras
The MC series cameras use a compatible design, thus they can be mixed and used according to actual conditions.
Easy Installation
No POE splitter is needed, and functions such as power supply, data transmission, and synchronization can be completed with one network cable. A single network cable can be up to 100 meters long, and can also be extended through POE switch relays.
Supports synchronization with other devices
MC series cameras can be synchronized with various signals such as VESA, LTC, and GENLOCK with synchronizers, and can also synchronously drive any third-party equipment such as force plates, myoelectrics, and projectors.
Reliable Performance
Reliable performance. Our cameras have passed ROHS, CE, FCC, and VCCI certifications. At the same time, the camera's performance in high and low temperature environments, vibration environments, and humid environments has been certified by professional testing agencies.
- Motion Capture Experts For Every Scene
- ChingMu's MC enterprise-level optical motion capture camera series is suitable for different usage scenarios, industries and environments. Paired with different software customizations, it can help you complete every space motion capture more efficiently, comprehensively and conveniently. A full-stack motion capture solution and a complete after-sales service system relieve your worries.
Continuous calibration in progress
After continuous calibration
6DOF
3D Coordinates
real-time preview
Mainstream software
High-precision tracking performance and deep compatibility adaptation.
It supports rigid body positioning, limb tracking, finger tracking, and 6DOF tracking, providing real-time preview of the 3D spatial coordinates and motion state trajectories of the tracking target. It also supports various protocols such as VRPN, TrackD, DTrack, LiveStream, etc., and is compatible with all mainstream software.
Learn about our detailed parameters
- Focal Length (mm)
- 12
- Camera Latency (ms)
- 5.5
- Interface Type
- GigE/PoE+
- Max Frame Rate
- 180Hz
- Synchronous Mode
- Network
- Infrared Fill Light
- Yes
- Resolution Ratio
- 2048*2048
- Number of LEDs
- 20
- Finger Tracking
- Yes
- Full Body Tracking
- Yes
- Vertical Field Of View
- 53
- Horizontal Field Of View
- 53
- Max Power Consumption (w)
- 6-18
- Image Type
- Raw Grayscale, Object
- Number Of Cascades
- 100+
- 3D Accuracy
- +/-0.06mm
- Passive Tracking Distance
- 30m*
- Active Tracking Distance
- 60m*

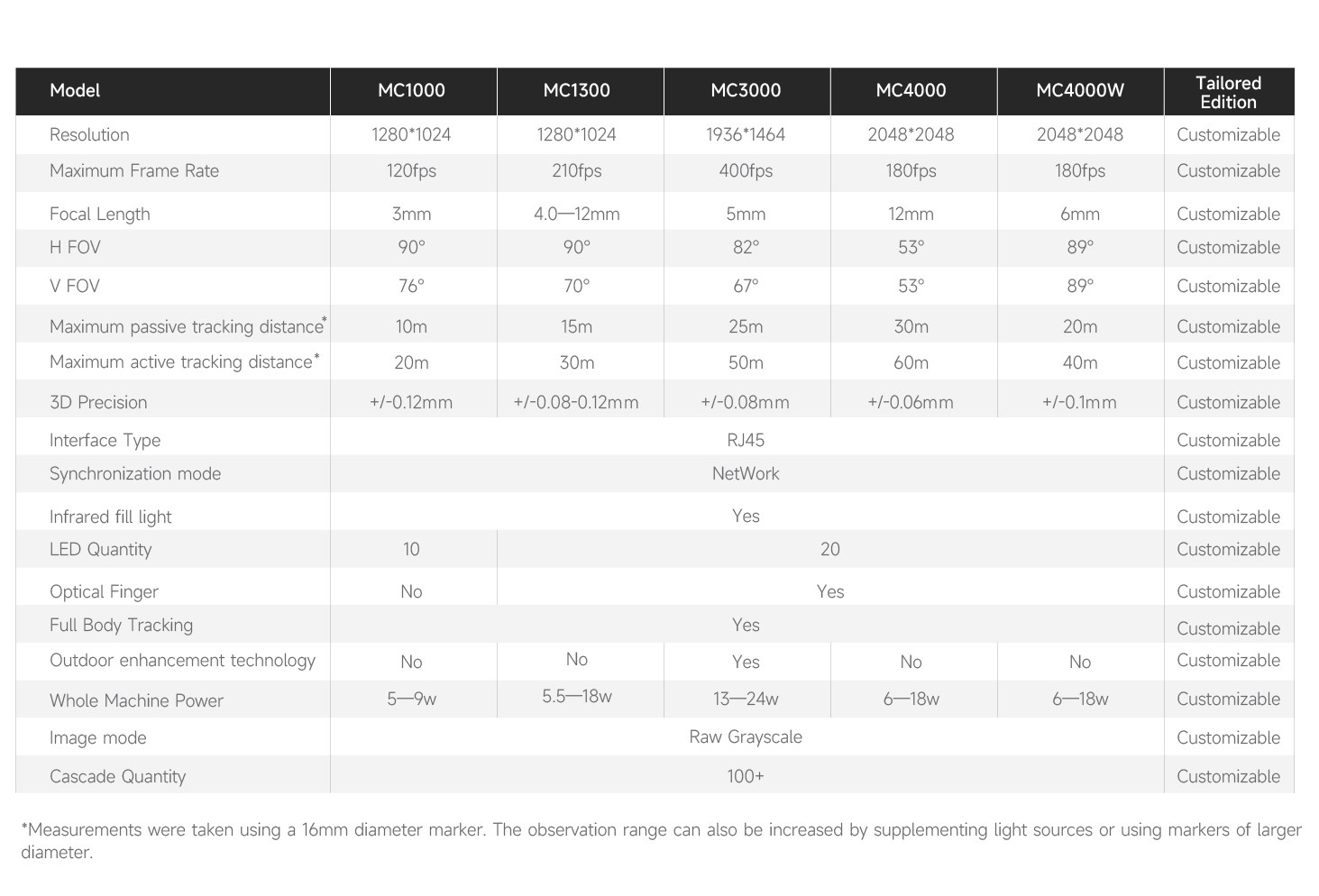

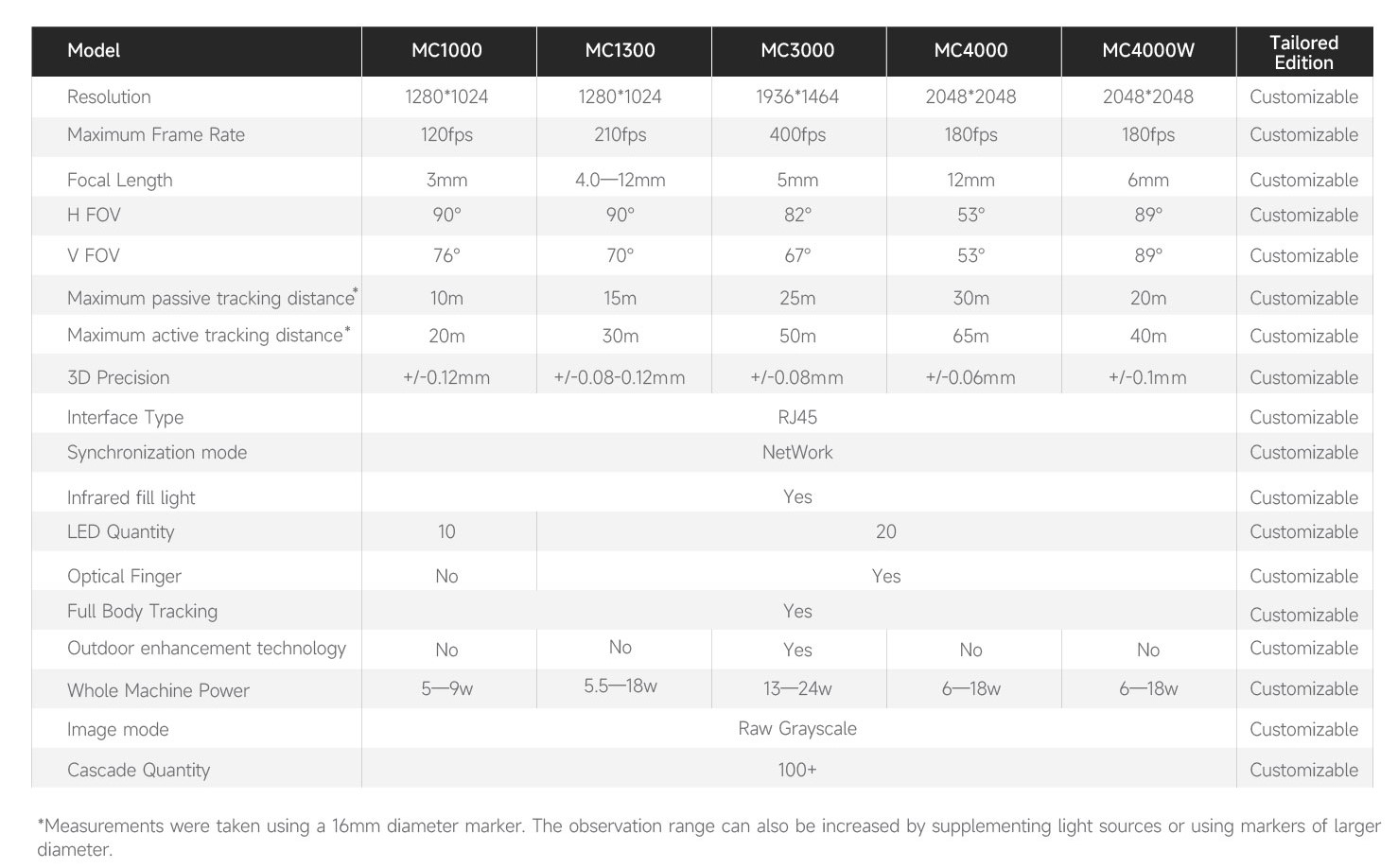

All Cameras
| Model: | MC1000 | MC1300 | MC2000 | MC3000 | MC4000 | MC4000W |
| Focal Length (mm) | 3 | 4.0-12 | 6 | 5 | 12 | 6 |
| Camera Latency (ms) | 8.3 | 4.8 | 2.6 | 2.5 | 5.5 | 5.5 |
| Interface Type | GigE/PoE+ | GigE/PoE+ | GigE/PoE+ | GigE/PoE+ | GigE/PoE+ | GigE/PoE+ |
| Max Frame Rate | 120Hz | 210Hz | 380Hz | 400Hz | 180Hz | 180Hz |
| Synchronous Mode | Network | Network | Network | Network | Network | Network |
| Infrared Fill Light | Yes | Yes | Yes | Yes | Yes | Yes |
| Resolution Ratio | 1280*1024 | 1280*1024 | 2048*1088 | 1936*1464 | 2048*2048 | 2048*2048 |
| Number of LEDs | 10 | 20 | 20 | 20 | 20 | 20 |
| Finger Tracking | No | Yes | Yes | Yes | Yes | Yes |
| Full Body Tracking | Yes | Yes | Yes | Yes | Yes | Yes |
| Vertical Field Of View | 76 | 70 | 49 | 67 | 53 | 89 |
| Horizontal Field Of View | 90 | 90 | 89 | 82 | 53 | 89 |
| Max Power Consumption (w) | 6-10 | 6-18 | 6-18 | 13-24 | 6-18 | 6-18 |
| Image Type | Raw Grayscale, Object | Raw Grayscale, Object | Raw Grayscale, Object | Raw Grayscale, Object | Raw Grayscale, Object | Raw Grayscale, Object |
| Number Of Cascades | 100+ | 100+ | 100+ | 100+ | 100+ | 100+ |
| 3D Accuracy | +/-0.12mm | +/-0.08mm-0.12mm | +/-0.1mm | +/-0.08 | +/-0.06mm | +/-0.1mm |
| Passive Tracking Distance | 10 | 15 | 20 | 25 | 30 | 20 |
| Active Tracking Distance | 20 | 30 | 40 | 50 | 60 | 40 |
*Measured using a 16mm diameter marker. The observation distance can also be increased by supplementing the light source or using a larger diameter marker.
