MC1000
Excellent accuracy and resolution, perfect combination of performance and price, often serving small laboratories and studios.
Extra Large FOV
The unique anti-lens distortion algorithm enables the MC1000's FOV to be as high as 96°X76°, while maintaining the same accuracy.
Convenient and Easy to Use
Built-in high-energy near-infrared LED flash with a wavelength of 850nm. The intensity can be adjusted. There is a digital tube in front of the lens to indicate the camera's working status and calibration progress. It is convenient and intuitive. It has a smart body. The installation distance is 100 meters. It supports 360 degrees horizontally and 150 degrees vertically. Angle rotation, combined with large FOV, is particularly suitable for deployment in small spaces.
Strong Stability
Infrared optical tracking, no interference from electricity, magnetism and sound, large heat sink on the back, closed design, passive heat dissipation, keeping away from dust, water and noise interference while maintaining high performance.
Built-in Inertial Sensor
Built-in 9-axis inertial sensor, gyroscope programmable FSR supports up to ±2000 dps, accelerometer programmable FSR supports up to ±16g, 3-axis compass range is wide to ±4900μt, which can effectively monitor camera status in real time.
Supports active/passive Markers
Compatible with active and passive marker points, active marker points can be individually encoded. In active light mode, the tracking distance is further improved and the anti-interference ability is stronger. No matter what kind of marking point, the position tracking accuracy is 0.1mm, the angle accuracy is 0.1°, and the repetition error is less than 0.02mm.
Powerful on-chip Image Processing Capabilities
Embedded with high-performance FPGA and two 512MB DDR3 chips, dual-core ARM A9, 16MB QSPI, and 4GB on-chip storage, it can perform real-time synchronous analysis of data captured by the sensor during the photo taking process.
Mixed use with other cameras
The MC series cameras use a compatible design, thus they can be mixed and used according to actual conditions.
Easy Installation
No POE splitter is needed, and functions such as power supply, data transmission, and synchronization can be completed with one network cable. A single network cable can be up to 100 meters long, and can also be extended through POE switch relays.
Supports synchronization with other devices
MC series cameras can be synchronized with various signals such as VESA, LTC, and GENLOCK with synchronizers, and can also synchronously drive any third-party equipment such as force plates, myoelectrics, and projectors.
Reliable Performance
Reliable performance. Our cameras have passed ROHS, CE, FCC, and VCCI certifications. At the same time, the camera's performance in high and low temperature environments, vibration environments, and humid environments has been certified by professional testing agencies.
- Motion Capture Experts For Every Scene
- ChingMu's MC enterprise-level optical motion capture camera series is suitable for different usage scenarios, industries and environments. Paired with different software customizations, it can help you complete every space motion capture more efficiently, comprehensively and conveniently. A full-stack motion capture solution and a complete after-sales service system relieve your worries.
Continuous calibration in progress
After continuous calibration
6DOF
3D Coordinates
real-time preview
Mainstream software
High-precision tracking performance and deep compatibility adaptation.
It supports rigid body positioning, limb tracking, finger tracking, and 6DOF tracking, providing real-time preview of the 3D spatial coordinates and motion state trajectories of the tracking target. It also supports various protocols such as VRPN, TrackD, DTrack, LiveStream, etc., and is compatible with all mainstream software.
Learn about our detailed parameters
- Focal Length (mm)
- 3
- Camera Latency (ms)
- 8.3
- Interface Type
- GigE/PoE+
- Max Frame Rate
- 120
- Synchronous Mode
- Network
- Infrared Fill Light
- Yes
- Resolution Ratio
- 1280*1024
- Number of LEDs
- 10
- Finger Tracking
- No
- Full Body Tracking
- Yes
- Vertical Field Of View
- 76
- Horizontal Field Of View
- 90
- Max Power Consumption (w)
- 6-10
- Image Type
- Raw Grayscale, Object
- Number Of Cascades
- 100+
- 3D Accuracy
- +/-0.12mm
- Passive Tracking Distance
- 10m*
- Active Tracking Distance
- 20m*

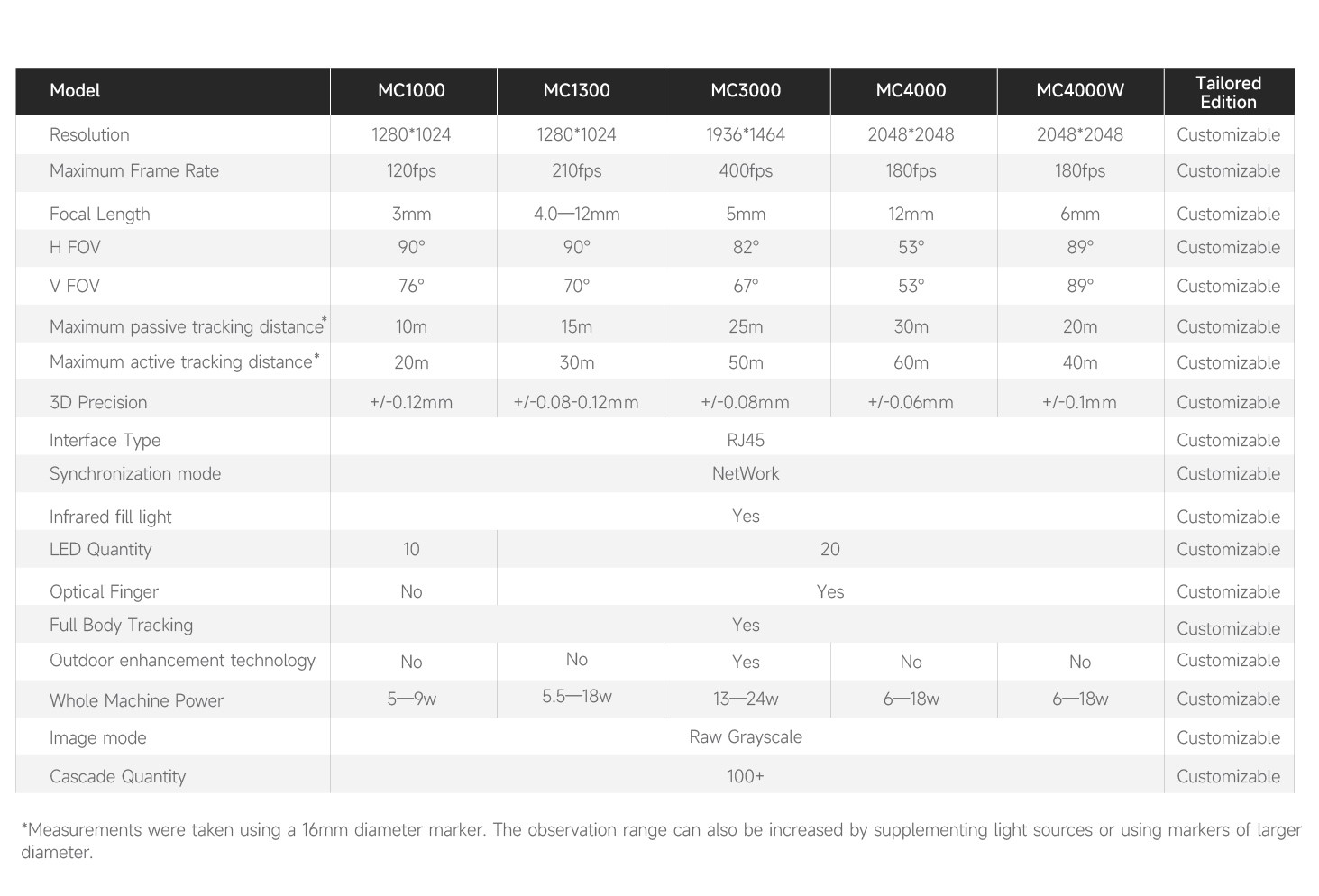

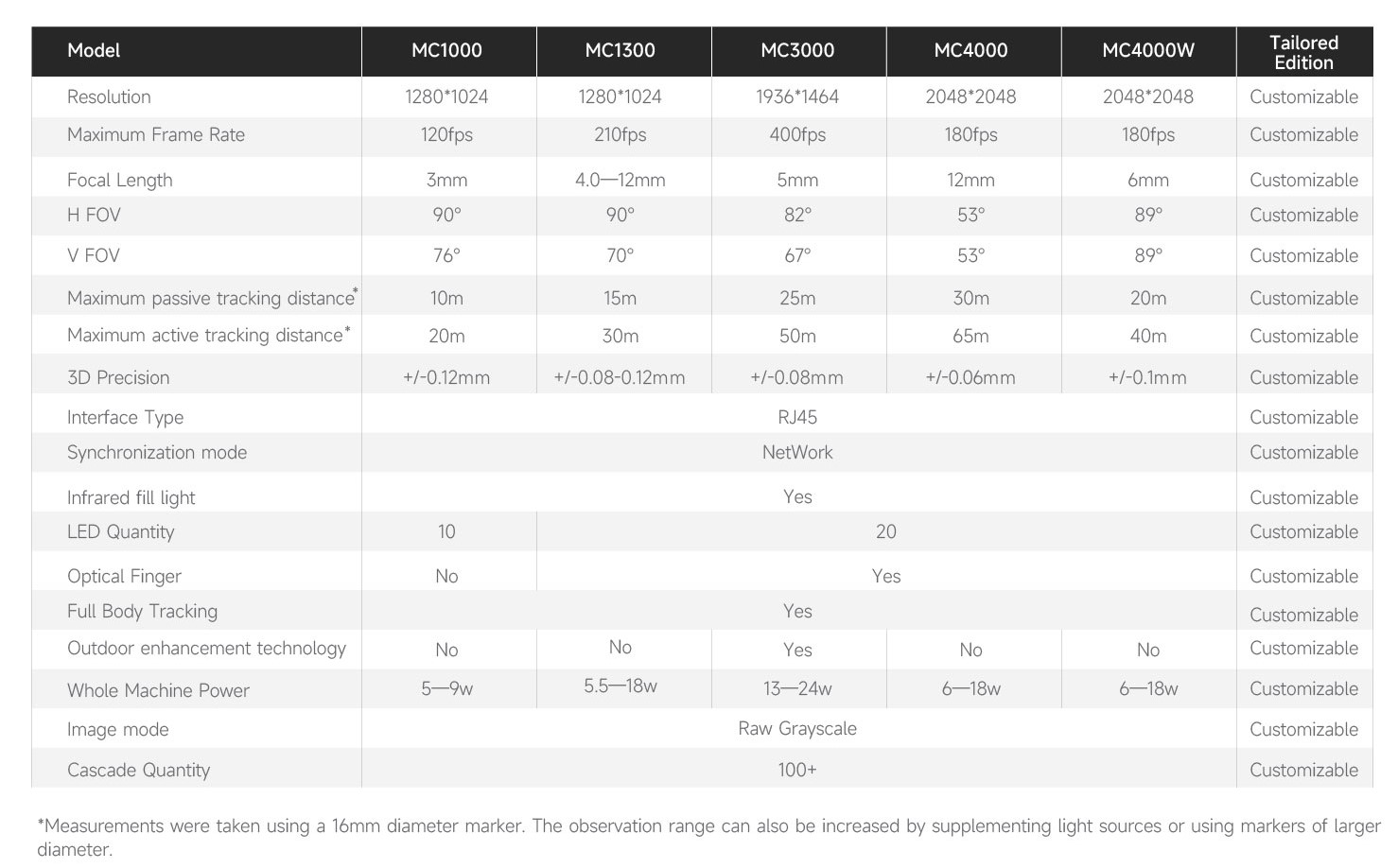

All Cameras
| Model: | MC1000 | MC1300 | MC2000 | MC3000 | MC4000 | MC4000W |
| Focal Length (mm) | 3 | 4.0-12 | 6 | 5 | 12 | 6 |
| Camera Latency (ms) | 8.3 | 4.8 | 2.6 | 2.5 | 5.5 | 5.5 |
| Interface Type | GigE/PoE+ | GigE/PoE+ | GigE/PoE+ | GigE/PoE+ | GigE/PoE+ | GigE/PoE+ |
| Max Frame Rate | 120Hz | 210Hz | 380Hz | 400Hz | 180Hz | 180Hz |
| Synchronous Mode | Network | Network | Network | Network | Network | Network |
| Infrared Fill Light | Yes | Yes | Yes | Yes | Yes | Yes |
| Resolution Ratio | 1280*1024 | 1280*1024 | 2048*1088 | 1936*1464 | 2048*2048 | 2048*2048 |
| Number of LEDs | 10 | 20 | 20 | 20 | 20 | 20 |
| Finger Tracking | No | Yes | Yes | Yes | Yes | Yes |
| Full Body Tracking | Yes | Yes | Yes | Yes | Yes | Yes |
| Vertical Field Of View | 76 | 70 | 49 | 67 | 53 | 89 |
| Horizontal Field Of View | 90 | 90 | 89 | 82 | 53 | 89 |
| Max Power Consumption (w) | 6-10 | 6-18 | 6-18 | 13-24 | 6-18 | 6-18 |
| Image Type | Raw Grayscale, Object | Raw Grayscale, Object | Raw Grayscale, Object | Raw Grayscale, Object | Raw Grayscale, Object | Raw Grayscale, Object |
| Number Of Cascades | 100+ | 100+ | 100+ | 100+ | 100+ | 100+ |
| 3D Accuracy | +/-0.12mm | +/-0.08mm-0.12mm | +/-0.1mm | +/-0.08 | +/-0.06mm | +/-0.1mm |
| Passive Tracking Distance | 10 | 15 | 20 | 25 | 30 | 20 |
| Active Tracking Distance | 20 | 30 | 40 | 50 | 60 | 40 |
*Measured using a 16mm diameter marker. The observation distance can also be increased by supplementing the light source or using a larger diameter marker.
