MC3000
The perfect blend of resolution and field of view, high frame rate, low latency, making it easy to capture high-speed motion.
Extra Large FOV
The unique anti-lens distortion algorithm enables the MC2000 to achieve an FOV of up to 89°X49° at high frame rates and low latency, while maintaining the same accuracy.
Ultra-low Latency
At full resolution, the frame rate can reach up to 380 frames/second, and the delay is as low as 2.6 milliseconds. A higher frame rate brings higher temporal resolution, and motion details cannot be missed.
Intuitive Status Indication
The three-color LED light ring in front of the lens can change different colors and flash frequencies. Thanks to this, the different working status of the camera can be clearly seen even from a long distance.
Powerful on-chip Image Processing Capabilities
Embedded with high-performance FPGA and two 512MB DDR3 chips, dual-core ARM A9, 16MB QSPI, and 4GB on-chip storage, it can perform real-time synchronous analysis of data captured by the sensor during the photo taking process.
Passive Cooling
The large heat sink on the back of the light panel has a closed design and passive heat dissipation, which keeps it away from dust, water and noise interference while maintaining high performance.
Built-in Inertial Sensor
Built-in 9-axis inertial sensor, gyroscope programmable FSR supports up to ±2000 dps, accelerometer programmable FSR supports up to ±16g, 3-axis compass range is wide to ±4900μt, which can effectively monitor camera status in real time.
Mixed use with other cameras
The MC series cameras use a compatible design, thus they can be mixed and used according to actual conditions.
Easy Installation
No POE splitter is needed, and functions such as power supply, data transmission, and synchronization can be completed with one network cable. A single network cable can be up to 100 meters long, and can also be extended through POE switch relays.
Supports synchronization with other devices
MC series cameras can be synchronized with various signals such as VESA, LTC, and GENLOCK with synchronizers, and can also synchronously drive any third-party equipment such as force plates, myoelectrics, and projectors.
Reliable Performance
Reliable performance. Our cameras have passed ROHS, CE, FCC, and VCCI certifications. At the same time, the camera's performance in high and low temperature environments, vibration environments, and humid environments has been certified by professional testing agencies.
- Motion Capture Experts For Every Scene
- ChingMu's MC enterprise-level optical motion capture camera series is suitable for different usage scenarios, industries and environments. Paired with different software customizations, it can help you complete every space motion capture more efficiently, comprehensively and conveniently. A full-stack motion capture solution and a complete after-sales service system relieve your worries.
Continuous calibration in progress
After continuous calibration
6DOF
3D Coordinates
real-time preview
Mainstream software
High-precision tracking performance and deep compatibility adaptation.
It supports rigid body positioning, limb tracking, finger tracking, and 6DOF tracking, providing real-time preview of the 3D spatial coordinates and motion state trajectories of the tracking target. It also supports various protocols such as VRPN, TrackD, DTrack, LiveStream, etc., and is compatible with all mainstream software.
Learn About Our Detailed Parameters
- Resolution
- 1936*1464
- Frame Rate
- 400fps
- Focal Length
- 5mm
- H FOV
- 82°
- V FOV
- 67°
- Maximum passive tracking distance*
- 25m
- Maximum active tracking distance*
- 50m
- 3D Precision
- +/-0.08mm
- Interface Type
- RJ45
- Synchronization Mode
- NetWork
- Infrared Fill Light
- Yes
- LED Quantity
- 20
- Optical Finger
- Yes
- Full Body Tracking
- Yes
- Outdoor Enhancement Technology
- Yes
- Whole Machine Power
- 13-24w
- Image Mode
- Raw Grayscale
- Cascade Quantity
- 100+
*Measured by using a 16mm diameter marker. The observation distance can also be increased by adding light sources or using markers with a larger diameter.

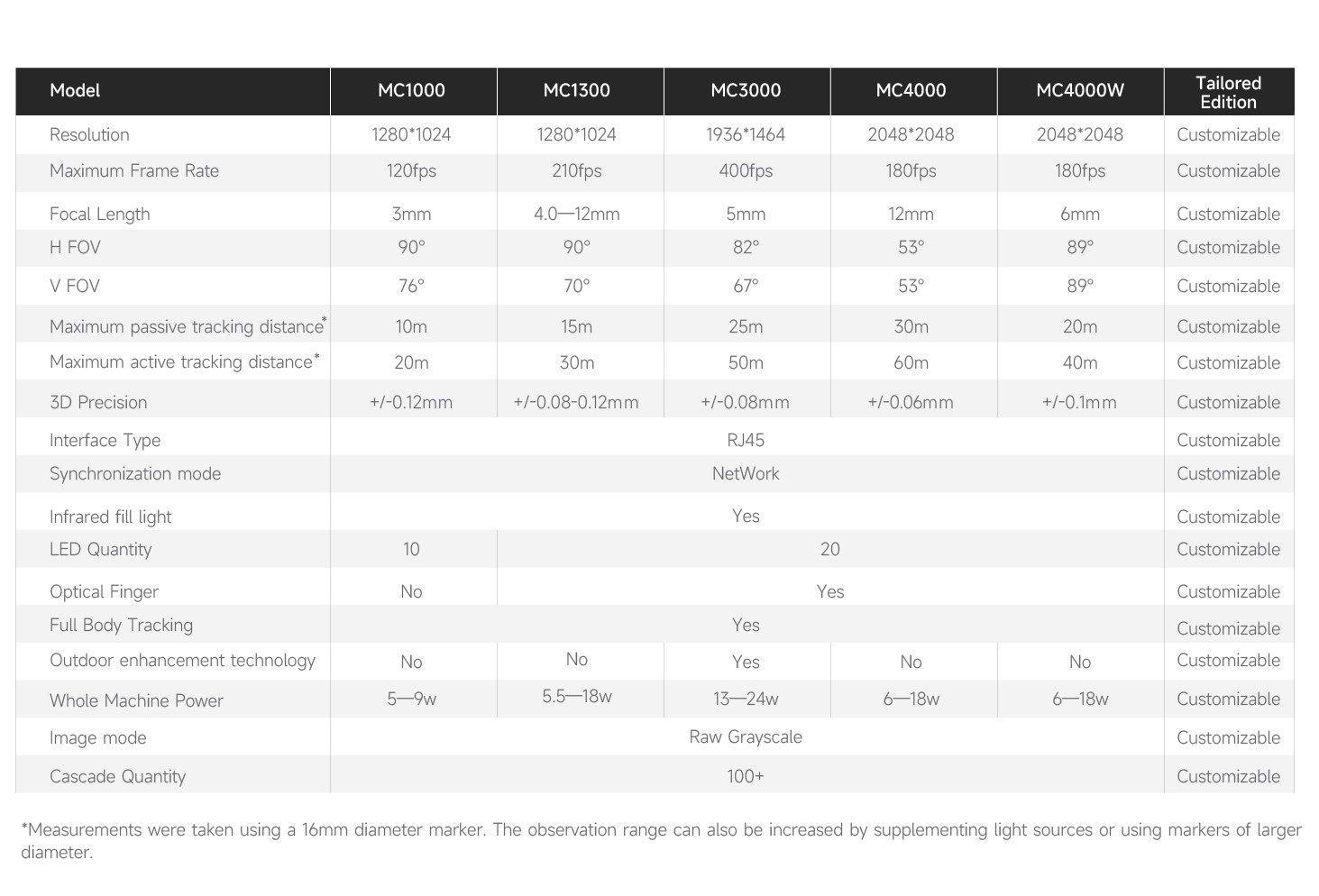

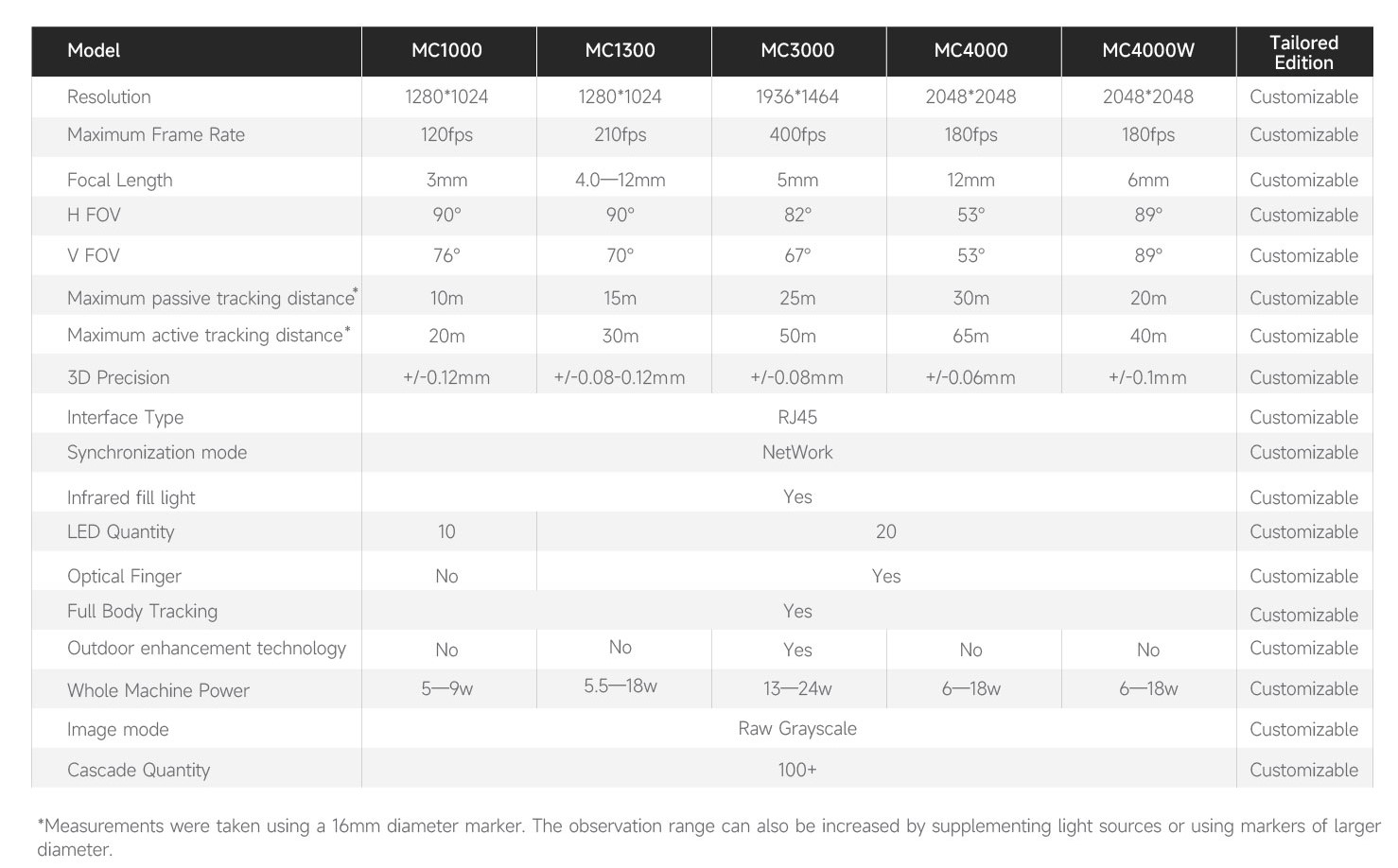

All Cameras
| Parameters | MC1000 | MC1300 | MC2000 | MC3000 | MC4000 | MC4000W |
| Resolution | 1280*1024 | 1280*1024 | 2048*1088 | 1936*1464 | 2048*2048 | 2048*2048 |
| Maximum Frame Rate | 120fps | 210fps | 380fps | 400fps | 180fps | 180fps |
| Focal Length | 3mm | 4.0-12mm | 6mm | 5mm | 12mm | 6mm |
| H FOV | 90° | 90° | 89° | 82° | 53° | 89° |
| V FOV | 76° | 70° | 49° | 67° | 53° | 89° |
| Maximum passive tracking distance | 10m | 15m | 20m | 25m | 30m | 20m |
| Maximum active tracking distance | 20m | 30m | 40m | 50m | 60m | 40m |
| 3D Precision | +/-0.12mm | +/-0.08-0.12mm | +/-0.1mm | +/-0.08mm | +/-0.06mm | +/-0.1mm |
| Interface Type | RJ45 | |||||
| Synchronization mode | NetWork | |||||
| Infrared fill light | Yes | |||||
| LED Quantity | 10 | 20 | ||||
| Optical Finger | No | Yes | ||||
| Full Body Tracking | Yes | |||||
| Outdoor enhancement technology | No | No | No | Yes | No | No |
| Whole Machine Power | 5—9w | 5.5—18w | 6—18w | 13—24w | 6—18w | 6—18w |
| Image mode | Raw Grayscale | |||||
| Cascade Quantity | 100+ | |||||
*Measured using a 16mm diameter marker. The observation distance can also be increased by supplementing the light source or using a larger diameter marker.
